High Precision High Efficiency Micro Spur Gear Reducer DC Motor 5V 6V 12v Dc Gear Motor N20 For Smart Lock

Masing Motor (Shenzhen) Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap High Precision High Efficiency Micro Spur Gear Reducer DC Motor 5V 6V 12v Dc Gear Motor N20 For Smart Lock from wholesalers

    Buy cheap High Precision High Efficiency Micro Spur Gear Reducer DC Motor 5V 6V 12v Dc Gear Motor N20 For Smart Lock from wholesalers
    • Buy cheap High Precision High Efficiency Micro Spur Gear Reducer DC Motor 5V 6V 12v Dc Gear Motor N20 For Smart Lock from wholesalers
    • Buy cheap High Precision High Efficiency Micro Spur Gear Reducer DC Motor 5V 6V 12v Dc Gear Motor N20 For Smart Lock from wholesalers
    • Buy cheap High Precision High Efficiency Micro Spur Gear Reducer DC Motor 5V 6V 12v Dc Gear Motor N20 For Smart Lock from wholesalers
    • Buy cheap High Precision High Efficiency Micro Spur Gear Reducer DC Motor 5V 6V 12v Dc Gear Motor N20 For Smart Lock from wholesalers

    High Precision High Efficiency Micro Spur Gear Reducer DC Motor 5V 6V 12v Dc Gear Motor N20 For Smart Lock

    Ask Lasest Price
    Brand Name : Masing Motor
    Model Number : MS-GM1224N20
    Certification : ROHS CE ISO 16949
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100000piece/per month
    Delivery Time : 3-5 work weeks
    • Product Details
    • Company Profile

    High Precision High Efficiency Micro Spur Gear Reducer DC Motor 5V 6V 12v Dc Gear Motor N20 For Smart Lock

    Title:

    High Precision High Efficiency Micro Spur Gear Reducer DC Motor 5V 6V 12v Dc Gear Motor N20 for Smart Lock

    Micro Spur Gear Reducer DC Motor Description:

    • Factory customization: customized according to demand, high performance, stable and controllable

    • Motor model :MSGM1224N20

    • Gearbox size:φ12*24mm gearbox

    • Gear type :Spur gear

    • Match motor type: FF-N20, FF-N30, FF-N10 permanent magnet DC motors

    • Voltage ranged:DC1.2V-12V

    • Rated Speed :5rpm-3000rpm

    • Rated torque :0.05kgf.cm-2kgf.cm

    • Motor voltage speed torque eccentric wheel size and material can be customized according to customer requirements.

    • Reduction ratio:1:10 ,1:20,1:30,1:50,1:75 ,1:100,1:150,1:210,1:250,1:298, 1:300,1:500,1:1000 or Customized

    • The above gearbox reduction ratio is our compangy's conventional reduction ratio,and the reduction ratiocan be customized

    • Gearbox materail :Copper ,steel ect

    • Direction of motor :CW &CCW available

    • Shaft diameter :φ3mm or others

    • SHAFT TYPES:

      Out shaft standard as follows,also can customerized due to the user drawings

    • Round Type :DIA3mm. 4mm. 5mm D-cut Type: DIA3-D2.5 DIA4-D3 etcScrew Type: M3 M4 M5 Serial

    • Trape Type I-cut Type: DIA3-I2 DIA4-I3 Other Type: Shaft with a hole etc

    • Applications:vacuum cleaner,New energy vehicle charging pile,sweeper radioda,Robot,Locks ,Locker lock,Toys car,Intelligent door locks,mopper,3D printer

    • Meet EU environmental standards: low energy consumption, low noise

    • Accessories:Encoders, gears and other requirements can be configured

    • Quality: With professional equipment, improve the testing process, quality control system

    • Support service :OEM &ODM

    • Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.

    • We can provide sample testing

    • Every product must pass 100% quality inspection before shipment

    Key attributes:

    Rated Speed(RPM)
    5rpm-3000rpm
    Continuous Current(A)
    10mA-300mA
    Gearbox Shaft
    Round,D-cut,Flat,Screw M3,M4 ect
    Warranty
    3Months-1Year
    Place of Origin
    Guangdong, China
    Brand Name
    Masing Motor
    Model Number
    MS-GM1224N20
    Use
    vacuum cleaner,New energy vehicle charging pile,sweeper radioda,Robot,Locks
    Motor Type
    Gear Motor
    Reduction ratio
    1:10-1:1000 Gear ratio or customized
    Construction
    Permanent Magnet
    Motor type
    FF-N10,FF-N20,FF-N30
    Protect Feature
    Exposed Gearbox
    Product Name
    Micro Spur Gear Reducer DC Motor
    Gearbox materials
    customized ,Steel plate or Copper plate
    Certificate
    16949,CE,Rohs,EU,ISO
    Gearbox Size
    φ12mm*24mm
    Weight
    10g
    Noise
    ≤55DB
    MOQ
    1000Pcs
    Life time
    100hours-1000hours
    Shaft type
    Round ,Flat,D-cut,M4,M3,with a hole ect
    Gearse Material
    Copper ,steel ect

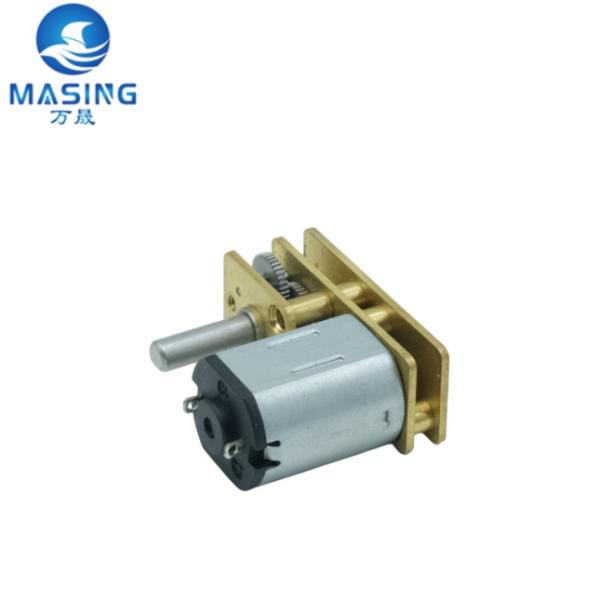

    Micro Spur Gear Reducer DC Motor Photo:

    High Precision High Efficiency Micro Spur Gear Reducer DC Motor 5V 6V 12v Dc Gear Motor N20 For Smart LockHigh Precision High Efficiency Micro Spur Gear Reducer DC Motor 5V 6V 12v Dc Gear Motor N20 For Smart Lock

    High Precision High Efficiency Micro Spur Gear Reducer DC Motor 5V 6V 12v Dc Gear Motor N20 For Smart Lock

    Micro Spur Gear Reducer DC Motor Spec:

    12UN20 DC Spur Gear Motor Typical Applications:

    Robotics and actuator ,Electronic Lock,Toy Car ,Locks,3D Printer,Car, Home Appliance, Cosmetic instrument, SMART HOME, robots,door lock,projector

    Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

    High Precision High Efficiency Micro Spur Gear Reducer DC Motor 5V 6V 12v Dc Gear Motor N20 For Smart Lock

    MODEL VOLTAGE NO-LOAD ATMAXIMUM EFACIENCY STALL TORQUE GEAR
    RADO
    LENGTH OF
    GEAR
    BOX/L)
    MATCH
    THE
    MOTOR
    LENGTH OF
    MOTOR(L1)
    SPEED CURRENT SPEED CURRENT TOROUE TORQUE CURRENT
    V rhmin A min A mNm Kgcm mNm Kgcm A mm mm
    MS-12FN20-11 5 1854 0.054 1468 0.20 3.0 0.03 6.0 0.05 0.74 11 9 N20 15
    MS-12FN20-37 5 554 0.050 436 0.22 10.0 0.10 24.2 0.25 0.74 37 9 N20 15
    MS-12FN2060 5 410 0.050 323 0.22 13.6 0.14 27.2 0.28 0.74 50 9 N20 15
    MS-12FN20-97 5 211 0.060 166 0.22 26.3 0.27 52.8 0.54 0.74 97 9 N20 15
    MS-12FN20-117 5 175 0.058 138 0.25 31.8 0.32 63.6 0.65 0.74 117 9 N20 15
    MS-12FN20-150 5 137 0.058 108 0.25 40.7 0.42 81.6 0.83 0.74 150 9 N20 15

    Packaging and delivery:

    Packaging Details
    Strong Carton 1000pcs/box, or as you wish.
    Port
    Shenzhen/Guangzhou/Shanghai
    Selling Units:
    Single item
    Single package size:
    12X10X24mm
    Single gross weight:
    0.01kg

    Supply Ability:

    Supply Ability
    100000 Piece/Pieces per Month

    Lead time:

    Quantity (pieces) 1 - 100 101 - 1000 > 1000
    Lead time (days) 10 15 To be negotiated

    Samples:

    Maximum order quantity: 1piece
    Sample price:

    $5/piece

    Certifications:

    High Precision High Efficiency Micro Spur Gear Reducer DC Motor 5V 6V 12v Dc Gear Motor N20 For Smart Lock

    Factory Show:

    High Precision High Efficiency Micro Spur Gear Reducer DC Motor 5V 6V 12v Dc Gear Motor N20 For Smart Lock

    Product Classification:

    High Precision High Efficiency Micro Spur Gear Reducer DC Motor 5V 6V 12v Dc Gear Motor N20 For Smart Lock

    Applications:

    Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

    5G communication,Smart home,vacuum cleaner,New energy vehicle charging pile,sweeper radioda,Robot,Locks ,Locker lock,Toys car,Intelligent door locks,mopper,3D printer

    High Precision High Efficiency Micro Spur Gear Reducer DC Motor 5V 6V 12v Dc Gear Motor N20 For Smart Lock

    FAQ
    Q1:How can i get the price?

    A1:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

    Q2: Can I buy samples placing orders?
    A2: Yes.Please feel free to contact us.

    Q3: What is your lead time?
    A3: It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.

    Q4:How do you make our business long-term and good relationship?

    A4: a. We keep good quality and competitive price to ensure our customers benefit ; b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

    Q5:What is your terms of packing?
    A5: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

    Q6: How long is the producing and shipping?

    A6.The delivery time depends on the quantity you purchase. Normal purchase order delivery time is 25-35 days.
