Masing Motor (Shenzhen) Co., Ltd
1 Years
| Ask Lasest Price | |
| Brand Name : | Masing Motor |
| Model Number : | MS-GM12N20 |
| Certification : | ROHS ,CE, ISO,16949 |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 100000piece/per month |
| Delivery Time : | 3-5 work weeks |
Title:
Low RPM 12mm N20 High Torque Mirco Brushed Geared Motor 2.4V 5V 6V 12V Mini DC Motor For Electric Vehicle
Description:
Rated voltage :DC1.2V-12V
The motor speed is proportional to the motor voltage.
Rated speed :3000rpm-25000rpm
Motor Size:φ12mm*L15mm
Rated torque :0.05kgf.cm-2kgf.cm,The torque of the motor is nronortional to the speed of the motor
Gearbox:φ12*9mm gearbox with N20, N30, N10 permanent magnet DC motors
Meet EU environmental standards: low energy consumption, low noise
Shaft diameter :φ3mm,φ4mm or Customized
Direction of motor:CW &CCW
Encoders, gears and other requirements can be configured
Reduction ratio:1:10 ,1:20,1:30,1:50,1:75 ,1:100,1:150,1:210,1:250,1:298, 1:300,1:500,1:1000
The above gearbox reduction ratio is our compangy's conventional reduction ratio,and the reduction ratiocan be customized
Quality: With professional equipment, improve the testing process, quality control system
Motor voltage speed torque eccentric wheel size and material can be customized according to customerrequirements.
Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.
SHAFT TYPES:
Out shaft standard as follows,also can customerized due to the user drawings
welcome to contact customer service for more types
Round Type :DIA3mm. 4mm. 5mm
D-cut Type: DIA3-D2.5 DIA4-D3 etc
Screw Type: M3 M4 M5 Serial
Trape Type I-cut Type: DIA3-I2 DIA4-I3
Other Type: Shaft with a hole etc
Free sample testing can be provided
Every product must pass the inspection before leaving the factory

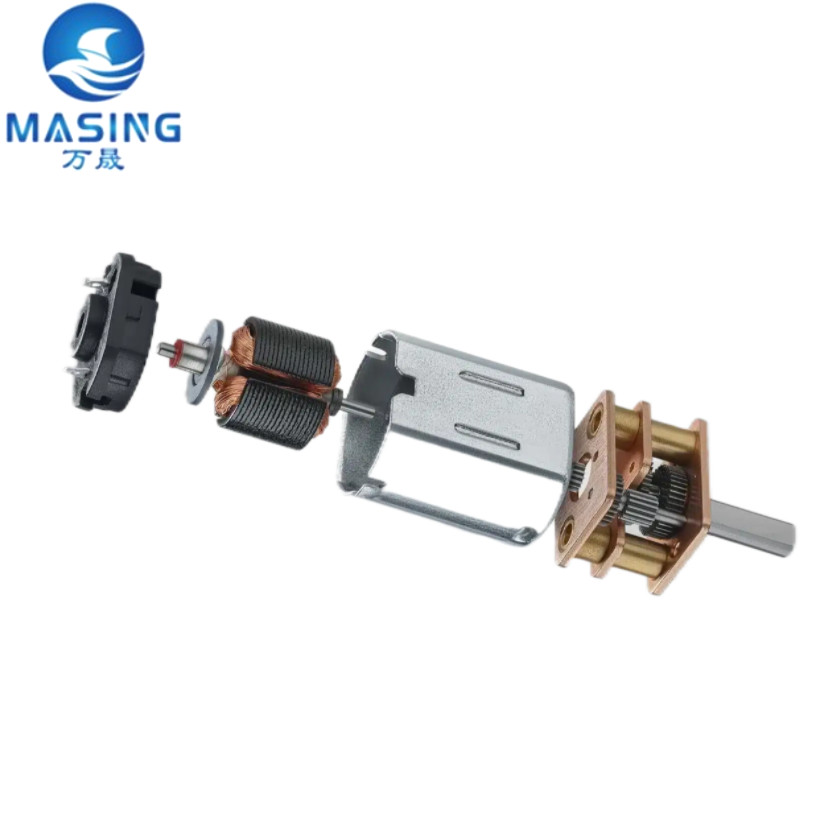

Product Photo:
Product Spec:
N20 Gear Motor Typical Applications:
Car, Home Appliance, Cosmetic instrument, SMART HOME, robots,door lock,projector
Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$10/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,
5G communication,Smart home
Q1:How can I know the product is suitable for me?
A1.You provide us the more details information about the product.We will recommend theitem to you according to your detail parameters.After you confirm,we will prepare thesamples to you.Also we will offer some good advances according to your product use.
Q2:Can you produce the product same as our sample?
A2: Yes,we can.As long as your give us the product detail size and specific requirement.We are absolutely to make the same product and send to you for approval.
Q3. How is it the cost for sample?
A3:The sample are free,but Considering that there have many customer need us to send sample,so we need you to pay the freight fee
Q4: How long will you finish the sample?
A4: .About 5-7 days to finish the sample base on your request.
|
|
