37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed

Masing Motor (Shenzhen) Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed from wholesalers

    Buy cheap 37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed from wholesalers
    • Buy cheap 37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed from wholesalers
    • Buy cheap 37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed from wholesalers
    • Buy cheap 37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed from wholesalers
    • Buy cheap 37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed from wholesalers

    37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed

    Ask Lasest Price
    Brand Name : Masing Motor
    Model Number : MS-GM37B500
    Certification : ROHS,CE,ISO,16949
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100000piece/per month
    Delivery Time : 3-5 work weeks
    • Product Details
    • Company Profile

    37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed

    Title:

    37mm Gearbox Metal Gear Motor GM37-500 High Torque Motor DC 12V Geared Motor Low-speed for Smart home,Smart toilet seat

    Description:

    • Rated Speed: 2rpm to 3000rpm or Can be Customized

    • Voltage:DC Input 3v,6v,9v,12v,24v,36v,48v (Can be Customized)

    • Gearbox Shaft Dimater: φ 6mm
      Gearbox Shaft type: M5/M6/Bare /D-Cut /Double D-Cut /Pin Hole /Keyway shaft (Can be Customized)

    • High Efficiency and Performance: 1.5V- 12V DC Spur Geared Motor offers an efficiency of 85%-55%,

    • Accessories:Wires, Connectors, Gearbox, Encoder, Brake, Cool Fan, etc (Optional)

    • Gear material:Metal ,Plastic ,Powder metallurgy,Copper ect
    • Gearbox diameter :φ32mm
    • Rated Torque :0.1kgf.cm-30kgf.cm
    • Direction of Rotation:CW&CCW available
    • We can provide free sample testing
    • Every product has to pass quality inspection

    Key attributes:

    Speed(RPM)
    3rpm-3000rpm
    Continuous Current(A)
    50mA-800mA
    Efficiency
    55%-85%
    Warranty
    Others
    Place of Origin
    Guangdong, China
    Brand Name
    Masing Motor
    Model Number
    MS-GM37B500
    Use
    Smart home,Smart toilet seat,Home Appliance, robot,vending machine, medcial device
    Type
    12v micro dc gear motor
    Torque
    0.1kgf.cm-30kgf.cm
    Construction
    Permanent Magnet
    Commutation
    Brush
    Protect Feature
    Totally Enclosed
    Direction of Rotation
    CW&CCW
    Gearbox Material
    Metal gearbox
    Keywords
    Micro 12v gear motor
    Gearbox length
    21mm to 29mm
    Gearbox diameter
    37mm
    Gearbox ratio
    1:5 to 1:1000
    MOQ
    1000Pcs
    Shaft
    M5/M6/D-cut or Round or Flat or with a hole (Customer's Request)
    Shaft Material
    Carbon Steel or Stainless Steel
    Certification
    CE.ROHS,ISO,16949

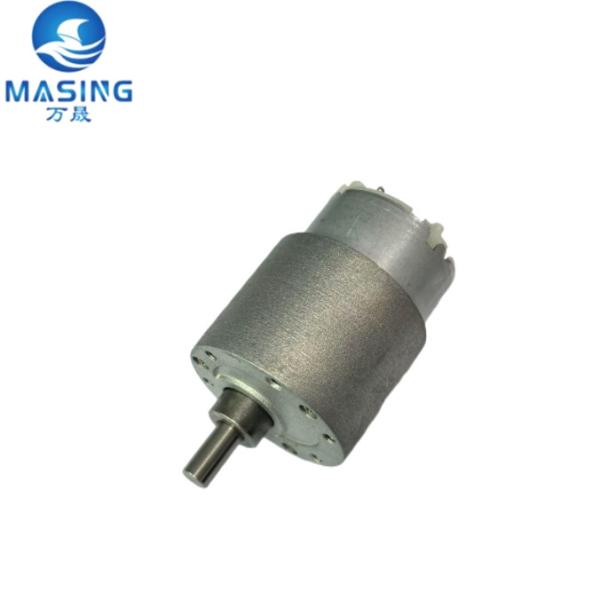

    Product Photo:37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed

    37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed

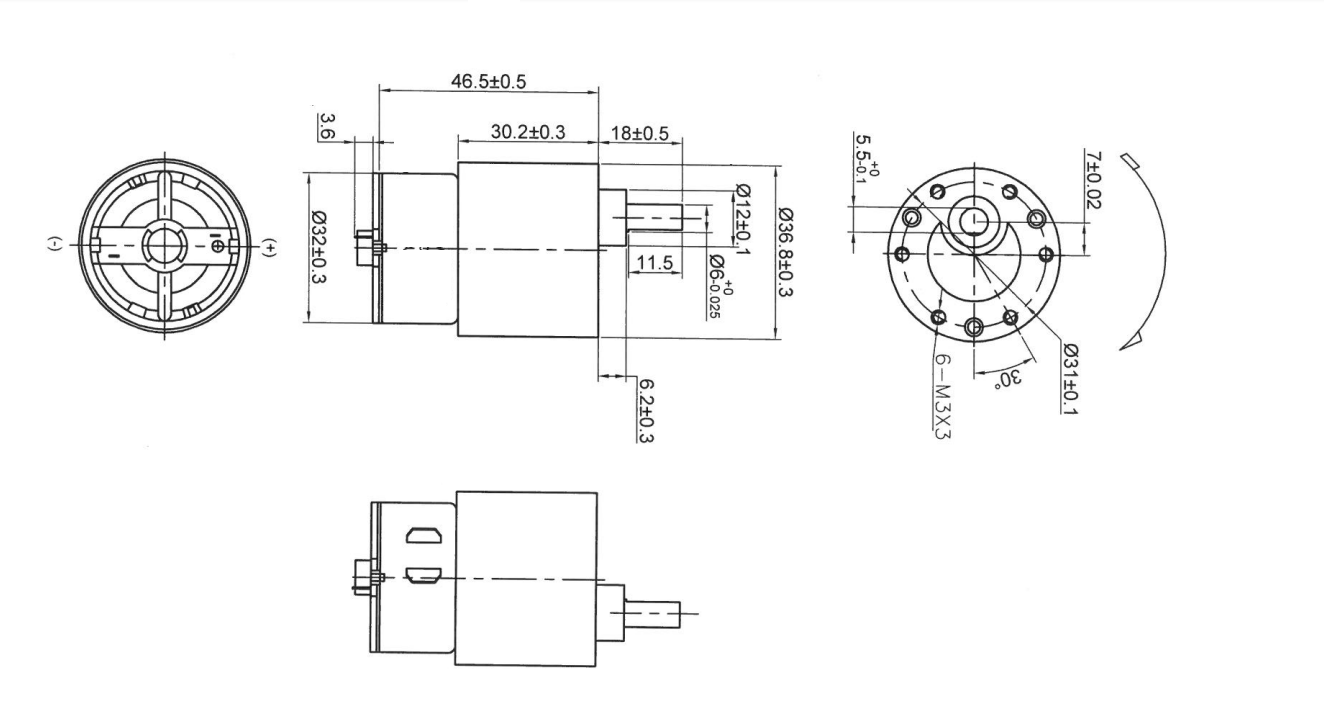

    Product Spec:

    MS-GM37B500 12V/24V DC Spur Gear Motor Typical Applications:

    Smart home,Smart toilet seat,Home Appliance, robot,vending machine, medcial device

    Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

    37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed

    37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed

    Packaging and delivery:

    Packaging Details
    Strong Carton 80pcs/box, or as you wish.
    Port
    Shenzhen/Guangzhou/Shanghai
    Selling Units:
    Single item
    Single package size:
    37X27X24cm
    Single gross weight:
    About 130-160g

    Supply Ability:

    Supply Ability
    100000 Piece/Pieces per Month

    Lead time:

    Quantity (pieces) 1 - 100 101 - 1000 > 1000
    Lead time (days) 10 15 To be negotiated

    Samples:

    Maximum order quantity: 1piece
    Sample price:

    $10/piece

    Certifications:

    37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed

    Factory Show:

    37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed

    Product Classification:

    37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed

    Applications:

    Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

    5G communication,Smart home,Automatic door operators, automatic energy saving bath, electrical controlled valve,

    robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.

    37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed

    FAQ
    Q1: What is the advantage about your company?
    A1: a.Advanced manufacturing equipment b.More than 15years motor design,manufacturing experience

    c.Flexible customization of OEM/ODM orders d.Advanced automated production equipment

    e.ISO9001,ISO14001,TS16949 system certification
    Q2: Why should I choose your products?
    A2: Our products are high quality and low price
    Q3:The logo and the color can be customized?
    A3: Yes, we welcome you to sample custom.
    Q4: Any other good service your company can provide?
    A4: Yes,we can provide good after-sale and fast delivery.

    Q5: Can you provide OEM or ODM service?
    A5: Yes, OEM and ODM are both welcomed.
    Q6:What kind of data do i neet to provide if i want to order?
    A6: Please kindly tell us your rated voltage, no load speed, load speed, load torque and overall dimension.

    Q7:What if i don't know the above data?
    A7: Please contact our salesman to handle,we'll answer your questions patiently.
