    High Torque 60 Rpm 12V DC Geared Motor For Rotating Visualizer Robotic

    Ask Lasest Price
    Brand Name : Masing Motor
    Model Number : MS32C310
    Certification : ROHS CE ISO
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100000piece/per month
    Delivery Time : 3-5 work weeks
    • Product Details
    • Company Profile

    High Torque 60 Rpm 12V DC Geared Motor For Rotating Visualizer Robotic

    Title:

    Dc Gear Motor 12v Dc Motor High Torque 60 Rpm Dc Gear Motor For Rotating Visualizer Robotic

    Description:

    • Gearbox:12*24mm gearbox with RF-300CA,RF-310TA permanent magnet DC motors

    • Voltage :1.2v-24v

    • Reduction ratio:Customized

    • The motor speed is proportional to the motor voltage.

    • The above gearbox reduction ratio is our compangy's conventional reduction ratio,and the reduction ratiocan be customized

    • Applications:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company, Litter Robot/ Pet Food Dispense/Automatic Cat Food, Rotating Visualizer

    • Factory customization: customized according to demand, high performance, stable and controllable

    • Meet EU environmental standards: low energy consumption, low noise

    • Encoders, gears and other requirements can be configured

    • Quality: With professional equipment, improve the testing process, quality control system

    • Motor voltage speed torque eccentric wheel size and material can be customized according to customerrequirements.

    • The toraue of the motor is nronortional to the speed of the motor

    • Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.

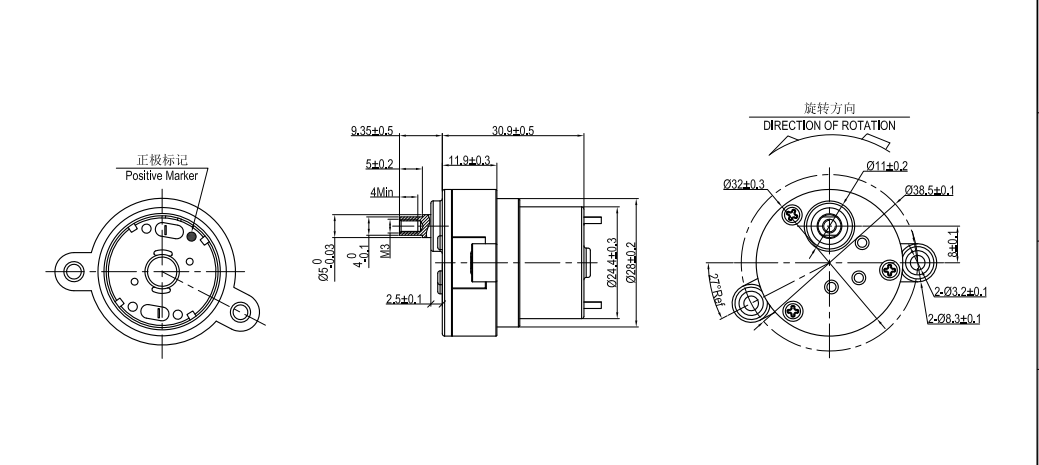

    • SHAFT TYPES:

      Out shaft standard as follows,also can customerized due to the user drawings

    Key attributes:

    Speed(RPM)
    2rpm-500rpm
    Continuous Current(A)
    10-200mA
    Gearbox Shaft
    Customized
    Warranty
    3months-1year
    Place of Origin
    Guangdong, China
    Brand Name
    Masing Motor
    Model Number
    MS32C310
    Use
    Smart home / automatic valve/ Automation equipment,Robots
    Type
    12volt dc gear motor
    Gear Ratio
    Customized
    Construction
    Permanent Magnet
    Commutation
    Brushed rf-300ca
    Protect Feature
    Exposed Gearbox
    Product Name
    6volt gear reduction motor
    Gear box
    Customized
    Certificate
    CE,Rohs,EU,ISO
    Gearbox Size
    32mm
    Weight
    60g
    Noise
    ≤55DB
    MOQ
    1000Pcs
    Life time
    100hours-1000hours
    Color
    Customer's Request
    Motor type
    3volt small geared motor

    Product Photo:

    High Torque 60 Rpm 12V DC Geared Motor For Rotating Visualizer RoboticHigh Torque 60 Rpm 12V DC Geared Motor For Rotating Visualizer Robotic

    High Torque 60 Rpm 12V DC Geared Motor For Rotating Visualizer Robotic

    Product Spec:

    32mm Plastic Gearbox DC Spur Gear Motor Typical Applications:

    Smart home / automatic valve/ Automation equipment,Robots ,Car, Home Appliance, Cosmetic instrument, SMART HOME, robots,door lock,projector

    Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

    High Torque 60 Rpm 12V DC Geared Motor For Rotating Visualizer Robotic

    High Torque 60 Rpm 12V DC Geared Motor For Rotating Visualizer Robotic

    Packaging and delivery:

    Packaging Details
    Strong Carton 1000pcs/box, or as you wish.
    Port
    Shenzhen/Guangzhou/Shanghai
    Selling Units:
    Single item
    Single package size:
    12X10X24mm
    Single gross weight:
    0.060kg

    Supply Ability:

    Supply Ability
    100000 Piece/Pieces per Month

    Lead time:

    Quantity (pieces) 1 - 100 101 - 1000 > 1000
    Lead time (days) 10 15 To be negotiated

    Samples:

    Maximum order quantity: 1piece
    Sample price:

    $5/piece

    Certifications:

    High Torque 60 Rpm 12V DC Geared Motor For Rotating Visualizer Robotic

    Factory Show:

    High Torque 60 Rpm 12V DC Geared Motor For Rotating Visualizer Robotic

    Product Classification:

    High Torque 60 Rpm 12V DC Geared Motor For Rotating Visualizer Robotic

    Applications:

    Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

    5G communication,Smart home

    High Torque 60 Rpm 12V DC Geared Motor For Rotating Visualizer Robotic

    FAQ

    Q1. What is the advantage about your company?

    A1. a.Advanced manufacturing equipment b.More than 15years motor design,manufacturing experience

    c.Flexible customization of OEM/ODM orders d.Advanced automated production equipment

    e.ISO9001,ISO14001,TS16949 system certification

    Q2: What is your guarantee for the products?
    A2: We can offer the technical support and spare parts for the repair if any quality problems, and will follow the problems until you are satisfied.

    Q3: Can I visit your company?

    A3:Yes, welcome to visit our company, but please let us know at least two weeks in advance to help us make sure no other meetings during the day you visit us.

    Q4: How about the quality of products in your company?

    A4;We have high and best quality products and our products get some good feedbacks from clients over the world. Once you got our peoducts with some questions under guarantee, we will provide helps at first time. at the usual time we keep our records about products complaints as low as 1%.

    Q5:What kind of data do i neet to provide if i want to order?
    A5: Please kindly tell us your rated voltage, no load speed, load speed, load torque and overall dimension.

    Q6:How can I know the product is suitable for me?

    A6.You provide us the more details information about the product.We will recommend theitem to you according to your detail parameters.After you confirm,we will prepare thesamples to you.Also we will offer some good advances according to your product use.
