Masing Motor (Shenzhen) Co., Ltd
1 Years
| Ask Lasest Price | |
| Brand Name : | Masing Motor |
| Model Number : | MSGM37B528 |
| Certification : | 16949,ISO,RoHS,CE |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 100000piece/per month |
| Delivery Time : | 3-5 work weeks |
Title:
37mm Diameter 12v 24v Metal Gearbox 6 volt Dc Gear Motor High Torque Low Speed For Robot Vending Machine
Description:
Factory customization: customized according to demand, high performance, stable and controllable
Rated Voltage:DC3v-24v Customized
Rated Speed:2rpm-3000rpm Customized
Power:0.1W-30W Customized
Gearbox diameter :Ø37mm Gearbox material :Rohs Metal Gear box
Gear Reduction ratio:Customized 1:10-1:1006
Match Motor Type: RF-500,RF-520,RF-528,RS-385/380.RS-365/360.RS-390 ,RS-395,RS-540,RS-545,RS-550,RS-555 permanent magnet DC brushed motors
Bearing at output:Oil bearing ,Ball bearing ,Sleeve bearing
Accessories:Wires, Connectors, Gearbox, Encoder, Brake, Cool Fan, etc (Optional)
Shaft size :Ø6mm,Ø7mm Customized
Shaft type: Flat,M6,Threaded hole,Bare /D-Cut /Double D-Cut /Pin Hole /Keyway shaft (Can be Customized)
Shaft Material:Carbon Steel or Stainless Steel
Meet EU environmental standards: low energy consumption, low noise
Use:Home Appliance, robot,vending machine, medcial device,Robots, home appliances, vending machines, paper feeders, tissue kneaders, automation equipment
Quality: With professional equipment, improve the testing process, quality control system
Durable Construction: The motor's drip-proof design and permanent magnet construction ensure long-lasting performance and resistance to water and dust, making it ideal for use in harsh environments.
Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.

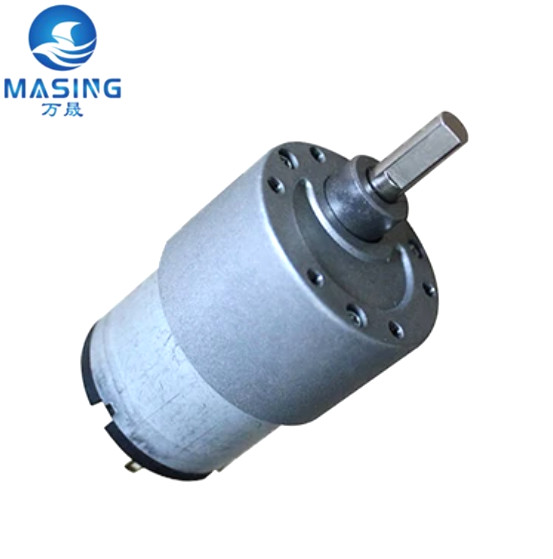

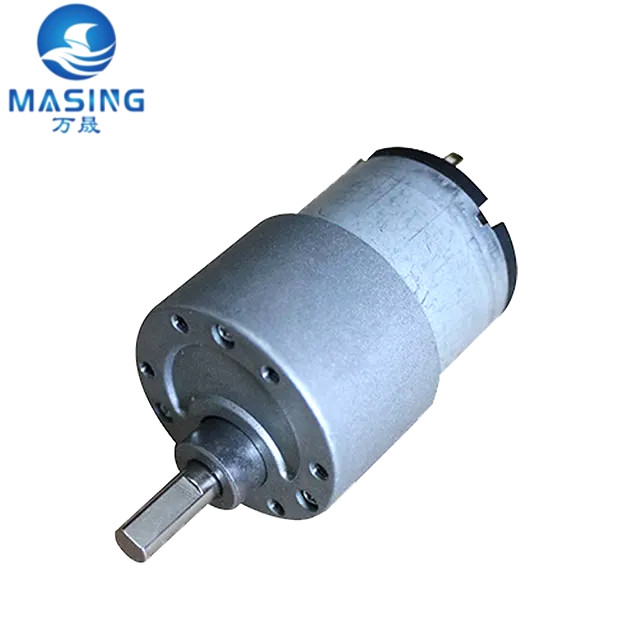

Product Photo:
Product Spec:
37mm Gearbox DC Spur Metal Geared Motor Typical Applications:
Robots, home appliances, vending machines, paper feeders, tissue kneaders, automation equipment
Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.
| Gear ratio iand length L of motor | |||||
| Number of stages | 2 | 3 | 4 | 5 | 6 |
| Gear ratio i | 6 | 16.7 | 45 | 110 | 330 |
| 10 | 23.3 | 50 | 121 | 350 | |
| 30 | 60 | 135 | 405 | ||
| 70 | 150 | 420 | |||
| 90 | 180 | 450 | |||
| 100 | 210 | 490 | |||
| 250 | 540 | ||||
| 270 | 630 | ||||
| 300 | 810 | ||||
| Leng th of gearbox L(mm) | 19 | 21.5 | 24 | 26.5 | 29 |
| SPECIFICATIONS: | |||||||||
MODEL | Voltage V | NO LOAD | RATED LOAD | STALL | |||||
SPEED rpm | CURRENT A | SPEED rpm | CURRENT A | TORQUE Nm | OUTPUT W | TORQUE Nm | CURRENT A | ||
| 37GB-528B-10 | 6 | 580 | 0.25 | 470 | 0.6 | 0.029 | 1.45 | 0.147 | 2.2 |
| 37GB-528B-30 | 6 | 193 | 0.25 | 156 | 0.6 | 0.88 | 1.44 | 0.44 | 2.2 |
| 37GB-528B-50 | 6 | 116 | 0.25 | 94 | 0.6 | 0.13 | 1.35 | 0.65 | 2.2 |
| 37GB-528B-70 | 12 | 117 | 0.2 | 94 | 0.75 | 0.38 | 3.76 | 1.85 | 3.2 |
| 37GB-528B-90 | 12 | 90 | 0.2 | 73 | 0.758 | 0.49 | 3.74 | 2.45 | 3.2 |
| 37GB-528B-150 | 12 | 40 | 0.15 | 32 | 0.55 | 0.49 | 1.64 | 2.6 | 2.5 |
| 37GB-528B-180 | 12 | 33 | 0.15 | 26.5 | 0.55 | 0.63 | 1.76 | 3.13 | 2.5 |
| 37GB-528B-210 | 12 | 28.5 | 0.15 | 22.5 | 0.55 | 0.73 | 1.73 | 3.7 | 2.5 |
| 37GB-528B-270 | 6 | 21 | 0.25 | 17 | 0.6 | 0.63 | 1.13 | 3.3 | 2.2 |
| 37GB-528B-490 | 6 | 11.5 | 0.25 | 9.5 | 0.6 | 1.07 | 1.07 | 5.8 | 2.2 |
| 37GB-528B-630 | 6 | 9 | 0.25 | 7 | 0.6 | 1.37 | 1.0 | 6 | 2.2 |
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$5/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,
5G communication,Robots, home appliances, vending machines, paper feeders, tissue kneaders, automation equipment
Electric curtains,Safe / Locker,Bean Mill.Coffee Machine,Smart Door Locks,Floor sweeper.
Q1.Can I have samples for testing first?
A1:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
Q3: How do you make sure motor quality?
A3: Always a pre-production sample before mass production;Always final Inspection before shipment
Q4:What's the minimum order quantity?
A4:Our minimum order quantity depends on different motor models, please email us to check. Also, we usually do not accept personal use of motor orders.
Q5: What certifications do you have for motors?
A5: We currently haveISO,16949,CE and ROSH certifications for motors.
Q6:Do you have a customized service for your standard motors?
A6: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q7:Can I visit your company?
A7: Yes, welcome to visit our company, but please let us know at least two weeks in advance to help us make sure no other meetings during the day you visit us.
|
|
