Masing Motor (Shenzhen) Co., Ltd
1 Years
| Ask Lasest Price | |
| Brand Name : | Masing Motor |
| Model Number : | MS-GM37B385 |
| Certification : | ROHS,CE,ISO，16949 |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 100000piece/per month |
| Delivery Time : | 3-5 work weeks |
Title:
Rs-385 Rs-395 Dc Motor With 37mm Gearbox Dc 12v Gear Motor High Torque Brushed Gear Motor
Description:
High Efficiency and Performance: 6V- 24V DC Spur Geared Motor offers an efficiency of 50%-75%
Rated voltage:DC 6volt-24volt
Rated Speed:2rpm -3000rpm
Shaft diameter :φ6mm
Shaft type: Bare /D-Cut /Double D-Cut /Pin Hole /Keyway shaft (Can be Customized)
Gearbox diameter :φ37mm
Gearbox material:Metal gearbox
Accessories:Wires, Connectors, Gearbox, Encoder, Brake, Cool Fan, etc
Gears material :Powder metallurgy,Copper ,Steel ,plastic etc
Direction of motor :CW &CCW
Low Noise and High Torque: With a torque of 0.1kgf-30kgf.cm, this motor operates at a low noise level, making it suitable for applications requiring minimal noise pollution, such as fan and cosmetic instrument use.
Motor type :Carton Brush Motor
Customizable Options: We offer various diameter options and a color that can be customized according to the user's request, allowing for flexibility in design and integration.
Durable and Long-Lasting: The motor's totally enclosed design provides protection from external factors, while the permanent magnet construction ensures a long lifespan and reliable operation.
We can provide samples for testing.

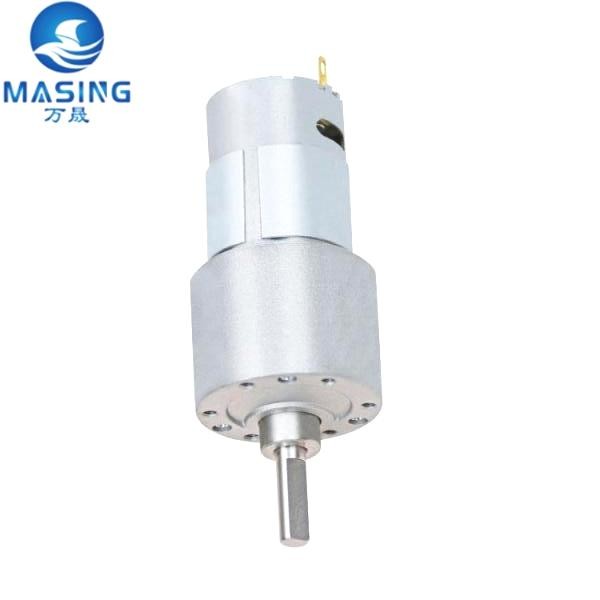

Product Photo:

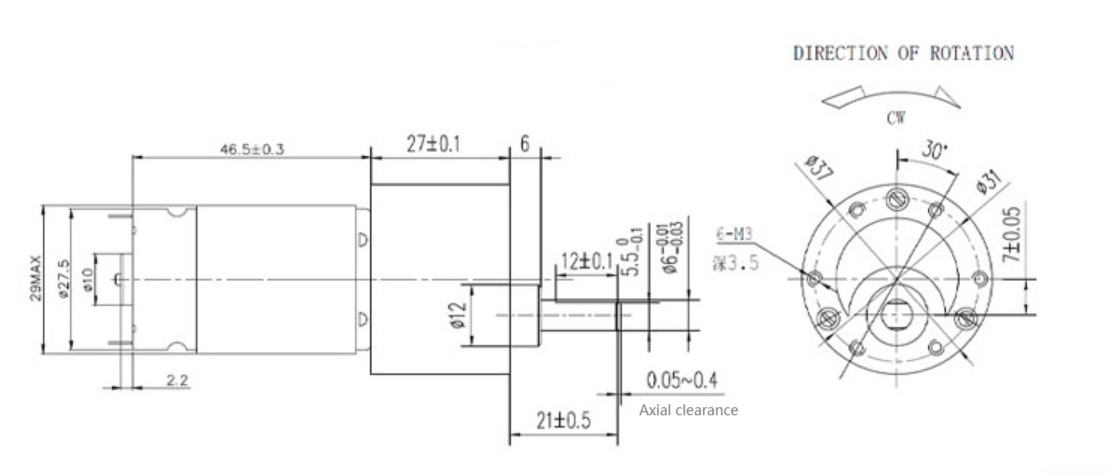

Product Spec:
MSGM37B385 DC Spur Gear Motor Typical Applications:
Automatic equipment,Lawn mower,Electric curtain,Home Appliance, robot,vending machine, medcial device
Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.
| Motor(No-load) | Gear Motor(No-load) | Gear Motor(No-load) | Maximum Efficiency | Gear Motor Noise | Stall | ||||||||||
| Current(A) MAX | Speed rpm±12% | Torque kg.cm | Motor Size mm | Gear Ratio (k:1) | Gearbox Size mm | Current(A) MAX | Speed rpm±12% | Current(A) MAX | Speed rpm±12% | Torque kg.cm | Out Power W | Power % | Distance 10cm | Current(A) MAX | Torque kg.cm |
| 0.1 | 8000 | 0.165 | 38 | 10 | 16.8 | 0.3 | 800.0 | 1.2 | 560.0 | 1.0 | 28.8 | 55 | 65dB | 6 | 2.9 |
| 0.1 | 8000 | 0.165 | 38 | 30 | 20.2 | 0.15 | 266.7 | 0.6 | 213.3 | 2.9 | 14.4 | 55 | 65dB | 3 | 8.6 |
| 0.1 | 8000 | 0.165 | 38 | 50 | 20.2 | 0.3 | 160.0 | 1.2 | 128.0 | 4.8 | 28.8 | 55 | 65dB | 6 | 14.4 |
| 0.1 | 8000 | 0.165 | 38 | 90 | 20.2 | 0.3 | 88.9 | 1.2 | 71.1 | 8.6 | 28.8 | 55 | 58dB | 6 | 25.8 |
| 0.1 | 8000 | p.165 | 38 | 150 | 20.2 | 0.3 | 53.3 | 1.2 | 42.7 | 14.4 | 28.8 | 55 | 58dB | 6 | 43.1 |
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$10/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,
5G communication,Smart home,Automatic door operators, automatic energy saving bath, electrical controlled valve,
robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Q1: How to order?
A1: Send us inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production→Cargo ready → Balance/delivery → Further cooperation.
Q2: What's the price?
A2:We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.
Q3: What's the MOQ?
A3: We try to meet every client's requests and don't want to disappoint our clients.So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it
Q4: What's the delivery time?
A4: At the first we have an schedule,the earlier you place order,the fater we finish the production.
In the slack season,we can make sure the delivery time is by one month.
In the busy season,we need more than one month if your quantity is large.
The most important,we can provide free overtime prodution if your order is really urgent.
Q5: Can you make our logo on the products?
A5: Certainly,logo is easy as most of our products are customizable.So logo in usually logo is necessary.It can be labeled on the motors.
Q6:What kind of data do i neet to provide if i want to order?
A6: Please kindly tell us your rated voltage, no load speed, load speed, load torque and overall dimension.
Q7:What if i don't know the above data?
A7: Please contact our salesman to handle,we'll answer your questions patiently.
|
|
