Title:
25mm Diameter Gearbox With RF-370 Brushed DC Motor 370 Gear Motor Low Rpm With High Torque
Description:
Model: GM25-370 micro metal gearmotor
Gearbox: 25 mm metal spur gear reducer
Voltage range:DC3v-24v
Speed:2rpm-1500rpm Customized
Power:0.1W-10W Customized
Gearbox diameter :Ø25mm Gearbox material :Metal Gear box
Size : Φ25mm * L TBD
Reduction ratio:Customized 1:10-1:1000
Commutation: Carbon brush/Graphite brush/Metal brush;
Match Motor : RF-300,RF-310,RF-370,RS-385.RS-365.RS-390 permanent magnet DC brushed motors
Bearing At Output:Ball bearing / Sleeve bearing/Oil bearing
Encoder : magnetic encoder
Accessories:Wires, Connectors, Gearbox, Encoder, Brake, Cool Fan, etc (Optional)
Shaft size :Φ4mm D-cut 0.5mm Customized
Shaft type: Bare /D-Cut /Double D-Cut /Pin Hole /Keyway shaft (Can be Customized)
Shaft Material:Carbon Steel or Stainless Steel
Meet EU environmental standards: low energy consumption, low noise
Use:Textile machine,Smart garbage clamshell,Smart lock, electric valve, smart car, storage box, advertising equipment, electronic game console, shared charging pile, shredding machine,Home Appliance, robot,vending machine, medcial device
Factory customization: customized according to demand, high performance, stable and controllable
Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.
Quality: With professional equipment, improve the testing process, quality control system
Samples can be provided for testing

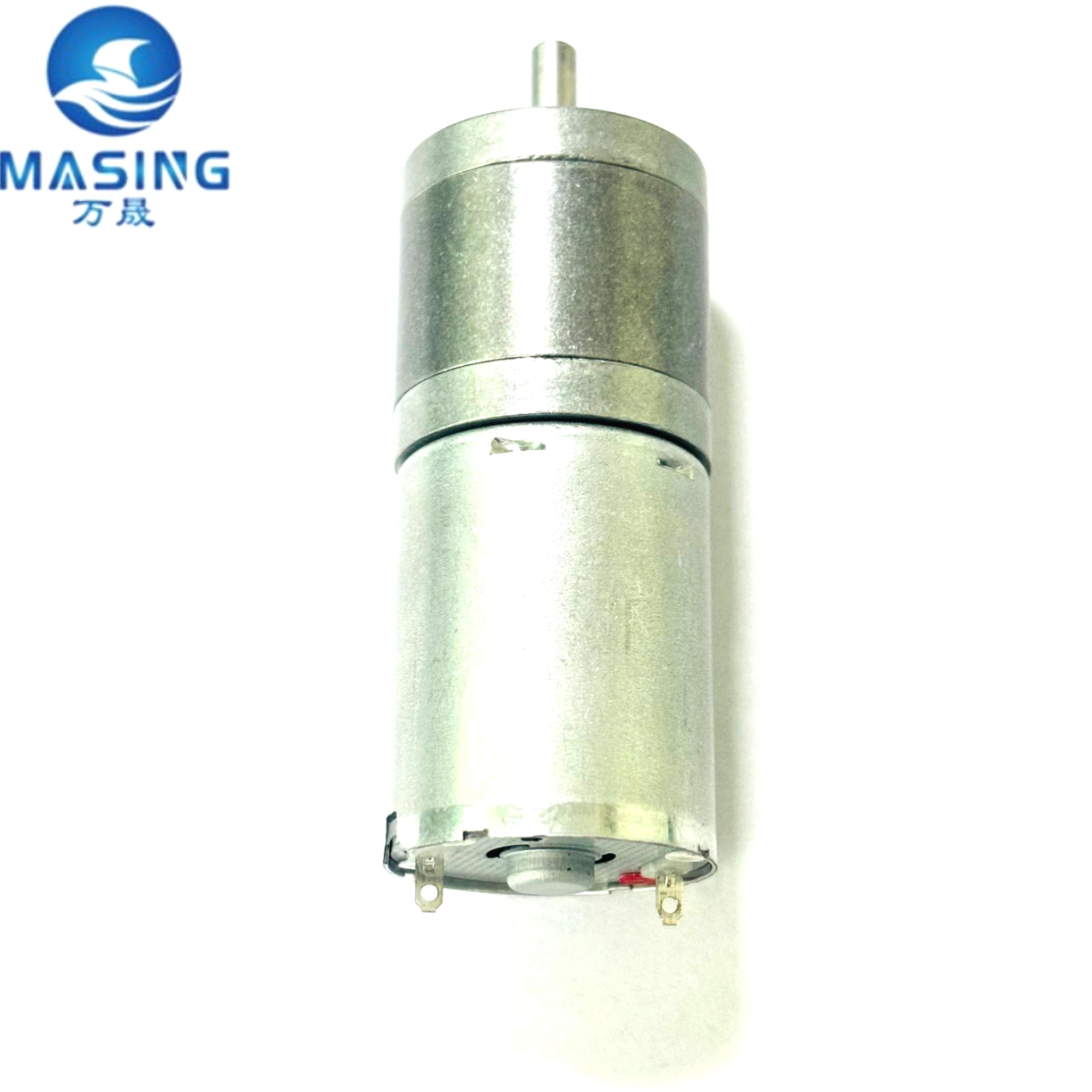

Product Photo:
Product Spec:
DC Spur Plastic Gearbox Motor Typical Applications:
Textile machine,Smart garbage clamshell,Smart lock, electric valve, smart car, storage box, advertising equipment, electronic game console, shared charging pile, shredding machine,Home Appliance, robot,vending machine, medcial device
Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$5/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Textile machine,Smart garbage clamshell,Smart lock, electric valve, smart car, storage box, advertising equipment, electronic game console, shared charging pile, shredding machine,Home Appliance, robot,vending machine, medcial device
Q1.Are you trading company or manufacturer?
A1:We are manufacture,we currently produce Brushed Dc Motors, Brushed Dc gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
Q2: How do you make sure motor quality?
A2: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
Q3:I can't find a suitable motor on your website, can you customize the motor for me?
A3:Yes, we can customize a suitable motor according to our customer's requirements.
Q4: Do you have certificates for the motors?
A4: Yes, we have CE,Rohs, ISO,16949, etc. If you have the other certificates requirement, we can apply it for you.
Q6:Do you have a customized service for your standard motors?
A6: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
|
|
