Title:
High Quality 16mm Metal Gear Dc Motor 3v 6v Spur Geared Dc Motor 16A030 For Cabinet Lock
Description:
Voltage:DC1.5v-24v Customized
Speed:2rpm-3000rpm Customized
Out Power:0.2W-5W Customized
Gearbox diameter :Ø16mm Gearbox material :Metal Gear box
Gear Material:Precision Metal Gear Motor
Reduction ratio:Customized 1:10-1:1000
Match Motor :FF-030 FF-050 permanent magnet DC brushed motors
Accessories:Wires, Connectors, Gearbox, Encoder, Brake, Cool Fan, etc (Optional)
Factory customization: customized according to demand, high performance, stable and controllable
Shaft size :Ø3mm or Customized
Shaft type: (Can be Customized) Bare /D-Cut /Double D-Cut /Pin Hole /Keyway shaft
Shaft Material:Carbon Steel or Stainless Steel
Special imported steel for gear material, minimum modulus (0.15 mode), ultra-low noise, high reliability.The motor adopts high anti-oxidation commutator and brush material, which has
the characteristics of smooth operation, long life and small vibration.
High Torque ,Low Noise Longer life time up to 200,000 times unlock
Meet EU environmental standards: low energy consumption, low noise
Use:Robot , door lock , toy, cabinet lock ,Home Appliance, robot,vending machine, medcial device
Quality: With professional equipment, improve the testing process, quality control system
Durable Construction: The motor's drip-proof design and permanent magnet construction ensure long-lasting performance and resistance to water and dust, making it ideal for use in harsh environments.
Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.

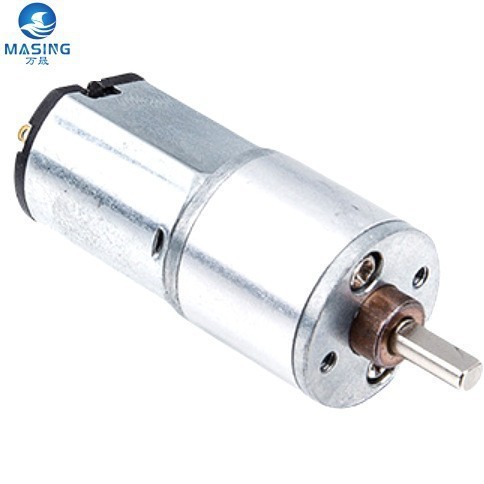

Product Photo:

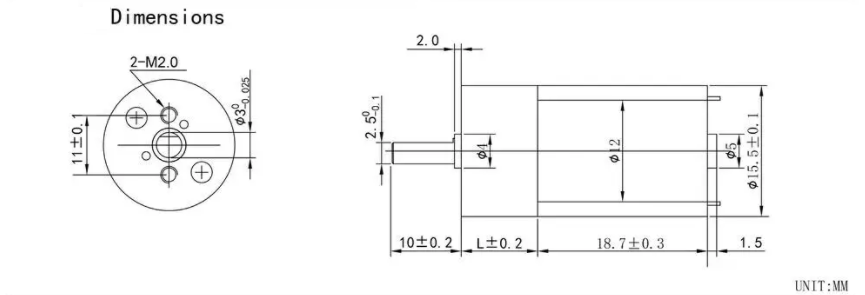

Product Spec:
DC Spur Metal Gearbox Motor Typical Applications:
Electronic Door Lock
Smart Home Appliance
Smart Robot
Electric Toys Robot , door lock , toy, cabinet lock
Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.
| Gear Motor Technical Data | |||||||||||
V O L T A G E | REDUCTION RATIO | 11 | 50 | 150 | 200 | 250 | 300 | 450 | 600 | 750 | 900 |
| 5 | (g - cm) RATED TORQUE | 17 | 81 | 243 | 325 | 406 | 487 | 731 | 900 | 1125 | 1250 |
| (rpm) RATED SPEED | 1427 | 314 | 104 | 78 | 63 | 52 | 34 | 26 | 21 | 17 | |
| (g-cm) MAX MOMENTARY TOLERANCE TORQUE | 80 | 762 | 2239 | 2920 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | |
| (rpm) NO LOAD CURRENT | 1536 | 338 | 113 | 86 | 68 | 56 | 38 | 28 | 23 | 19 | |
| 4.5 | (g - cm) RATED TORQUE | 35 | 162 | 465 | 622 | 775 | 906 | 1352 | 1770 | 1875 | 1900 |
| (rpm) RATED SPEED | 1063 | 234 | 78 | 59 | 47 | 39 | 26 | 20 | 16 | 13 | |
| (g-cm) MAX MOMENTARY TOLERANCE TORQUE | 77 | 739 | 2171 | 2830 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | |
| (rpm) NO LOAD CURRENT | 1263 | 278 | 93 | 69 | 56 | 46 | 31 | 23 | 19 | 15 | |
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$5/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Robot , door lock , toy, cabinet lock ,Home Appliance, robot,vending machine, medcial device
