Masing Motor (Shenzhen) Co., Ltd
1 Years
| Ask Lasest Price | |
| Brand Name : | Masing Motor |
| Model Number : | MSGM1224N20 |
| Certification : | 16949 ,ROHS, CE, ISO |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 100000piece/per month |
| Delivery Time : | 3-5 work weeks |
Title:
Custom 12mm Small Dc Gear Motors Spur Gearbox N20 N30 Micro Worm Variable Speed Gear Motor
Description:
Operating voltage range:9.0V-16.0V DC Ratedd voltage:12.0V
Operating Temperature Range:-40℃-+85℃
Storage temperature Range:-40℃-+105℃
Insulation Resistance:B CLASS
Gearbox materials :Copper or steel or customized
Gearbox size :φ12mm*24mm
Shaft diameter :φ3mm
Shaft type:D-cut ,Flat ,round ,M3,M4 or customized
Gear Ratio:1:165 or customized
Life test:Life expectancy is more than 100000 cycles
Noise :50DB Max ,Rated voltage & no load operation. Measured with following condition.Background noise: 32db max.
High Efficiency and Performance: 1.5V- 12V DC Spur Geared Motor offers an efficiency of 70%
Low Noise and High Torque: With a torque of 0.1-2kg.cm, this motor operates at a low noise level, making it suitable for applications requiring minimal noise pollution, such as fan and cosmetic instrument use.
Customizable Options: We offer various diameter options (12mm, 13mm, 14mm, etc.) and a color that can be customized according to the user's request, allowing for flexibility in design and integration.
We can provide samples for testing
Every product before shipped is 100% inspected for quality
Temperature Range

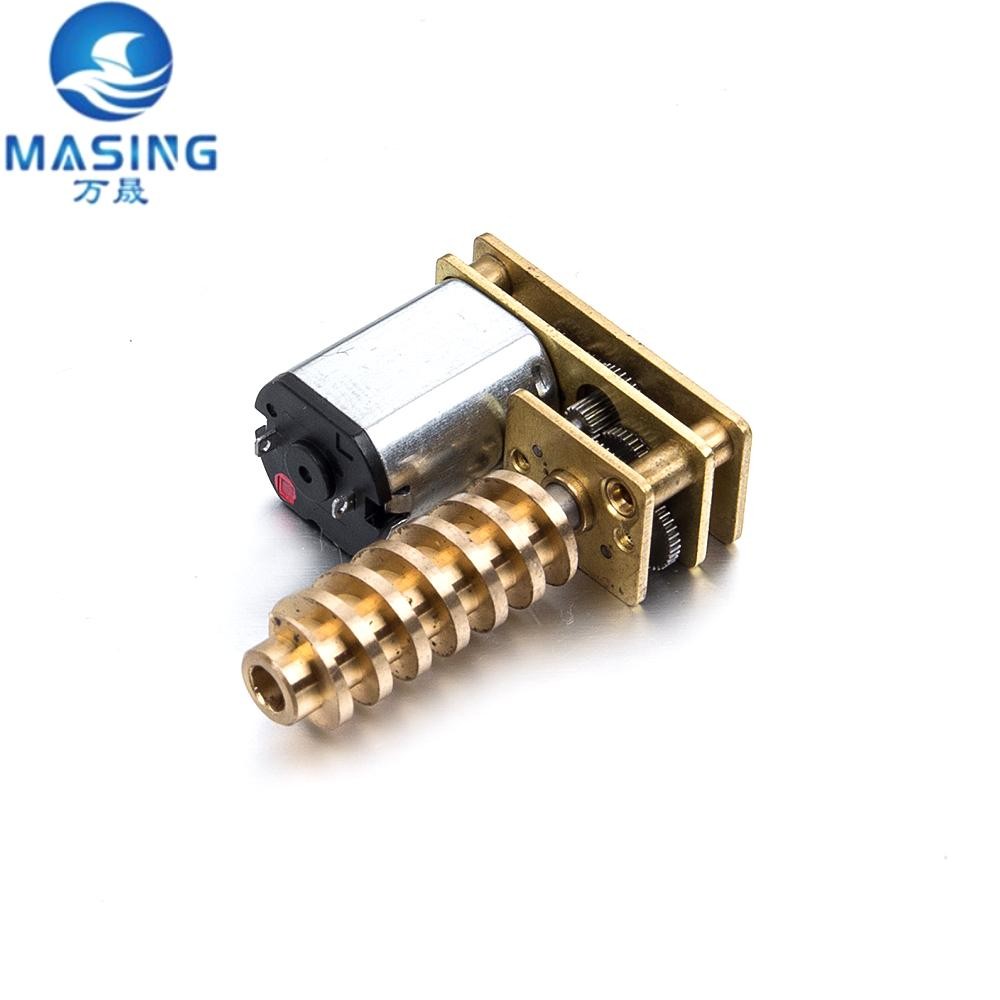

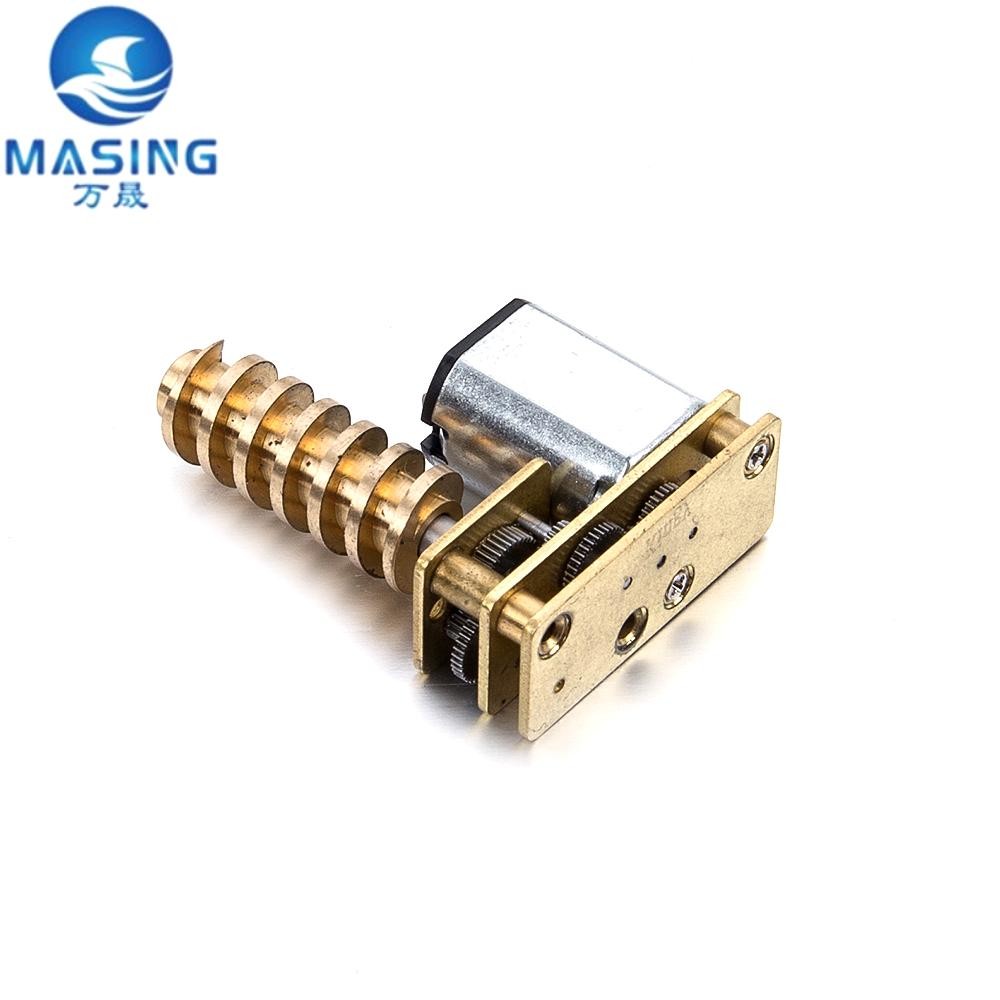

Product Photo:
Product Spec:
N20 DC Gear Motor Typical Applications:
Home Appliance, robot,door lock,camera,medcial device,Electronic Door Lock,Smart Home ,Appliance Smart Robot ,Electric Toys,3D printing,Smart cabinet locks
Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.
GM1224-N20-3.0V
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$10/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,
5G communication,Smart home,Locks,Car, Electric Bicycle, Home Appliance, Cosmetic instrument
Q5:Do you accept customize?
A5: Sure,as we have a strong design team,any problems will get our technical answer.
Q6:What kind of data do i neet to provide if i want to order?
A6: Please kindly tell us your rated voltage, no load speed, load speed, load torque and overall dimension.
Q7:How do you make sure motor quality?
A7: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
|
|
