Metal Gearbox Motor 12mm N30 N20 Geared Motor 30rpm 6V With Encoder

Masing Motor (Shenzhen) Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Metal Gearbox Motor 12mm N30 N20 Geared Motor 30rpm 6V With Encoder from wholesalers

    Buy cheap Metal Gearbox Motor 12mm N30 N20 Geared Motor 30rpm 6V With Encoder from wholesalers
    • Buy cheap Metal Gearbox Motor 12mm N30 N20 Geared Motor 30rpm 6V With Encoder from wholesalers
    • Buy cheap Metal Gearbox Motor 12mm N30 N20 Geared Motor 30rpm 6V With Encoder from wholesalers
    • Buy cheap Metal Gearbox Motor 12mm N30 N20 Geared Motor 30rpm 6V With Encoder from wholesalers
    • Buy cheap Metal Gearbox Motor 12mm N30 N20 Geared Motor 30rpm 6V With Encoder from wholesalers

    Metal Gearbox Motor 12mm N30 N20 Geared Motor 30rpm 6V With Encoder

    Ask Lasest Price
    Brand Name : Masing Motor
    Model Number : MSGM12N20
    Certification : ROHS CE ISO
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100000piece/per month
    Delivery Time : 3-5 work weeks
    • Product Details
    • Company Profile

    Metal Gearbox Motor 12mm N30 N20 Geared Motor 30rpm 6V With Encoder

    Title:

    DC Gear Motor 300rpm 6v N20 Dc Geared Motor with Encoder Customized Low Rpm High Torque N20 N30 Metal Gearbox 12mm

    Description:

    • Compact Design: With a net weight of 11g to 13g and a gearbox dimension of 12mm x 10mm (wide x length), this motor is perfect for space-constrained projects. The motor's compact design makes it easy to integrate into various devices and systems.
    • Applications:Home Appliance, robot,door lock,camera,medcial device

    • Factory customization: customized according to demand, high performance, stable and controllable

    • Compliant with Safety Standards: The motor meets CE and ROHS certification requirements, ensuring compliance with international safety standards. This makes it an ideal choice for users who require a reliable and safe motor for their applications.
    • Meet EU environmental standards: low energy consumption, low noise

    • Encoders, gears and other requirements can be configured

    • Reduction ratio:Customized 1:10 ,1:20,1:30,1:50,1:75 ,1:100,1:150,1:210,1:250,1:298, 1:300,1:500,1:1000

    • Quality: With professional equipment, improve the testing process, quality control system

    • Motor voltage speed torque eccentric wheel size and material can be customized according to customerrequirements.

    • The motor speed is proportional to the motor voltage.

    • The toraue of the motor is nronortional to the speed of the motor

    • The above gearbox reduction ratio is our compangy's conventional reduction ratio,and the reduction ratiocan be customized

    • Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.

    • SHAFT TYPES:

      Out shaft standard as follows,also can customerized due to the user drawings

      welcome to contact customer service for more types

    • Round Type :DIA3mm. 4mm. 5mm

    • D-cut Type: DIA3-D2.5 DIA4-D3 etc

    • Screw Type: M3 M4 M5 Serial

    • Trape Type I-cut Type: DIA3-I2 DIA4-I3

    • Other Type: Shaft with a hole etc

    Key attributes:

    Speed(RPM)
    5rpm-3000rpm
    Continuous Current(A)
    Customized
    Gearbox Shaft
    Round ,Screw,Trape ,D-Cut
    Warranty
    Others
    Place of Origin
    Guangdong, China
    Brand Name
    Masing Motor
    Model Number
    MS12FN20
    Use
    Home Appliance, robot,door lock,camera,medcial device
    Type
    N20 Geared Motor 6v
    Gear Ratio
    1:10-1:1000
    Efficiency
    IE 1
    Commutation
    Brushed Motor
    Protect Feature
    Exposed Gearbox
    Product Name
    N20 Gear box Motor
    Gear box
    12mm Metal Gearbox
    Certificate
    CE,Rohs,EU,ISO
    Gearbox Size
    12mm*9mm
    Weight
    10g
    Noise
    ≤55DB
    MOQ
    1000Pcs
    Gears
    Hobbing Gears ,Rohs Metal,Steel or Copper
    Color
    Customer's Request
    Torque
    10-2000g.cm

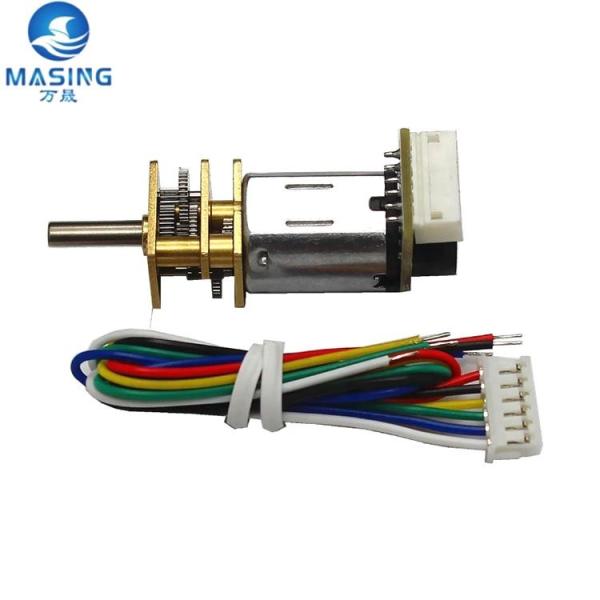

    Product Photo:

    Metal Gearbox Motor 12mm N30 N20 Geared Motor 30rpm 6V With EncoderMetal Gearbox Motor 12mm N30 N20 Geared Motor 30rpm 6V With Encoder

    Metal Gearbox Motor 12mm N30 N20 Geared Motor 30rpm 6V With Encoder

    Metal Gearbox Motor 12mm N30 N20 Geared Motor 30rpm 6V With Encoder

    Product Spec:

    N20 Gear Motor Typical Applications:

    Car, Home Appliance, Cosmetic instrument, SMART HOME, robots,door lock,projector

    Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

    Metal Gearbox Motor 12mm N30 N20 Geared Motor 30rpm 6V With Encoder

    Packaging and delivery:

    Packaging Details
    Strong Carton 1000pcs/box, or as you wish.
    Port
    Shenzhen/Guangzhou/Shanghai
    Selling Units:
    Single item
    Single package size:
    37X27X24mm
    Single gross weight:
    0.01kg

    Supply Ability:

    Supply Ability
    100000 Piece/Pieces per Month

    Lead time:

    Quantity (pieces) 1 - 100 101 - 1000 > 1000
    Lead time (days) 10 15 To be negotiated

    Samples:

    Maximum order quantity: 1piece
    Sample price:

    $5/piece

    Certifications:

    Metal Gearbox Motor 12mm N30 N20 Geared Motor 30rpm 6V With Encoder

    Factory Show:

    Metal Gearbox Motor 12mm N30 N20 Geared Motor 30rpm 6V With Encoder

    Product Classification:

    Metal Gearbox Motor 12mm N30 N20 Geared Motor 30rpm 6V With Encoder

    Applications:

    Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

    5G communication,Smart home

    Metal Gearbox Motor 12mm N30 N20 Geared Motor 30rpm 6V With Encoder

    FAQ
    Q1: How about the quality of products in your company?

    A;We have high and best quality products and our products get some good feedbacks from clients over the world. Once you got our peoducts with some questions under guarantee, we will provide helps at first time. at the usual time we keep our records about products complaints as low as 1%.

    Q2:Do you accept customize?
    A: Sure,as we have a strong design team,any problems will
    get our technical answer.

    Q3:What kind of data do i neet to provide if i want to order?
    A3: Please kindly tell us your rated voltage, no load speed, load speed, load torque and overall dimension.

    Q4: What is your guarantee for the products?
    A4: We can offer the technical support and spare parts for the repair if any quality problems, and will follow the problems until you are satisfied.
    Q5: Can you provide OEM or ODM service?
    A5: Yes, OEM and ODM are both welcomed.

    Q6: How long is the deliver?
    A6: Devliver time depends on the quantity you order. sually it takes 15-25 working days.


    Q7:How can I know the product is suitable for me?

    A.You provide us the more details information about the product.We will recommend theitem to you according to your detail parameters.After you confirm,we will prepare thesamples to you.Also we will offer some good advances according to your product use.
