Micro Worm Gear Reducer Motor 12Volt Low Speed 3246 Right Angle Gearbox With Rf-370 Brushless Motor for Electric Car
Description:
- Customizable Options: We cater to diverse user needs by offering customizable weight, continuous current, and rated power options, ensuring you can choose the perfect motor for your specific application.
- Voltage range:DC 12volt-24volt
- Rated Spped :2rpm-200pm
- Customizable Speed: The motor allows for custom speed options, making it suitable for a wide range of applications, including electric access control systems and security cameras.
- Gearbox type :Worm gearbox
- Gearbox size :φ32mm*H46mm
- Gearbox reduction ratio:1:69 to 1:1320
- Gearbox material:Metal or customized
- Gear Material:Steel ,Metal ,Plastic,Powder metallurgy
- Shaft diameter :φ6mm D-cut or customized
- Shaft type :Round,Flat ,D-cut ,Threaded shaft,Threaded hole ect
- Motor Type :Brush Motor or Brushless Motor
- Motor size :φ24mm*L30mm ,BLDC2430 ,370 Brushless Motor
- Accessories:Encoder, terminal wire, gear, fan or customized
- Direction of motor:CW&CCW available
- Working temperature:-40~+60°c
- Customized support:OEM, ODM, OBM
- We can provide samples for testing
- Every product must pass quality inspection before shipment.
Key attributes:
Continuous Current(A)
10mA-500mA
Place of Origin
Guangdong, China
Model Number
MSGM3246BL2430
Use
smoke extractor,stir-frying machine ,coffee machine ,Doll Machine/Smart Small Appliances/Vending Machine,Auto shutter, binding machine, automatic TV rack , money counter,spot light, tissue machine , office equipments, household appliances,automatic actuator
Gearbox Type
Worm Gearbox
Torque
0.1kgf.cm-30kgf.cm
Construction
Permanent Magnet
Direction of motor
CW &CCW available
Product Name
12v dc worm gear motor
Shaft diameter
φ6mm,D-cut
Shaft material
Steel or customized
Life TIme
1000h-3000H or Customized
Gearbox Shaft type
Flat,M5,M6, D-cut or Round or Threaded shaft or Threaded hole
Motor type
370 Brushless Motor/BLDC2430

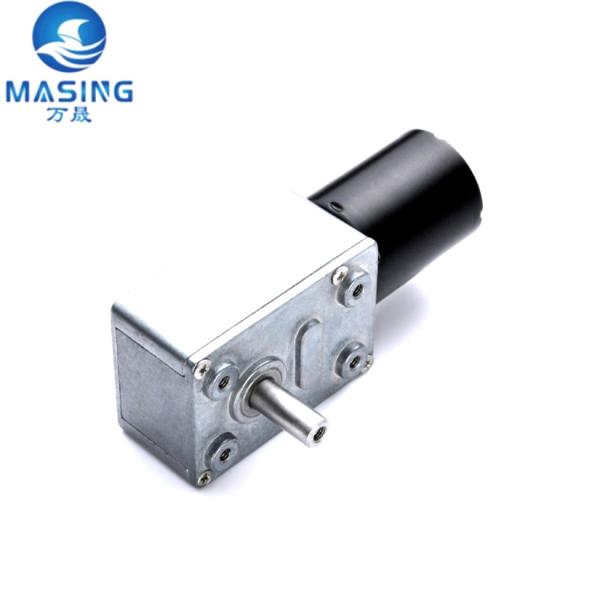

Product Photo:

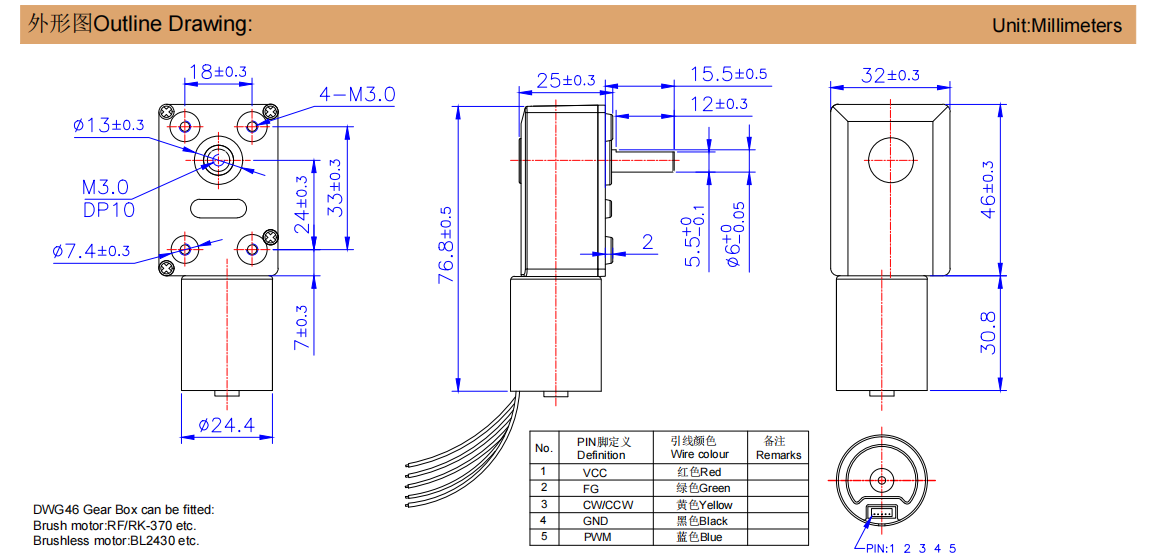

Product Spec:
bldc2430 DC Worm Gear Motor Typical Applications:
Doll Machine/Smart Small Appliances/Vending Machine,Auto shutter, binding machine, automatic TV rack , money counter,spot light, tissue machine , office equipments, household appliances,automatic actuator
Voltage,ratedtorque,speed,curent,powerand shaftsize can be customized as requrement.
| Gearbox Data: |
Number of Stages | 3 | 4 |
Reduction Ratio(K) | 69/108/200 | 323/412/540/600/727/806/900/1012/1320 |
Rated Torque(kg-cm) | 2 | 4 |
Transient Torque(kg-cm) | 5 | 7 |
Efficiency(%) | 53% | 48% |
| Remarks | Output torque =motor torque*reduction ratio*gear box efficiency
Output speed =motor speed/reduction ratio |
| Motor Data: |
Motor Model | Voltage | No Load | At Maximum Efficiency | Stall |
Operating
Range |
Rated |
Current |
Speed |
Current |
Speed |
lorque |
Power |
Efficiency |
Current |
Torque |
| A | rpm | A | rpm | g-cm | W | % | A | g-cm |
| BL2430*** | 9~14V | 12V | 0.17 | 8000 | 0.67 | 6380 | 83.1 | 5.4 | 67.7 | 2.65 | 411 |
| BL2430*** |
19~26V | 24V | 0.05 | 4600 | 0.18 | 3550 | 67.2 | 2.4 | 60.0 | 0.58 | 295 |
Packaging and delivery:
Packaging Details
Strong Carton 80pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Single gross weight:
10.6kg
Supply Ability:
Supply Ability
100000 Piece/Pieces per Month
Lead time:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 20 | To be negotiated |
Samples:
Maximum order quantity: 1piece
Sample price: $15/piece or Negotiable
Certifications:
Advantages :
1.Company Advantage:
A. Our company is a large-scale professional manufacturer deeply trusted by domestic and overseas customers, integrating development, production, wholesales and service.
B. To ensure high-quality and best service ,kingly built up professional teams engaged in research,product engineering and sales.
C. We have 5years experience in the design of the research and development, With strong technology developing ability and manufacturing capability, advanced equipment
2. Product Advantage:
A. Variety of products,quality guaranteed, products are widely used
B. Advanced product testing equipment
C. Product flexibility, customize according to the requirements of the clients any special develop all kinds of molds, Independent research and development since the open mold products
D. Products through a variety of certification(CE,RoHs,ISO,Reach)
E. Some products have patent certificate
Factory Show:
Product Classification:
Applications:
Small home appliances.models, power tools, communication equipment, medical devices,
health care equipment, toys and fitness equipment and other products.
Our producs have a wide range of applications, more application scenarios are waiting for you to unlock.
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,
Security monitoring,5G communication,Smart home
| Medical equipment | sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer. |
| Business Machines | intelligent robot,Copiers and Scanners, 3D Printers, Tattoo pen. |
| Electric powered equipment | Electric toothbrush,Electric tool,adult erotica products,Electric toy car,Electric curtain. |
| | Intelligent window opener ,vacuum cleaner, Smart coffee machine,hair drier,Fascia gun,fan,air cleaner,Hair removal device,door
lock,Intelligent door lock. |
| Food and Beverage | Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| |
Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot.
|
Q1: How to order?
A1: Send us inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production→Cargo ready → Balance/delivery → Further cooperation.
Q2:How can we guarantee quality?
A2:Always a pre-production sample before mass production;Always final Inspection before shipment;
Q3:What is the lead time for samples and mass production?
A3:Within 5-7 working days for samples and 20-30 days for mass production.
Q4:Do you have certificates for the motors?
A4: Yes, we have CE, Rohs,16949, ISO, etc. If you have the other certificates requirement, we can apply it for you.
Q5: How is your Quality Control?
A5: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
