Micro 10mm Gearbox Gear Motor FF-M10 3V DC Gear Reduction Motor For Fan Brush

Title:

Mini Brush FF-M10 With 10mm Gearbox Micro Gear Motor 3v Reduction Motor GM10-M10 For Fan Brush

Description:

• Voltage:DC Input 1.2V-24v (Can be Customized)

• Speed:5rpm-1000rpm(Can be Customized)

• Motor voltage speed torque eccentric wheel size and material can be customized according to customerrequirements.

• The motor speed is proportional to the motor voltage.

• Power:0.1W-3W

• Gearbox:φ10*9mm = metal gearbox , Gearbox materail:Copper and stainless steel

• Gear ratio:1:10-1:1000

• The above gearbox reduction ratio is our compangy's conventional reduction ratio,and the reduction ratiocan be customized

• Shaft size :φ3mm D 2.5mm Length :10mm

• SHAFT TYPES:

  Out shaft standard as follows,also can customerized due to the user drawings

  welcome to contact customer service for more types

• Round Type :DIA3mm. 4mm. 5mm

• D-cut Type: DIA3-D2.5 DIA4-D3 etc

• Screw Type: M3 M4 M5 Serial

• Trape Type I-cut Type: DIA3-I2 DIA4-I3

• Other Type: Shaft with a hole etc

• Match Motor Type : FF-M10,FF-M20,Mini brush dc motor

• Accessories:Wires, Connectors, Gearbox, Encoder, Brake, Cool Fan, etc (Optional)

• Bearing at output:Ball bearing / Sleeve bearing

• Quality: With professional equipment, improve the testing process, quality control system

• The toraue of the motor is nronortional to the speed of the motor

• Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.

• Efficient and Reliable: With an efficiency of IE 2, this motor provides reliable and efficient operation, reducing energy consumption and heat generation, thereby prolonging its lifespan.

• Wide Voltage Compatibility: This motor is available in 1.2V and 12V versions, catering to a range of applications and user preferences, including Fan Brush,Robot,Locks ,Locker lock,Toys car ,home appliances and industrial equipment

Key attributes:

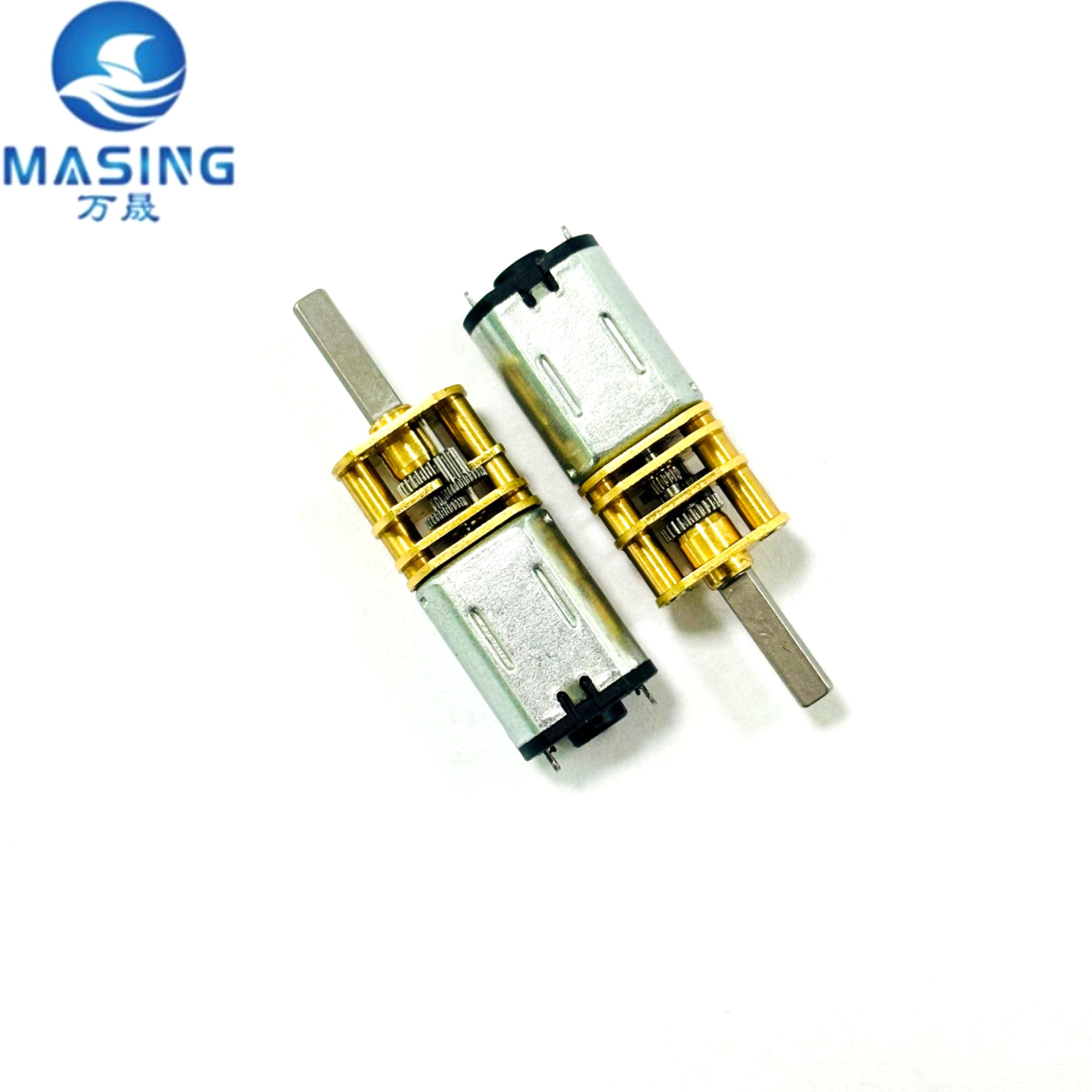

Product Photo:

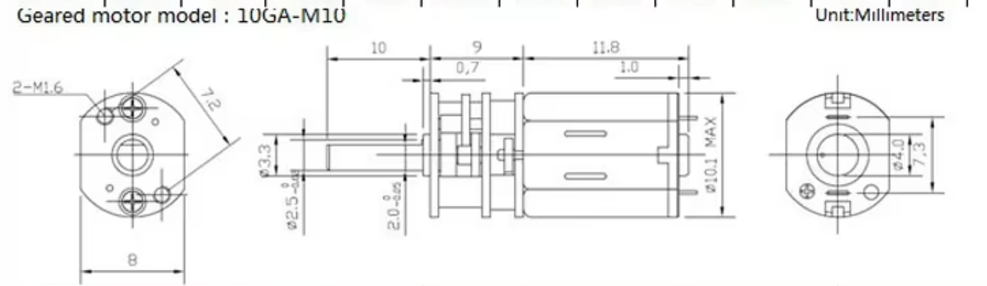

Product Spec:

M10 Micro DC Spur Gear Motor Typical Applications:

Fan Brush,Home Appliance, education robot,door lock,camera,medcial devicer,GPS smart lock,

Electric Lock, Safebox, Robot, Acuator, Electric Valve, Toy,Intelligent product.

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

Packaging and delivery:

Supply Ability:

Lead time:

Samples:

Factory Show:

Product Classification:

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home
