Title:
13mm Metal Gear Box 300 Rpm DC Gear Motor With FF-030 Brush Motor DC Spur Gear Motor for Robot and Locks
Description:
Gearbox size :13mm Micro Gearbox Match Motor : DC FF-030 FF-050 Brush Motor
SHAFT TYPES:
Out shaft standard as follows,also can customerized due to the user drawings
Round Type :DIA3mm. 4mm. 5mm
D-cut Type: DIA3-D2.5 DIA4-D3 etc
Screw Type: M3 M4 M5 Serial
Trape Type I-cut Type: DIA3-I2 DIA4-I3
Other Type: Shaft with a hole etc
Customizable Options: can be customized according to the user's request, allowing for flexibility in design and integration.
Product Photo:

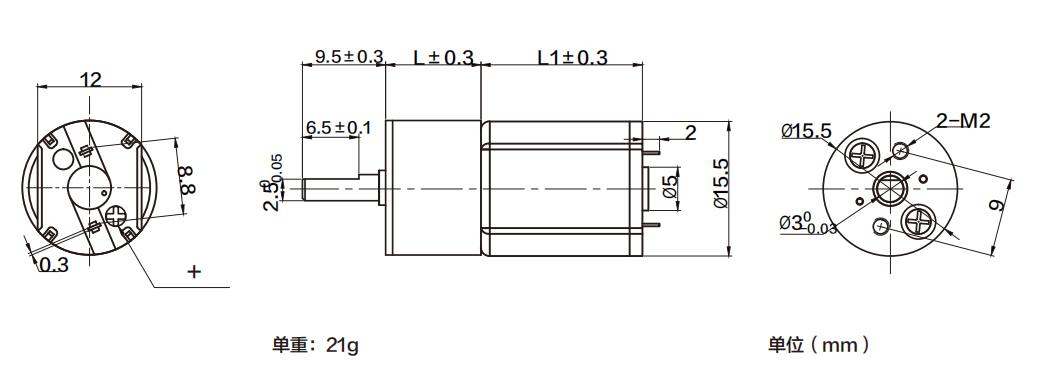

Product Spec:
Micro Motor FF-030/FF-050 with Gearbox DC Gear Motor Typical Applications:
Electric Bicycle, Home Appliance, Electronic Door Lock,Smart Home ,Appliance Smart Robot ,Electric Toys,3D printing,Smart cabinet locks
Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.
Gearbox Technical Date
| Number of stages | 2 | 4 | 5 |
| Ratio | 3K / 7K / 10K | 16K/17K/20K/30K/35K/50K/63K/70K/86K | 115K/150K/210K/250K/360K |
| Max. Rated Torque | 200 gf.cm | 600 gf.cm | 1000 gf.cm |
| Max. Gear Breaked Torque | 600 gf.cm | 1500 gf.cm | 2800 gf.cm |
| Gearbox Efficiency | 80%~90% | 65%~70% | 55%~60 |
| Model | voltage | No-load | On-load | Stall | Gearbox Ratio | Gearbox Length(L) | Motor | Motor Length(L1) | ||||||
| Speed | Current | Speed | Current | Torque | Torque | Current | ||||||||
| V | r/min | A | r/min | A | mN.m | Kg.cm | mN.m | Kg.cm | A | mm | mm | |||
| MS-15R030-36.5 | 5 | 350 | 0.08 | 284 | 0.220 | 11.5 | 0.12 | 49.3 | 0.50 | 0.8 | 36.5 | 11 | JFF-030 | 18.6 |
| MS-15R030-62 | 5 | 206 | 0.08 | 167 | 0.220 | 19.6 | 0.20 | 83.7 | 0.85 | 0.8 | 62 | 11 | JFF-030 | 18.6 |
| MS-15R030-100 | 5 | 128 | 0.09 | 104 | 0.244 | 31.6 | 0.32 | 35.0 | 1.38 | 0.8 | 100 | 11 | JFF-030 | 18.6 |
| MS-15R030-160 | 5 | 80 | 0.09 | 65 | 0.244 | 50.6 | 0.52 | 216.0 | 2.20 | 0.8 | 160 | 11 | JFF-030 | 18.6 |
| MS-15R030-185 | 5 | 69 | 0.09 | 56 | 0.244 | 58.5 | 0.60 | 249.8 | 2.55 | 0.8 | 185 | 11 | JFF-030 | 18.6 |
| MS-15R030-212 | 5 | 60 | 0.09 | 49 | 0.244 | 67.0 | 0.68 | 286.2 | 2.92 | 0.8 | 212 | 11 | JFF-030 | 18.6 |
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$10/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,
5G communication,Smart home
Q1:What kind of data do i neet to provide if i want to order?
A1: Please kindly tell us your rated voltage, no load speed, load speed, load torque and overall dimension.
Q2: How to order?
A2: Send us inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production→Cargo ready → Balance/delivery → Further cooperation.
Q5:Do you accept customize?
A5: Sure,as we have a strong design team,any problems will get our technical answer
Q6: How to confirm the payment?
A6: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
|
|
