| Brand Name : | Masing Motor |
| Model Number : | MSBL4260 |
| Certification : | 16949,RohS,CE,ISO |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 1000000piece/per month |
| Delivery Time : | 3-5 work weeks |
Title:
36v Dc Brushless Motor 4260 BLDC Big Brushless DC Motor Controller Fans Electric Bicycle Smart Home Motor
Description:
Rated Voltage :DC 9volt-30volt
Rated speed :2000rpm -12000rpm
Motor voltage speed torque eccentric wheel size and material can be customized according to customerrequirements.
Rated Torque :10g.cm-500g.cm
The torque of the motor is nronortional to the speed of the motor
Motor type :Brushless dc motor &BLDC Motor
Direction of motor:CW&CCW available
Motor size :φ42mm*L60mm ,diameter 42mm Length 60mm brushless motor/BLDC motor
Motor shaft :φ5mm or customized
Motor type :M5,With a hole ,Round ,Flat ,D-cut,Threaded shaft ect
Bearing type:Oil bearing or ball bearing
Customizable: The motor is customizable to meet specific user needs, allowing for adjustments to be made to suit various applications, as requested by the user.
Working temperature:-40~+60°c
Structure selection:Built-in driver or external driver
Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.
Applications : Smart home, robots, office supplies, power tools, medical equipment,precision instruments, automotive electronics,etc.
Toys,Massager ,Robot,Robot Vacuum Cleaner,Car flip screen,Intelligent Trash Can ,Power Tools, Home Application, Personal Care,Car, Electric Bicycle, FAN,, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,
We can provide samples for testing.
Quality assurance: each product must pass the quality inspection before shipping

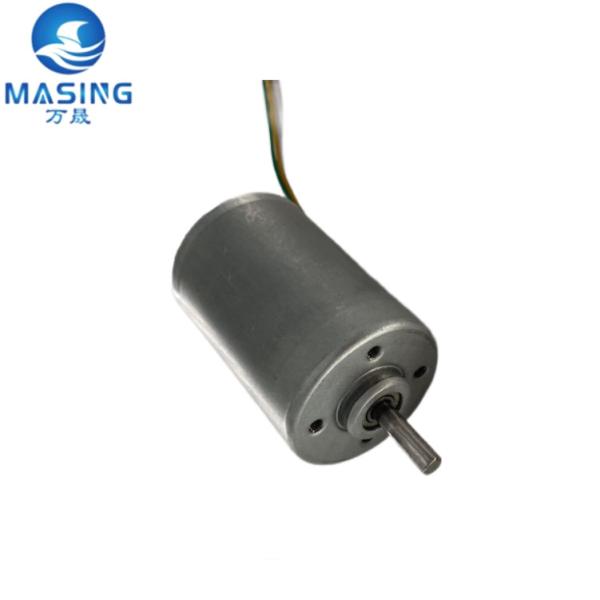

Product Photo:
Product Spec:
BLDC 4260 Brushless DC Motor Typical Applications
Smart home, robots, office supplies, power tools, medical equipment,precision instruments, automotive electronics,Toys,Massager ,Robot Vacuum Cleaner,Car flip screen,Intelligent Trash Can ,Power Tools, Home Application, Personal Care,Car, Electric Bicycle, FAN,, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,
Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.
| Motor Data: | |||||||||||
Motor Mode | Voltage | No Load | At Maximum Efficiency | Stall | |||||||
Operating Range | Rated | Current | Speed | Current | Speed | Torque | Power | Efficiency | Current | Torque | |
| A | rpm | A | rpm | g-cm | W | % | A | g-cm | |||
| BL4260*** | 9~14V | 12V | 0.30 | 6450 | 1.22 | 5177 | 204 | 10.8 | 73.9 | 4.96 | 1032 |
| BL4260*** | 19~26V | 24V | 0.42 | 12000 | 2.12 | 10019 | 432 | 44.4 | 87.2 | 10.74 | 2616 |
Packaging and delivery:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 5000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$15/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Toys,Massager ,Robot,Robot Vacuum Cleaner,Car flip screen,Intelligent Trash Can ,Power Tools,Driverless,
Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,
5G communication,Smart home
