Title:
RF-520C Dc Motor Carbon Brush 33mm 6V 12V Micro Motor High Speed 3000rpm 6000rpm For Coffee Maker Vacuum Cleaner Intelligent Robot Air Purifier Micro DC Motor
Description:
Voltage range:DC 1.5V-24V
Rated Speed:1500-10000RPM
Rotating speed is constant and can be made as you required.
Size: 33*23mm,just 33mm,diamter 23mm length DC Micro motor
Suitable to small diameter, low noise and big toque application
Working temperature:-40~+60°c
Motor default direction:CW&CCW
Shaft diameter :2.0mm
Shaft Material:Stainless steel and carbon steel shafts
Shaft Type :Round ,D-Cut ,Flat ,a hole ,Knurled ect
Can be match with wheel, One shaft one wheel or one motor, one wheel
Brush type :Metal brush or carbon brush
Widely used in Soap Dispenser,Vacuum Cleaner Intelligent Robot Coffee Maker Air Purifier Micro DC Motor DIY Toy Science Project,robot,toy, Electric Razor, Medical Devices,pump ,Smart trash can,Fan,Cosmetic instrument, SMART HOME, Bell Fragrance Mixer Cd Dvd Vcr Player
We can provide samples for your test.

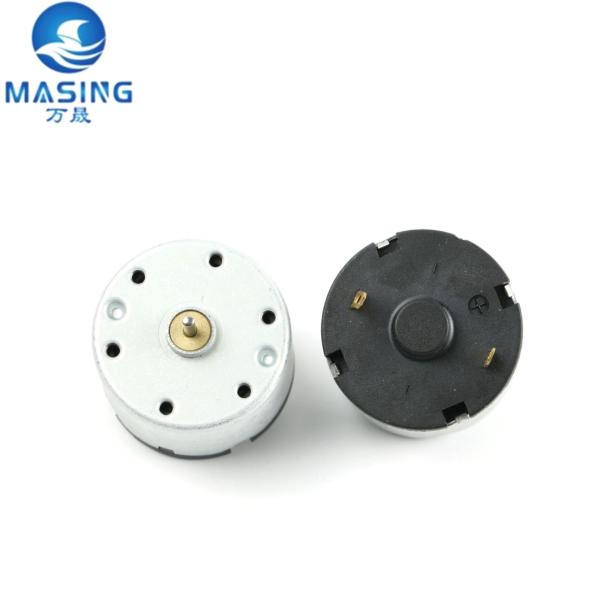

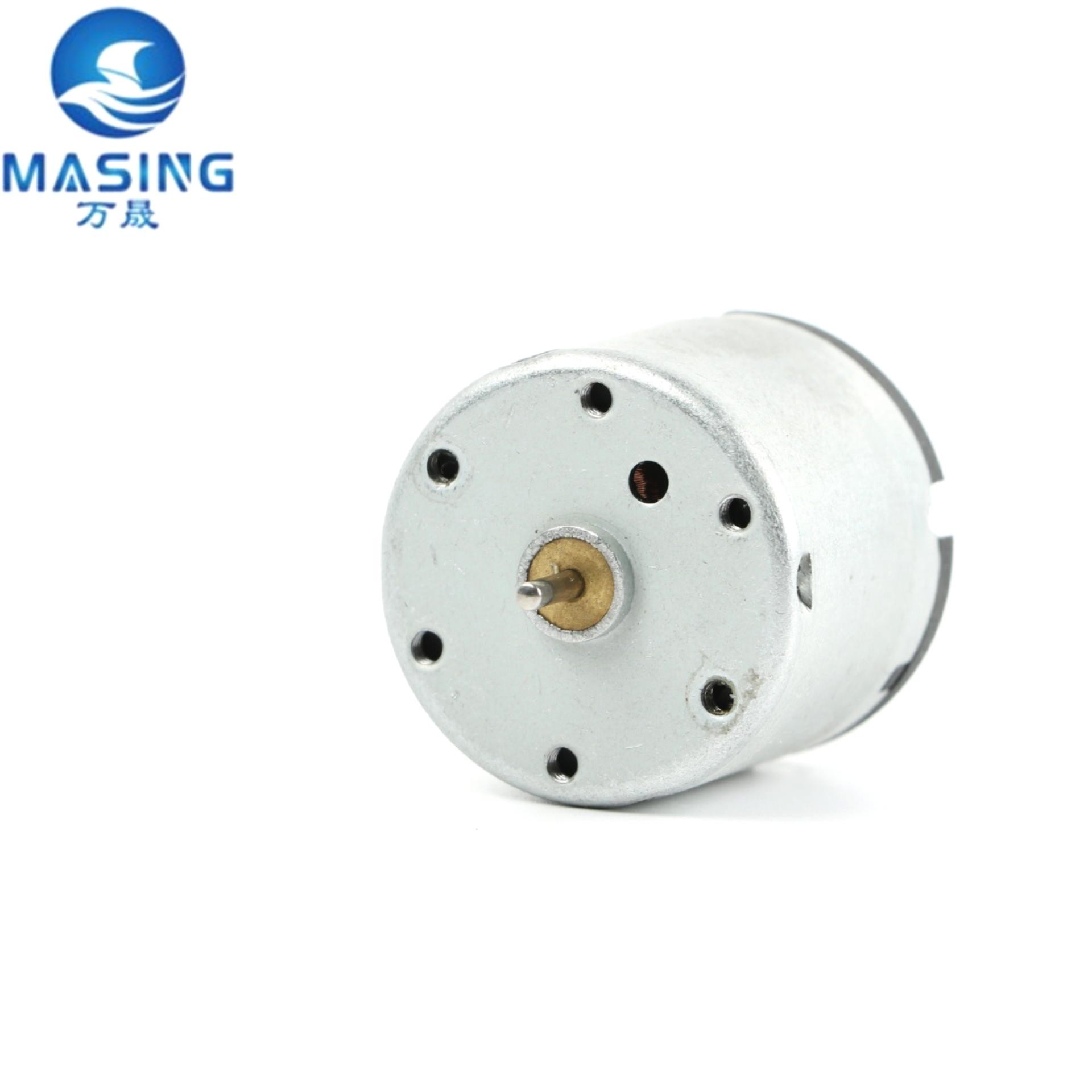

Product Photo:
Product Spec:
RF-520C DC Brushed Motor Typical Applications
Soap Dispenser,Vacuum Cleaner Intelligent Robot Coffee Maker Air Purifier,DIY Toy Science Project,Fan, Electric Bicycle Lock, FAN, Home Appliance, Cosmetic Instrument, SMART HOME, Robot
Remark:Voltage,rated torque,speed,curent.power and shaft sze can becustomized asrequirement.
| MODEL | VOLTAGE | NOLOAD | AT MAXIMUMEFFICIENCY | STALL | ||||||||
| OPERATING RANGE | NOMNAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | mN.m | g.cm | w | mN.m | g.cm | A | |||
| MS520CA-20214 | 4.0-7.0 | 6.0V | 5500 | 0.054 | 4730 | 0.326 | 2.20 | 22.4 | 1.087 | 15.7 | 160.0 | 2.0 |
| MS520CA-18262 | 9.0-13.0 | 12.0V | 9100 | 0.061 | 7917 | 0.404 | 3.19 | 32.5 | 2.639 | 24.5 | 250.0 | 2.7 |
Packaging and delivery:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$1.5/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,
Security monitoring,5G communication,Smart home,Soap Dispenser,Vacuum Cleaner Intelligent Robot Coffee Maker Air Purifier
Q1: Are you a factory or trading company?
A1: We are a factory specialized in DC motor ,DC Gear motor and brushless DC motor ect.
Q2:Can I have samples for testing first?
A2:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
|
|
