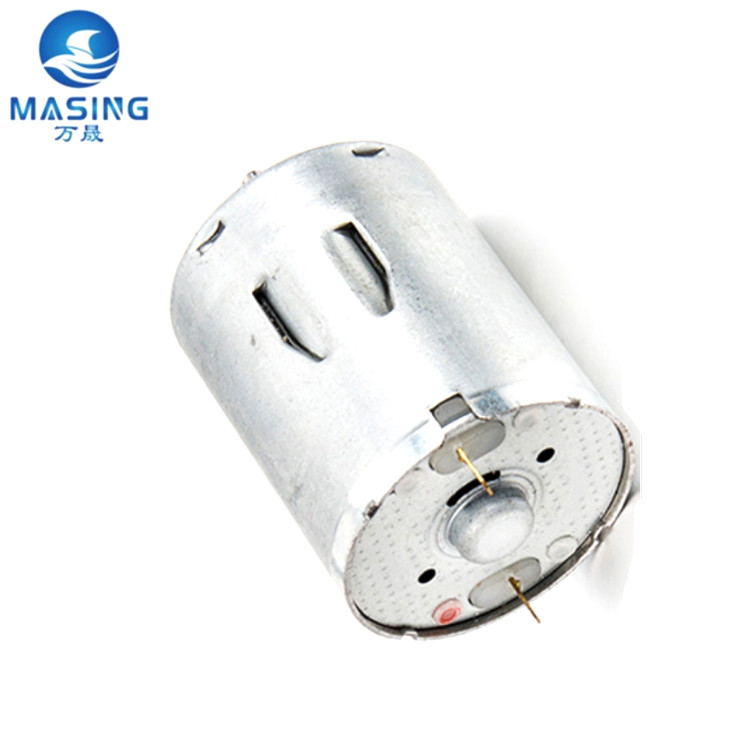

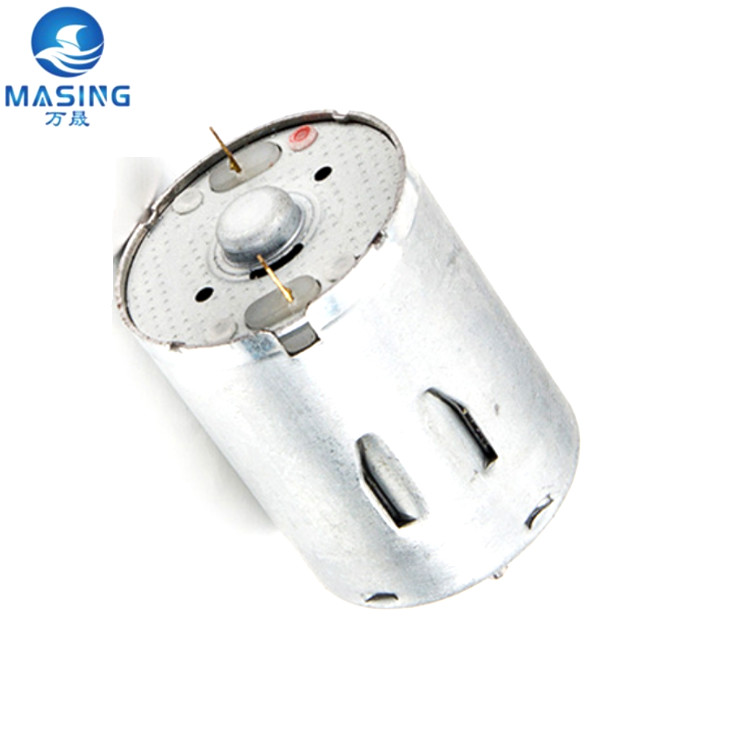

24.4mm RF-370 12V Brushed DC Motor Strong Magnetic High Torque High Power 8000 Rpm Electric Motor

Title:

24.4mm RF-370 12v Brushed Dc Motor Strong Magnetic High Torque High Power 8000 Rpm Electric Motor For Printer,

window opener,Medical Equipment

Description:

• Voltage range:DC3V-24V

• Speed:2000-20000RPM

• Rotating speed is constant and can be made as you required.Voltage and speed adjustment by winding change.

• Motor Size: 24.4*30.8mm,diamter 24.4mm 30.8mm length mini motor

• Shaft Type :φ2.0mm Round ,D-cut ,Flat ,Hole,Rear,Knurled shaft ect ,Modification of shaft length.

• Can be match with wheel, One shaft one wheel or one motor, one wheel,Assembly of gears, vibrators, pulley, etc.

• Shaft Material:Stainless steel shaft and carbon steel shaft

• Bearing :Oil bearing or Ball bearing available.

• Brush type:Metal brush or Carbon brush

• Encoder possible.

• Internal capacitors or varister.

• Suitable to small diameter, low noise and big torque application

• Motor default direction:CW&CCW

• Working temperature:-40~+60°c

• We can provide samples for your test.

• Widely used in Printer,window opener,Medical Equipment Water pump Air pump, robot,lock. toy, gun magazine, eye brush,power tools,Automobile Actuator Vacuum Pump Blood Pressure Monitor and Smart Home 370 Motors,rotary tattoo machine

Key Attributes:

Product Photo:

Product Spec:

Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.

Packaging and delivery:

Supply Ability:

Lead time:

Samples:

Factory Show:

Product Classification:

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home
