Title:
CW&CCW 12Volt High Torque Low Speed Rpm 37mm Dc Geared Motor 555 For Robot And Electric Curtain
Description:
Rated Voltage:DC6v-24v or Customized
Rated Speed:2rpm-3000rpm or Customized
Rated Power:1W-50W or Customized
Gearbox diameter :Ø37mm Gearbox material :Rohs Metal Gear box
Gear Reduction ratio:1:10-1:1006 or Customized
Match Motor Type: RF-500,RF-520,RF-528,RS-385/380.RS-365/360.RS-390 ,RS-395,RS-540,RS-545,RS-550,RS-555 brush dc motor
Bearing at output:Oil bearing or Ball bearing
Accessories:Wires, Connectors, Gearbox, Encoder, Brake, Cool Fan, etc
Shaft diameter :Ø6mm,D-cut or Customized
Shaft type:Round,Flat,M6,Threaded hole,Bare /D-Cut /Double D-Cut /Pin Hole /Keyway shaft
Shaft Material:Carbon Steel or Stainless Steel
Meet EU environmental standards: low energy consumption, low noise
Use:Electric Curtain,Intelligent device,Home Appliance, robot,vending machine, medcial device,Robots, home appliances, vending machines, paper feeders, tissue kneaders, automation equipment
Quality: With professional equipment, improve the testing process, quality control system
Durable Construction: The motor's drip-proof design and permanent magnet construction ensure long-lasting performance and resistance to water and dust, making it ideal for use in harsh environments.
Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.
We can provide samples for testing.

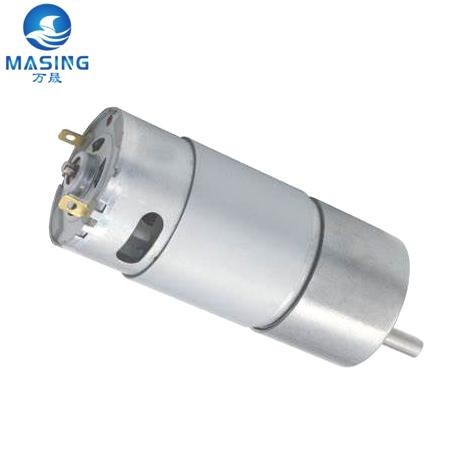

Product Photo:
Product Spec:
37mm Gearbox with rs-5555 Motor DC Spur Metal Geared Motor Typical Applications:
Electric Curtain,Intelligent device,Home Appliance, robot,vending machine, medcial device,Robots, home appliances, vending machines, paper feeders, tissue kneaders, automation equipment
Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.
| Gear ratio iand length L of motor | |||||
| Number of stages | 2 | 3 | 4 | 5 | 6 |
| Gear ratio i | 6 | 16.7 | 45 | 110 | 330 |
| 10 | 23.3 | 50 | 121 | 350 | |
| 30 | 60 | 135 | 405 | ||
| 70 | 150 | 420 | |||
| 90 | 180 | 450 | |||
| 100 | 210 | 490 | |||
| 250 | 540 | ||||
| 270 | 630 | ||||
| 300 | 810 | ||||
| Leng th of gearbox L(mm) | 19 | 21.5 | 24 | 26.5 | 29 |
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$15/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,
5G communication,Robots, home appliances, vending machines, paper feeders, tissue kneaders, automation equipment
Electric curtains,Safe / Locker,Bean Mill.Coffee Machine,Smart Door Locks,Floor sweeper.
