    Rf-370 Dc Motor With 25mm Diameter Gearbox 60 Rpm Dc Gear Motor 6volt 12v For Robot And Shoe Polisher

    Ask Lasest Price
    Brand Name : Masing Motor
    Model Number : MSGM25A370
    Certification : 16949,EU,RoHS,CE,ISO
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100000piece/per month
    Delivery Time : 3-5 work weeks
    • Product Details
    • Company Profile

    Rf-370 Dc Motor With 25mm Diameter Gearbox 60 Rpm Dc Gear Motor 6volt 12v For Robot And Shoe Polisher

    Title:

    Rf-370 Dc Motor With 25mm Diameter Gearbox 60 Rpm Dc Gear Motor 6volt 12v For Robot And Shoe Polisher

    Description:

    • Voltage range:DC3.0v-24v

    • Rated speed :2rpm-2000rpm or Customized

    • Gearbox diameter :Ø25mm , Gearbox material :Metal Gearbox

    • Gear Reduction ratio: 1:10-1:1051 or Customized

    • Motor model selection: RF-300,RF-310,RF-370,RS-385,RS-380.RS-365.RS-390 Permanent magnet DC brushed motors

    • Motor Type :BLDC ,DC Brushless Motor and Brush Motor

    • Direction of motor :CW/CCW available

    • Motor Accessories:Wires,Gear, Connectors, Gearbox, Encoder, Brake, Cool Fan, etc

    • Use: Shoe polisher,Electric curtain,Smart Breast Shaker,Motorcycle smart lock,Meat Grinder, Intelligent Car ,Home Equipment ,Home Appliance, robots,vending machine, medcial device,Paper shredder, smart toilet lid,

    • Shaft types: Round ,Flat,Bare ,D-Cut,Pin Hole ,Threaded shaft,Keyway shaft (Can be Customized)

    • Shaft Material: Customized,Carbon Steel or Stainless Steel

    • Quality control
      Raw-material traceability identification and Finished product inspection

    • Services

      ODM and ODM and Minor customization and Design-based customization

    • Meet EU environmental standards: low energy consumption, low noise

    • Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.

    • We can provide samples for testing

    Key attributes:

    Speed(RPM)
    2rpm-2000rpm or Customized
    Continuous Current(A)
    10mA-500mA
    Efficiency
    50%-85%
    Warranty
    Others
    Place of Origin
    Guangdong, China
    Brand Name
    Masing Motor
    Model Number
    MSGM25A370
    Use
    Shoe polisher,Electric curtain,Smart Breast Shaker,Motorcycle smart lock,Meat Grinder, Intelligent Car,robots,vending machine, medcial device ,Robot Vacuum Cleaner,Home Appliance, door lock,camera,medcial device,Robots, electronic locks, public bicycle locks, relays
    Gearbox Diameter
    φ25mm Gearbox
    Gear Ratio
    1:15-1:1051
    Motor Type
    Brush Motor /Brushless Motor
    Direction of Rotation
    cw or ccw available
    Protect Feature
    Totally Enclosed
    Product Name
    370 gearbox dc motor
    Gearbox Material
    Metal gearbox
    Certificate
    16949,EU ,CE,Rohs,ISO
    Gear Material
    Plastic gears,Powder metallurgy,Metal ,Steel .copper ect
    Rated Voltage
    DC 1.5v-24v
    Noise
    ≤50DB
    MOQ
    1000Pcs
    Shaft Diameter
    φ4mm ,D-cult
    Shaft Type
    Round/ Flat/Threaded hole/Threaded shaft/Bare /D-Cut /Pin Hole /Keyway shaft
    Motor Life time
    500hours-2000hours

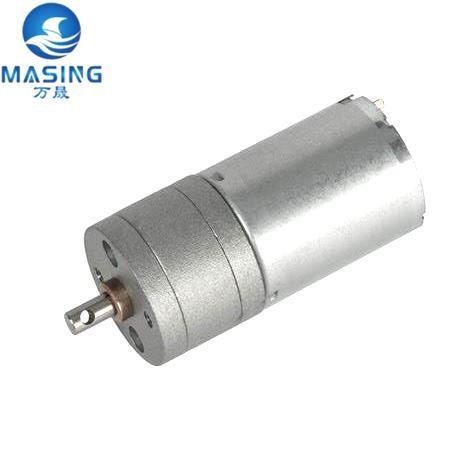

    Product Photo:

    Rf-370 Dc Motor With 25mm Diameter Gearbox 60 Rpm Dc Gear Motor 6volt 12v For Robot And Shoe PolisherRf-370 Dc Motor With 25mm Diameter Gearbox 60 Rpm Dc Gear Motor 6volt 12v For Robot And Shoe PolisherRf-370 Dc Motor With 25mm Diameter Gearbox 60 Rpm Dc Gear Motor 6volt 12v For Robot And Shoe Polisher

    Product Spec:

    GM25A310 DC Spur Gear Motor Typical Applications:

    Smart Breast Shaker,Motorcycle smart lock,Meat Grinder, Intelligent Car,robots,vending machine, medcial device ,Robot Vacuum Cleaner,Home Appliance, door lock,camera,medcial device,Robots, electronic locks, public bicycle locks, relays

    Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

    Rated Voltage:
    1.2-24V DC
    Reduction Ratio:
    1:10-1:1051
    No-load speed(RPM):
    2~2000rpm
    No-Load Current mA(≤):
    10-500mA
    Rated Speed(RPM):
    1.5-1800rpm
    Rated Current mA(≤):
    80-800mA
    Rated Torque(Kg,cm):
    0.03-10kg,cm
    Stall/Maximum Torque (Kg,cm):
    0.5-25kg,cm
    Stall Current(A) :
    0.5-5A
    Shaft:
    416 Steel, D-cut 3.5mm ,Φ4.0 Length 11.5mm
    Gear:
    Plastic ,steel ,powder gear , copper gear

    Rf-370 Dc Motor With 25mm Diameter Gearbox 60 Rpm Dc Gear Motor 6volt 12v For Robot And Shoe Polisher

    Packaging and delivery:

    Packaging Details
    Strong Carton 1000pcs/box, or as you wish.
    Port
    Shenzhen/Guangzhou/Shanghai
    Selling Units:
    Single item
    Single package size:
    12X10X24mm
    Single gross weight:
    0.045kg

    Supply Ability:

    Supply Ability
    100000 Piece/Pieces per Month

    Lead time:

    Quantity (pieces) 1 - 100 101 - 1000 > 1000
    Lead time (days) 10 15 To be negotiated

    Samples:

    Maximum order quantity: 1piece
    Sample price:

    $5/piece

    Certifications:

    Rf-370 Dc Motor With 25mm Diameter Gearbox 60 Rpm Dc Gear Motor 6volt 12v For Robot And Shoe Polisher

    Factory Show:

    Rf-370 Dc Motor With 25mm Diameter Gearbox 60 Rpm Dc Gear Motor 6volt 12v For Robot And Shoe Polisher

    Product Classification:

    Rf-370 Dc Motor With 25mm Diameter Gearbox 60 Rpm Dc Gear Motor 6volt 12v For Robot And Shoe Polisher

    Applications:

    Meat Grinder, Intelligent Car ,Home Equipment ,Home Appliance, robots,vending machine, medcial device

    Business Machines
    Vending Machines
    Printers
    ATM
    Copiers and Scanners
    Camera and Optical
    Video
    CCTV Cameras
    Projectors
    Lawn and Garden
    Lawn Mowers
    Snow Blowers
    Trimmers
    Leaf Blow

    Rf-370 Dc Motor With 25mm Diameter Gearbox 60 Rpm Dc Gear Motor 6volt 12v For Robot And Shoe Polisher

    FAQ

    Q1:Can I have samples for testing first?

    A1:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly

    Q2:How do you make sure motor quality?

    A2: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.

    Q3:What is your MOQ?

    A3:Our MOQ is 1000pcs. But at the beginning of our business, we accept small order

    Q4: What's your lead time?

    A4: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders

    Q5:Can you send me your price list?

    A5: Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once got your inquiries to make sure you can get the price in time
