| Brand Name : | Masing Motor |
| Model Number : | MSGM12N20 |
| Certification : | ROHS CE ISO 16949 |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 100000piece/per month |
| Delivery Time : | 3-5 work weeks |
Title:
Dc Gear Motor With Encoder 12ppr 24ppr N20 Electric Robot Brushed Motor Mini Gear Motor
Description:
Rated Voltage:DC 1.2V-24v
Rated Speed:5rpm-3000rpm
The motor speed is proportional to the motor voltage.
Rated torque :10gf.cm-2kgf.cm
The torque of the motor is nronortional to the speed of the motor
Gearbox size:φ12*9mm metal gearbox , Gearbox materail:Copper and stainless steel
Match Motor :FF-N10,FF-N20, FF-N30,brushed dc motor
Accessories:Wires, Connectors, Gearbox, Encoder, Brake, Cool Fan, etc (Optional)
Bearing at output:Ball bearing / Oil bearing
Shaft diameter :φ3mm,D-cut
Shaft type :Round Type,D-cut Type,Screw Type,Trape Type I-cut Type or Other Type
The above gearbox reduction ratio is our compangy's conventional reduction ratio,and the reduction ratiocan be customized
Applications:Robot,Locks ,Locker lock,Toys car,Robot vacuum cleaner, laser
Quality: With professional equipment, improve the testing process, quality control system
Motor voltage speed torque eccentric wheel size and material can be customized according to customerrequirements.
Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.
Customizable Options: can be customized according to the user's request, allowing for flexibility in design and integration.
We can provide samples for testing

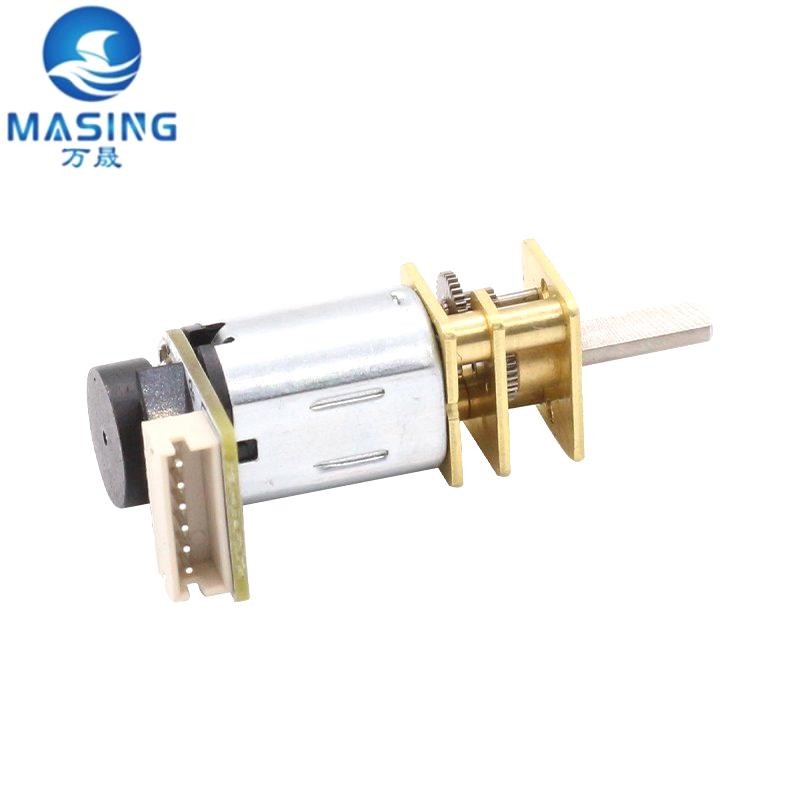

Product Photo:
Product Spec:
N20 Gear Motor Typical Applications:
Robot vacuum cleaner, laser,Car, Home Appliance, Cosmetic instrument, SMART HOME, robot,door lock,projector
Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$10/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,
5G communication,Smart home
A1:Yes, welcome to visit our company, but please let us know at least two weeks in advance to help us make sure no other meetings during the day you visit us
Q2: How can we get samples ?
A2: Normally ship samples by express(DHL/UPS/FEDEX/TNT)after we get your address in1day.
Q3: Can we test samples ?
A3: Yes,we have R&d and Testing Center,customized sample and freight are charged.
Q4: Do you have discount ?
A4:We are factory and bave the most competitive price ,if your quantity is large ,we cannegotiate the pric
Q5:1.How can I know the product is suitable for me?
A5.You provide us the more details information about the product.We will recommend theitem to you according to your detail parameters.After you confirm,we will prepare thesamples to you.Also we will offer some good advances according to your product use.
Q6:Why should I choose your products?
|
|
