    N20 N30 Customized 3v 6v Micro High Torque Gearbox Electric Motor Spur Brushed Dc Geared Motor

    Ask Lasest Price
    Brand Name : Masing Motor
    Model Number : MSGM12N20
    Certification : ROHS CE ISO,16949
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100000piece/per month
    Delivery Time : 3-5 work weeks
    • Product Details
    • Company Profile

    N20 N30 Customized 3v 6v Micro High Torque Gearbox Electric Motor Spur Brushed Dc Geared Motor

    Title:

    N20 N30 Customized 3v 6v Micro High Torque Gearbox Electric Motor Spur Brushed Dc Geared Motor

    Description:

    • Rated voltage:DC1.5V-24V

    • Motor voltage speed torque eccentric wheel size and material can be customized according to customerrequirements.

    • Gearbox diameter :φ12mm

    • Gearbox size:12*9mm gearbox with N20, N30, N10 permanent magnet DC motors

    • Reduction ratio:1:10 ,1:20,1:30,1:50,1:75 ,1:100,1:150,1:210,1:250,1:298, 1:300,1:500,1:1000

    • Rated Speed:10rpm-3000rpm

    • Motor size :φ12mm*L15mm,φ12mm*L20mm

    • Motor type :FF-N20/FF-N30

    • Shaft diameter :φ3mm ,D-cut

    • Shaft type:Round,D-cut,Flat ,Screw type ,Trape or thers

    • Gearbox material:copper ,steel or others

    • Meet EU environmental standards: low energy consumption, low noise

    • Encoders, gears wires,wheel or other requirements can be configured

    • Quality: With professional equipment, improve the testing process, quality control system

    • We can provide samples for testing

    Key attributes:

    Speed(RPM)
    5rpm-3000rpm
    Continuous Current(A)
    10mA-300mA
    Gearbox Shaft
    φ3mm,D-cut
    Warranty
    3Months -1Year
    Place of Origin
    Guangdong, China
    Brand Name
    Masing Motor
    Model Number
    MSGMN20
    Use
    Robots,Locks ,Locker lock,Toys,Laser, robot vacuum cleaner,smart home
    Motor Type
    Brush Motor
    Rated Torque
    Customized
    Construction
    Permanent Magnet
    Commutation
    Brush
    Protect Feature
    Exposed Gearbox
    Product Name
    Micro N20 gearbox motor
    Voltage
    DC1.5v-24v
    Certificate
    CE,Rohs,EU,ISO,16949
    Gearbox Size
    φ12mm*9mm
    Weight
    10g
    Noise
    ≤55DB
    MOQ
    1000Pcs
    Gears
    Plastic,Rohs Metal,Steel or Copper
    Color
    Customer's Request
    Brush type
    Metal brush ,carton brush

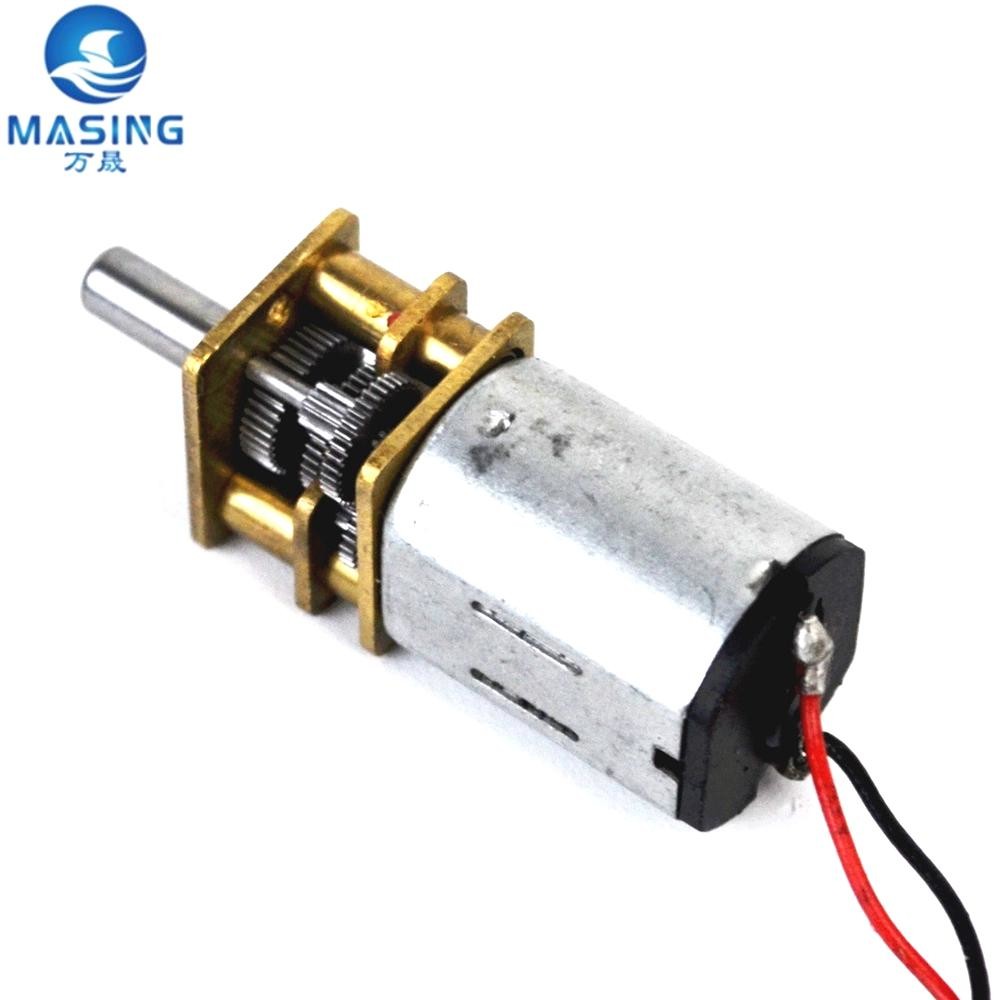

    Product Photo:

    N20 N30 Customized 3v 6v Micro High Torque Gearbox Electric Motor Spur Brushed Dc Geared MotorN20 N30 Customized 3v 6v Micro High Torque Gearbox Electric Motor Spur Brushed Dc Geared Motor

    N20 N30 Customized 3v 6v Micro High Torque Gearbox Electric Motor Spur Brushed Dc Geared Motor

    Product Spec:

    N20 Gear Motor Typical Applications:

    Car, Home Appliance, Cosmetic instrument, SMART HOME, robots,door lock,projector,Locks ,Locker lock,Toys,Laser, robot vacuum cleaner,smart home

    Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

    N20 N30 Customized 3v 6v Micro High Torque Gearbox Electric Motor Spur Brushed Dc Geared Motor

    Packaging and delivery:

    Packaging Details
    Strong Carton 1000pcs/box, or as you wish.
    Port
    Shenzhen/Guangzhou/Shanghai
    Selling Units:
    Single item
    Single package size:
    37X27X24cm
    Single gross weight:
    10.0kg

    Supply Ability:

    Supply Ability
    100000 Piece/Pieces per Month

    Lead time:

    Quantity (pieces) 1 - 100 101 - 1000 > 1000
    Lead time (days) 10 15 To be negotiated

    Samples:

    Maximum order quantity: 1piece
    Sample price:

    $10/piece

    Certifications:

    N20 N30 Customized 3v 6v Micro High Torque Gearbox Electric Motor Spur Brushed Dc Geared Motor

    Factory Show:

    N20 N30 Customized 3v 6v Micro High Torque Gearbox Electric Motor Spur Brushed Dc Geared Motor

    Product Classification:

    N20 N30 Customized 3v 6v Micro High Torque Gearbox Electric Motor Spur Brushed Dc Geared Motor

    Applications:

    Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

    5G communication,Smart home

    N20 N30 Customized 3v 6v Micro High Torque Gearbox Electric Motor Spur Brushed Dc Geared Motor

    FAQ

    Q1: What kind of data do i neet to provide if i want to order?

    A1: Please kindly tell us your rated voltage, no load speed, load speed, load torque and overall dimension.

    Q2:Do you accept customize?

    A2:Sure,as we have a strong design team,any problems will get our technical answer.

    Q3:How about the quality of products in your company?

    A3:We have high and best quality products and our products get some good feedbacks from clients over the world. Once you got our peoducts with some questions under guarantee, we will provide helps at first time. at the usual time we keep our records about products complaints as low as 1%.

    Q4: Can you send me your price list?
    A4: Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once got your inquiries to make sure you can get the price in time.

    Q5:How can I know the product is suitable for me?

    A5.You provide us the more details information about the product.We will recommend theitem to you according to your detail parameters.After you confirm,we will prepare thesamples to you.Also we will offer some good advances according to your product use.

    Q6: Can I visit your company?

    A6: Yes, welcome to visit our company, but please let us know at least two weeks in advance to help us make sure no other meetings during the day you visit us.
