DC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast Shaker

Masing Motor (Shenzhen) Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap DC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast Shaker from wholesalers

    Buy cheap DC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast Shaker from wholesalers
    • Buy cheap DC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast Shaker from wholesalers
    • Buy cheap DC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast Shaker from wholesalers
    • Buy cheap DC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast Shaker from wholesalers
    • Buy cheap DC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast Shaker from wholesalers

    DC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast Shaker

    Ask Lasest Price
    Brand Name : Masing Motor
    Model Number : MSGM25A370
    Certification : 16949,EU,RoHS,CE,ISO
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100000piece/per month
    Delivery Time : 3-5 work weeks
    • Product Details
    • Company Profile

    DC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast Shaker

    Title:

    2DC3.7V 260RPM High Speed High Torque Brushless 370 Motor with 25mm Gearbox Geared DC Motor For Smart Breast Shaker

    Description:

    • Voltage range:DC3.0v-24v

    • Rated speed :2rpm-2000rpm or Customized

    • Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.

    • Gearbox diameter :Ø25mm , Gearbox material :Metal Gearbox

    • Gear Reduction ratio: 1:10-1:1051 or Customized

    • Motor type selection: Permanent magnet DC brushed motors RF-300,RF-310,RF-370,RS-385,RS-380.RS-365.RS-390

    • Motor Type :DC Brushless Motor and Brushed Motor

    • Direction of motor :CW/CCW available

    • Motor Accessories:Wires,Gear, Connectors, Gearbox, Encoder, Brake, Cool Fan, etc

    • Use: Smart Breast Shaker,Motorcycle smart lock,Meat Grinder, Intelligent Car ,Home Equipment ,Home Appliance, robots,vending machine, medcial device,Paper shredder, smart toilet lid

    • Shaft types: Round ,Flat,Bare ,D-Cut,Pin Hole ,Threaded shaft,Keyway shaft (Can be Customized)

    • Shaft Material: Customized,Carbon Steel or Stainless Steel

    • Meet EU environmental standards: low energy consumption, low noise

    • Quality control
      Raw-material traceability identification
      Finished product inspection

    • Services

      ODM and ODM
      Minor customization
      Design-based customization

    • We can provide samples for testing

    Key attributes:

    Speed(RPM)
    2rpm-2000rpm
    Continuous Current(A)
    10mA-500mA
    Efficiency
    50%-85%
    Warranty
    3Months-1Year
    Place of Origin
    Guangdong, China
    Brand Name
    Masing Motor
    Model Number
    MSGM25A370
    Use
    Smart Breast Shaker,Motorcycle smart lock,Meat Grinder, Intelligent Car,robots,vending machine, medcial device ,Robot Vacuum Cleaner,Home Appliance, door lock,camera,medcial device,Robots, electronic locks, public bicycle locks, relays
    Gearbox Material
    Rohs Metal Gearbox
    Gear Ratio
    1:15-1:1051
    Motor Type
    Brush Motor /Brushless Motor
    Direction of Rotation
    cw or ccw available
    Protect Feature
    Totally Enclosed
    Product Name
    370 brushless gear motor
    Gear box diameter
    φ25mm
    Certificate
    16949,EU ,CE,Rohs,ISO
    Gear Material
    Plastic gears,Powder metallurgy,Metal ,Steel .copper ect
    Rated Voltage
    DC 3v-24v
    Noise
    ≤50DB
    MOQ
    1000Pcs
    Shaft Diameter
    φ4mm
    Shaft Type
    Round/ Flat/Threaded hole/Threaded shaft/Bare /D-Cut /Pin Hole /Keyway shaft
    Motor Life time
    customized or 500hours-2000hours

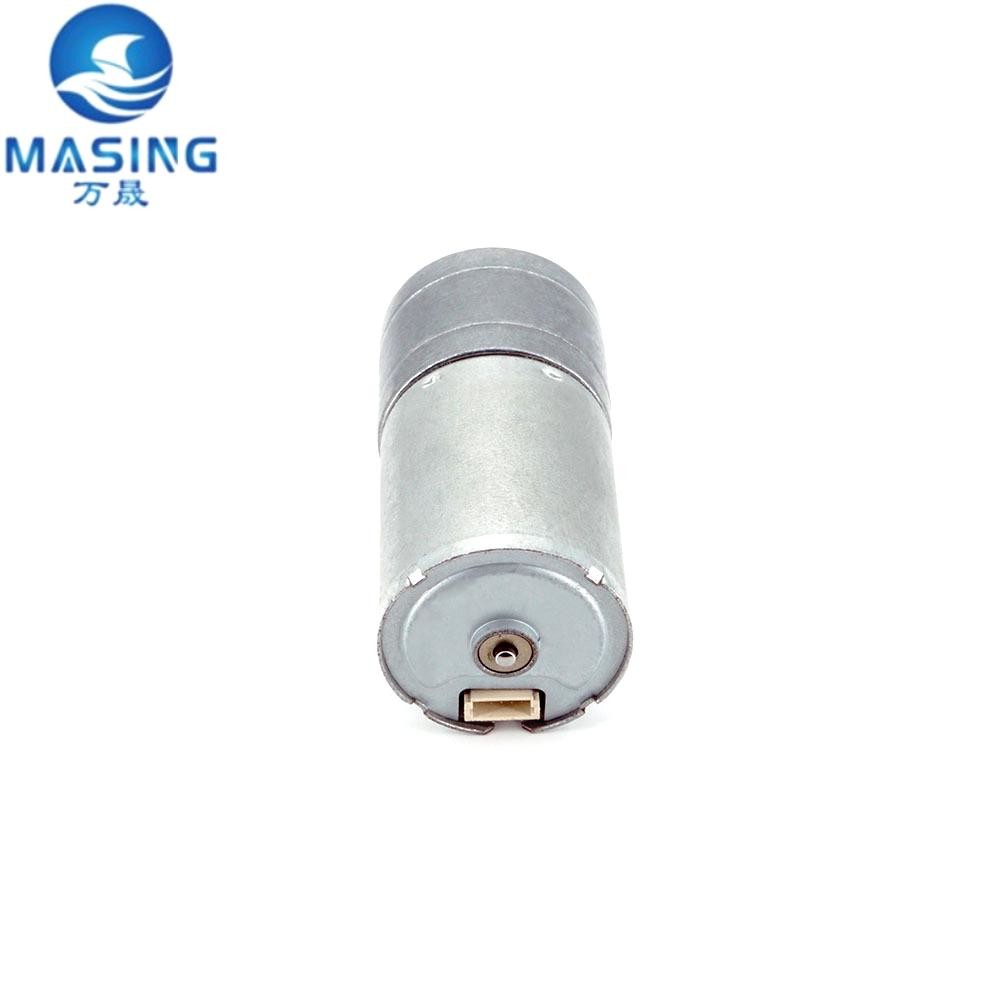

    Product Photo:

    DC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast ShakerDC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast ShakerDC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast Shaker

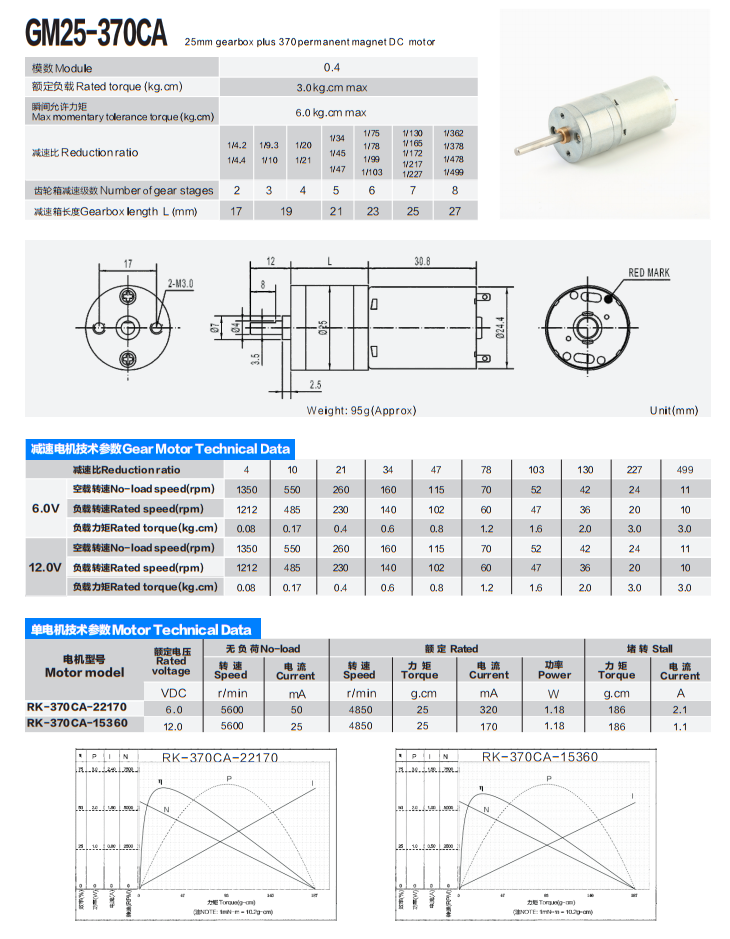

    Product Spec:

    GM25A310 DC Spur Gear Motor Typical Applications:

    Smart Breast Shaker,Motorcycle smart lock,Meat Grinder, Intelligent Car,robots,vending machine, medcial device ,Robot Vacuum Cleaner,Home Appliance, door lock,camera,medcial device,Robots, electronic locks, public bicycle locks, relays

    Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

    Rated Voltage:
    1.2-24V DC
    Reduction Ratio:
    1:10-1:1051
    No-load speed(RPM):
    2~2000rpm
    No-Load Current mA(≤):
    10-500mA
    Rated Speed(RPM):
    1.5-1800rpm
    Rated Current mA(≤):
    80-800mA
    Rated Torque(Kg,cm):
    0.03-10kg,cm
    Stall/Maximum Torque (Kg,cm):
    0.5-25kg,cm
    Stall Current(A) :
    0.5-5A
    Shaft:
    416 Steel, D-cut 3.5mm ,Φ4.0 Length 11.5mm
    Gear:
    Plastic ,steel ,powder gear , copper gear

    DC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast Shaker

    Packaging and delivery:

    Packaging Details
    Strong Carton 1000pcs/box, or as you wish.
    Port
    Shenzhen/Guangzhou/Shanghai
    Selling Units:
    Single item
    Single package size:
    12X10X24mm
    Single gross weight:
    0.045kg

    Supply Ability:

    Supply Ability
    100000 Piece/Pieces per Month

    Lead time:

    Quantity (pieces) 1 - 100 101 - 1000 > 1000
    Lead time (days) 10 15 To be negotiated

    Samples:

    Maximum order quantity: 1piece
    Sample price:

    $5/piece

    Certifications:

    DC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast Shaker

    Factory Show:

    DC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast Shaker

    Product Classification:

    DC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast Shaker

    Applications:

    Meat Grinder, Intelligent Car ,Home Equipment ,Home Appliance, robots,vending machine, medcial device

    Business Machines
    Vending Machines
    Printers
    ATM
    Copiers and Scanners
    Camera and Optical
    Video
    CCTV Cameras
    Projectors
    Lawn and Garden
    Lawn Mowers
    Snow Blowers
    Trimmers
    Leaf Blow

    DC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast Shaker

    FAQ

    Q1:Can you make the gearbox with custom specifications?

    A1:YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience

    Q2: Do you provide the samples?
    A2: YES. Our company can provide the samples to you, and the delivery time is about 5-15 days according to the specification of

    gearbox you need. We charge the sample but it will be refunded once you place formal order.

    Q3:What is your MOQ?

    A3:Our MOQ is 1000pcs. But at the beginning of our business, we accept small order

    Q4: Do you have the item in stock?
    A4: We don't have the item in stock, All products are made as customer's requirement.

    Q5:How can I know the product is suitable for me?
    A5: Firstly , you need to provide us the more details information including voltage, no-load speed, load speed, load torque and shaft length. Then, we will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
