    3V 400rpm Gear Motor Micro Speed Reducer Metal Spur Gear Small Dc Gear Motors 12GA-N20

    Ask Lasest Price
    Brand Name : Masing Motor
    Model Number : MSGM12N20
    Certification : ROHS CE ISO 16949
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100000piece/per month
    Delivery Time : 3-5 work weeks
    • Product Details
    • Company Profile

    3V 400rpm Gear Motor Micro Speed Reducer Metal Spur Gear Small Dc Gear Motors 12GA-N20

    Title:

    3V 400rpm Gear Motor Micro Speed Reducer Metal Spur Gear Small Dc Gear Motors 12GA-N20

    Description:

    • High Efficiency and Performance: 1.5V- 12V DC Spur Geared Motor offers an efficiency of 70%,

    • Voltage:DC1.5V-12V

    • Speed :10rpm-3000rpm or customized

    • Torque :0.05kgf.cm-2.0kgf.cm

    • Gear box size :φ12mm *H10mm

    • Gearbox Material:Copper,steel or customized

    • Gears Material:Copper,steel or customized

    • Shaft diameter :φ3mm

    • Shaft type :D-cut ,Flat,Round,M3,M4,with a hole or customized

    • Motor Type :FF-N10,FF-N20,FF-N30

    • Brush Type :Metal brush or Carton brush

    • Accessories:encoder ,wires ,gears ,fan or customized

    • Low Noise and High Torque: With a torque of 0.1-2kg.cm, this motor operates at a low noise level

    • Customizable Options: We offer various diameter options (12mm, 13mm, 14mm, etc.) and a color that can be customized according to the user's request, allowing for flexibility in design and integration.

    • Free sample testing is available

    • 100% Every product must pass quality inspection before shipping

    Key attributes:

    Speed(RPM)
    10rpm-3000 rpm or customized
    Continuous Current(A)
    customized
    Efficiency
    56%-90%
    Warranty
    Others
    Place of Origin
    Guangdong, China
    Brand Name
    Masing Motor
    Model Number
    12mm Small Dc Gear Motors
    Use
    Beauty products,Car, Electric Bicycle Lock, FAN, Home Appliance, Cosmetic Instrument, SMART HOME, Robot
    Motor Type
    Brush Geared Motor
    Rated Torque
    0.05kgf.cm-2.0kgf.cm
    Rotating direction
    CW/CCW
    Shaft diameter
    φ3mm
    Protect Feature
    Exposed Gearbox 12mm
    Temperature Range
    -40℃ - +60℃
    Gears material
    Sreel,copper or customized
    Life time
    500H-1000H
    Gearbox Diameter
    12mm,13mm,14mm,ect
    Weight
    10g
    Noise
    ≤55DB
    MOQ
    1000Pcs
    Shaft type
    Flat,D-cut,M3,M4,with a hole or customized
    Color
    Customer's Request
    Gearbox size
    φ12mm *H10mm

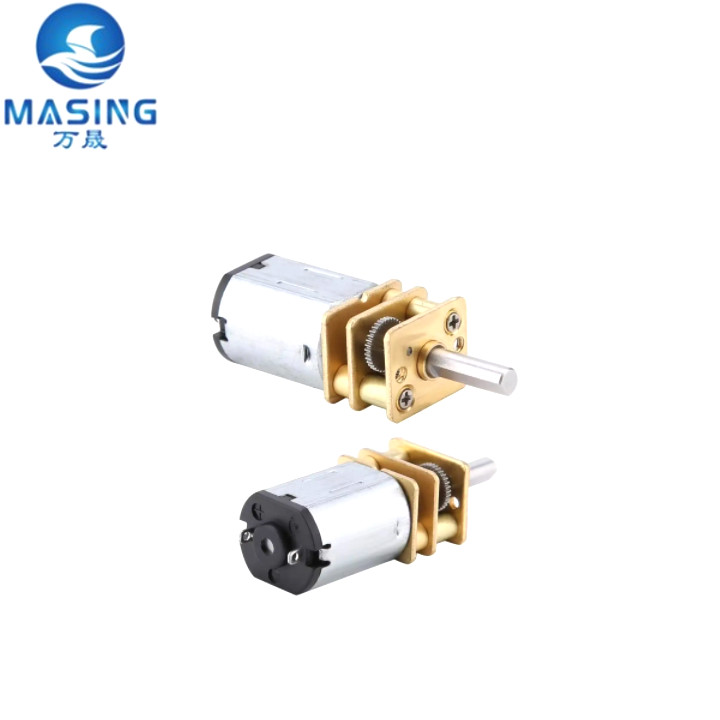

    Product Photo:

    3V 400rpm Gear Motor Micro Speed Reducer Metal Spur Gear Small Dc Gear Motors 12GA-N20

    3V 400rpm Gear Motor Micro Speed Reducer Metal Spur Gear Small Dc Gear Motors 12GA-N203V 400rpm Gear Motor Micro Speed Reducer Metal Spur Gear Small Dc Gear Motors 12GA-N20

    Product Spec:

    N20 Gear Motor Typical Applications:

    Beauty products,Educational robot,Robot sweeper, radar,Electronic Door Lock,Smart Home ,Appliance Smart Robot ,Electric Toys,3D printing,Smart cabinet locks

    Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

    3V 400rpm Gear Motor Micro Speed Reducer Metal Spur Gear Small Dc Gear Motors 12GA-N20

    Packaging and delivery:

    Packaging Details
    Strong Carton 1000pcs/box, or as you wish.
    Port
    Shenzhen/Guangzhou/Shanghai
    Selling Units:
    Single item
    Single package size:
    37X27X24cm
    Single gross weight:
    10.0kg

    Supply Ability:

    Supply Ability
    100000 Piece/Pieces per Month

    Lead time:

    Quantity (pieces) 1 - 100 101 - 1000 > 1000
    Lead time (days) 10 15 To be negotiated

    Samples:

    Maximum order quantity: 1piece
    Sample price:

    $5/piece or Negotiable

    Certifications:

    3V 400rpm Gear Motor Micro Speed Reducer Metal Spur Gear Small Dc Gear Motors 12GA-N20

    Factory Show:

    3V 400rpm Gear Motor Micro Speed Reducer Metal Spur Gear Small Dc Gear Motors 12GA-N20

    Product Classification:

    3V 400rpm Gear Motor Micro Speed Reducer Metal Spur Gear Small Dc Gear Motors 12GA-N20

    Applications:

    Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

    5G communication,Smart home,Beauty products,Educational robot,Robot sweeper, radar,Electronic Door Lock

    3V 400rpm Gear Motor Micro Speed Reducer Metal Spur Gear Small Dc Gear Motors 12GA-N20

    FAQ
    Q1: How to order?
    A1: Send us inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production→Cargo ready → Balance/delivery → Further cooperation.
    Q2: How about Sample order?
    A2: Sample is available for you. Please contact us for details. Contact us

    Q3: Which shipping way is avaliable?
    A3: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.

    Q4: How long is the deliver?
    A4: Devliver time depends on the quantity you order. sually it takes 15-25 working days.

    Q5:Do you accept customize?
    A5: Sure,as we have a strong design team,any problems will get our technical answer.
    Q6:What kind of data do i neet to provide if i want to order?
    A6: Please kindly tell us your rated voltage, no load speed, load speed, load torque and overall dimension.
    Q7:What if i don't know the above data?

    A7: Please contact our salesman to handle,we'll answer your questions patiently.
    Q8: How to confirm the payment?
    A8: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
