Masing Motor (Shenzhen) Co., Ltd
1 Years
| Ask Lasest Price | |
| Brand Name : | Masing Motor |
| Model Number : | MSGP42BL4260 |
| Certification : | ISO CE ROHS 16949 |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 100000piece/per month |
| Delivery Time : | 3-5 work weeks |
Title:
Electric 12v Brushless Dc Motor Customized Manufacturer 24V Planetary Gearbox 42mm Bldc Motor
Description:
Model: PG36BL4260 Product Name:BLDC 4260 Brushless Planetary Reduction DC Motor
Rated Speed:5rpm -3000RPM or customized
Rotating speed is constant and can be made as you required.
Gearbox Size: φ42mm diameter , BLDC 4260 dc motor with planetary gearbox
Certifications:CE,RoHS,IOS9001,REACH,16949
Suitable to small diameter, low noise and big torque application
Direction of motor :CW&CCW available
Working temperature:-40~+60°c
Structure:Built-in driver or External drive
Motor type: Brushless DC Motor & Brushed Motor & BLDC
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC Low noise Long life: 20000hrs Min.
Current protection :Over-current protection Over-voltage protection Under-voltage protection
Supported:OEM and ODM orders
Applications:robotic ,5G,Personal care, home application, industry apparatus, business equipment and medical apparatus,Power Lock ,Electronic Lock ,Optic equipment ,Micro Mechanism, money detcotor, printer ,pump etc
High Efficiency and Performance: 9v-26v DC Planetary Geared brushless Motor offers an efficiency of 90-58%,
Samples can be provided for testing
With stable quality,every product will pass 100% quality inspection before shipping
FG speed feedback signal

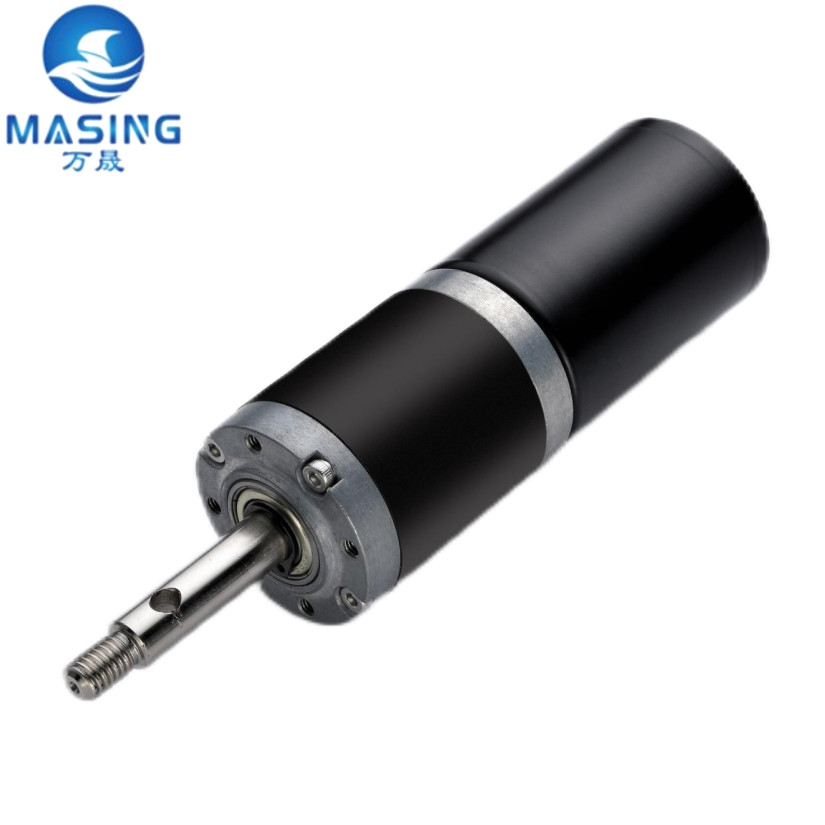

Product Photo:

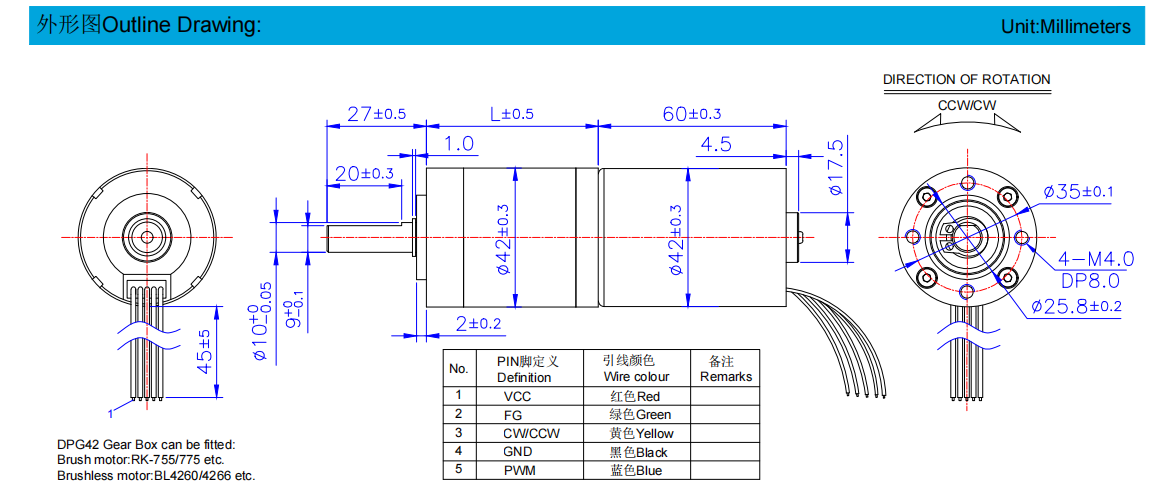

Product Spec:
Micro 42mm DC Brushless Planetary Gear Motor Typical Applications:
SMART HOME,Electric Bicycle Lock, Cosmetic Instrument,robotic ,5G,Personal care, home application, industry apparatus,edical apparatus
Power Lock ,Electronic Lock ,Optic equipment ,Micro Mechanism, money detcotor, printer ,pump etc.
Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.
| Gearbox Data: | |||||||||||||
Number of Stages | 1 | 2 | 3 | 4 | |||||||||
Reduction Ratio(K) | 3.7/5.18 | 14/19/27 | 50/71/100/139 | 189/262/369/516/721 | |||||||||
length of Gear box L(mm) | 34.7 | 45.3 | 56.1 | 67.1 | |||||||||
Rated Torque (kg-cm) | 1.2 | 6 | 20 | 40 | |||||||||
Transient Torque(kg-cm) | 7 | 12 | 40 | 60 | |||||||||
Efficiency(%) | 90% | 81% | 73% | 65% | |||||||||
| Remarks | Output torque =motor torque*reduction ratio*gear box efficiency Output speed =motor speed/reduction ratio | ||||||||||||
| Motor Data: | |||||||||||||
Motor Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||||||
Operating Range | Rated | Current | Speed | Current | Speed | Torque | Power | Efficiency | Current | Torque | |||
| A | rpm | A | rpm | g-cm | W | % | A | g-cm | |||||
| BL4260*** | 9~14V | 12V | 0.30 | 6450 | 1.22 | 5177 | 204 | 10.8 | 73.9 | 4.96 | 1032 | ||
| BL4260*** | 19~26V | 24V | 0.42 | 12000 | 2.12 | 10019 | 432 | 44.4 | 87.2 | 10.74 | 2616 | ||
Packaging and delivery:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$30/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Smart home, smart door locks, personal care, artificial intelligence, automobiles, model airplanes, adult products, security, small home appliances, models, power tools, communication equipment, medical devices, health care equipment, toys and fitness equipment and other products.
Q1:Can you make our logo on the products?
A1:Certainly,logo is easy as most of our products are customizable.So logo in usually logo is necessary.It can be labeled on the motors.
Q2: What's the payment term?
A2:For small amount,we accept 100% payment via paypal.
For large amount,we accept 30% telegraphic transfer(TT) as the deposit. And the rest must be paid before shipping
Q3: How to deliver the goods?
A3: we will deliver via Express such as UPS,FEDEX,DHL,TNT etc.
It is fast and safety.If goods quantity is large,the shipping cost will be cost-effective.
Q4: What is the quality of the planetary reducer?
A4:At present, our gear motors have been sold to Japan, Germany, the United States, the United Kingdom, Indonesia, Singapore and other countries Most customers will give me feedback, saying that they operate well, have low noise and large torque, which is exactly the product they are looking for I think this should be the best word of mouth for our products
Q5:Can I visit your company?
A5:Yes, welcome to visit our company, but please let us know at least two weeks in advance to help us make sure no other meetings during the day you visit us.
Q6: How to select a suitable motor ?
A6:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly
|
|
