Title:
Micro Brushless 12 Volt Gear Reduction Motor 26mm Planetary Gearbox Reducer BLDC 2638 Brushless Motor
Description:
Model: PG26BL2638 Product Name:2638 Brushless DC Planetary Gear Motor
Rated Speed:400rpm-600RPM or customized
Rotating speed is constant and can be made as you required.
Gearbox Size: φ26mm diameter
Motor type :Brushless Motor
Motor size :φ26mm*L38mm
Reduction Ratio :1:18 to 1:22 or customized
Length of Gear box:22mm or customized
Suitable to small diameter, low noise and big torque application
Certificates:CE,RoHS,IOS9001,REACH,16949
Motor default direction:CW&CCW available
Working temperature:-40~+60°c
Power: 1w-30w Maximum torque: 50KG. cm
Applications:Smart home, robots, office supplies, power tools, medical equipment,precision instruments, automotive electronics,etc.
High Efficiency and Performance: 9v-24v DC Spur Geared Motor offers an efficiency of 81%,
We can provide samples for your test.
With stable quality,every product will pass 100% quality inspection before shipping
22mm or others

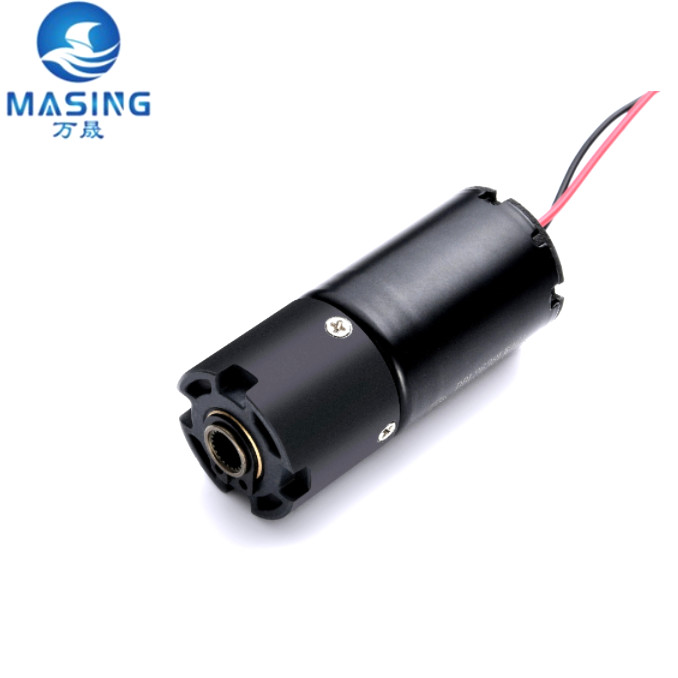

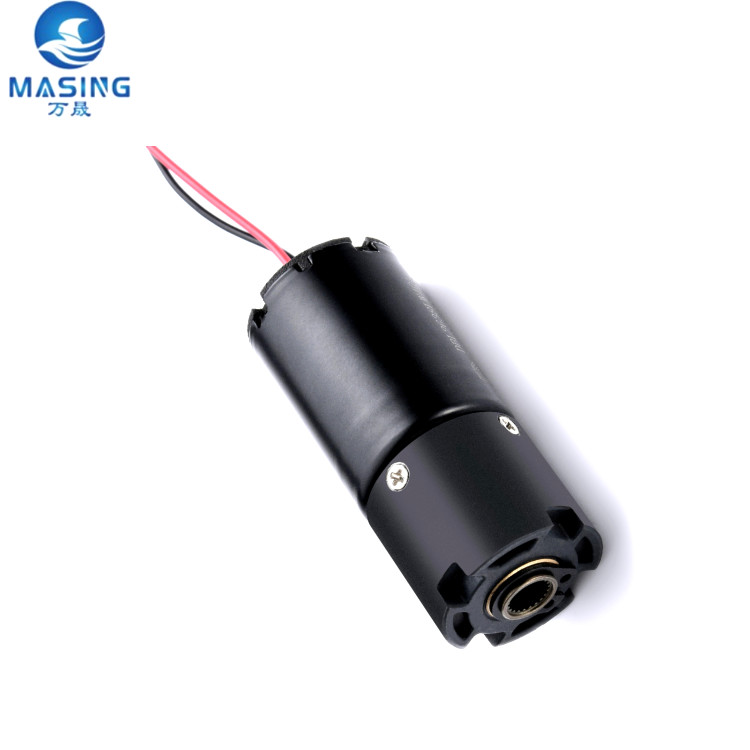

Product Photo:
Product Spec:
Micro brushless 2838 DC Planetary Gear Motor Typical Applications:
Smart home, robots, office supplies, power tools, medical equipment,precision instruments, automotive electronics
Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.
| Gearbox Data: | |||||||||||||
Number of Stages | 1 | 2 | 3 | 4 | |||||||||
Reduction Ratio(K) | 18/22 | ||||||||||||
length of Gear box L(mm) | 22 | ||||||||||||
Rated Torque(kg-cm) | 6 | ||||||||||||
Transient Torque(kg-cm) | 10 | ||||||||||||
Efficiency(%) | 81% | ||||||||||||
| Remarks | Output torque=motor torque *reduction ratio*gear box efficiency Output speed =motor speed/reduction ratio | ||||||||||||
| Motor Data: | |||||||||||||
Motor Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||||||
Operating Range | Rated | Current | Speed | Current | Speed | Torque | Power | Efficiency | Current | Torque | |||
| A | rpm | A | rpm | g-cm | W | % | A | g-cm | |||||
| BL2638*** | 9~16V | 12V | 0.48 | 10600 | 2.53 | 8910 | 210 | 19.2 | 71.2 | 8.4 | 1450 | ||
Packaging and delivery:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$15/piece or Negotiable
Certifications:
Factory Show:
Product Classification:
Applications:
Smart home, smart door locks, personal care, artificial intelligence, automobiles, model airplanes, adult products, security, small home appliances, models, power tools, communication equipment, medical devices, health care equipment, toys and fitness equipment and other products.
