Masing Motor (Shenzhen) Co., Ltd
1 Years
| Ask Lasest Price | |
| Brand Name : | Masing Motor |
| Model Number : | MS10PM10 |
| Certification : | RohS,CE,ISO |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 100000piece/per month |
| Delivery Time : | 3-5 work weeks |
Title:
Dc Planetary Gear Motor 10mm Diameter Low Cost Small Dc Plastic Planetary Micro Gear Motor For Smart Lock Beauty Apparatus
Description:
High Efficiency and Performance: 1.2v-12v DC plastic planatry geared Motor offers an efficiency of 80%-55%,
Applications:Toys,door-lock ,robots ,SMART HOME,Electric Bicycle Lock,Cosmetic Instrument.
Rated Speed:10rpm-500rpm
Match motor size : φ10*13mm,diamter 10mm 13mm length mini motor
Gearbox material:Plastic Gearbox diameter :φ10mm
Suitable to small diameter, low noise and big torque application
Motor default direction:CW&CCW available
Can be match with wheel, One shaft one wheel or one motor, one wheel
Working temperature:-40~+60°c
Low Noise and High Torque: With a torque of 0.01-1kg.cm, this motor operates at a low noise level,
Durable and Long-Lasting: The motor's totally enclosed design provides protection from external factors, while the permanent magnet construction ensures a long lifespan and reliable operation.
We can provide samples for your test.

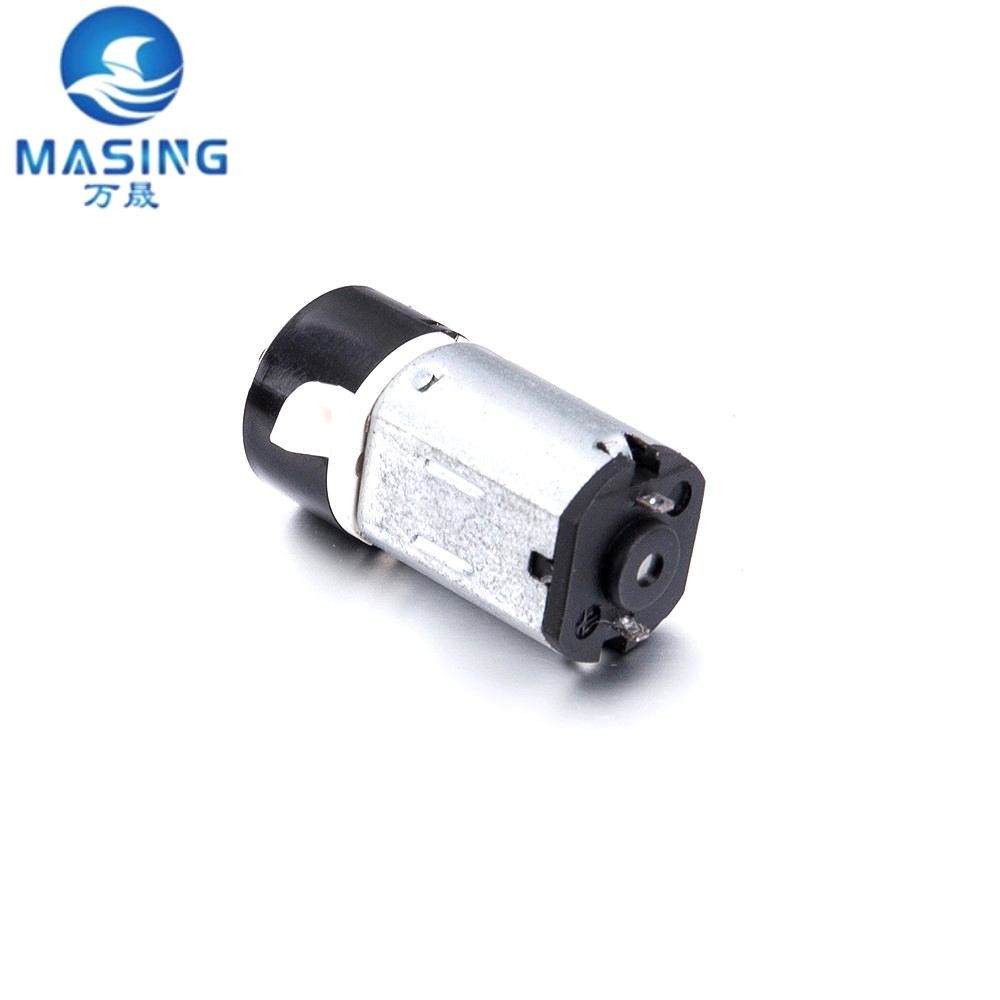

Product Photo:
Product Spec:
10mm DC Plastic Planetary Gear Motor Typical Applications:
door-lock ,robots ,SMART HOME,Electric Bicycle Lock,Cosmetic Instrument.
Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.
| Motor data: | |||||||||
Motor model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| V | mA | r/min | mA | r/min | gfcm | W | gf.cm | mA | |
| MS-10PM10 | 3.7 | ≤65 | 76 | ≤160 | 42 | 240 | / | / | ≤250 |
| Output torque(gear motor):Output torque of motor(max efficiency point)*Reduction ratio*Gearbox efficiency; Output speed(gear motor):Output speedof motor/Reduction ratio | |||||||||
| Gearbox Data: | |||||||||
Number of stages | 1 | ||||||||
Reduction ratio | 171K | ||||||||
Gearbox length "L" | 7 | ||||||||
Gearbox efficiency | 70% | ||||||||
Packaging and delivery:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$15/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,
5G communication,Smart home,door-lock ,robots ,Electric Bicycle Lock,Cosmetic Instrument.
Q1:Are you factory ?
A1:Yes,we are factory..Main product including micro geared motor,brushless DC motor,DC motor and DC planetary gear box ect.
Q2: What is the quality of the planetary reducer?
A2:At present, our gear motors have been sold to Japan, Germany, the United States, the United Kingdom, Indonesia, Singapore and other countries Most customers will give me feedback, saying that they operate well, have low noise and large torque, which is exactly the product they are looking for I think this should be the best word of mouth for our products
A3:We have 100%finished product inspection before delivery and no defective productsreturned.
A5:Yes,we have R&d and Testing Center,customized sample and freight are charged.
A7:As a gearbox manufacturer with R & D capability, we support customers to provide us with gearbox shape, required reduction ratio and output speed We will develop customized products for you Or you can provide your own R & D products, and we will optimize the structure, production and assembly for you
|
|
