Masing Motor (Shenzhen) Co., Ltd
1 Years
| Ask Lasest Price | |
| Brand Name : | Masing Motor |
| Model Number : | MS12PN20 |
| Certification : | 16949,RohS,CE,ISO |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 100000piece/per month |
| Delivery Time : | 3-5 work weeks |
Title:
N20 Micro Planetary Gearbox Motor 6V 150rpm 100g.Cm Plastic Gears Small Motor 12mm For Smart Lock Wireless Charging Mini Motor and Electrici Bike Lock
Description:
High Efficiency and Performance: 1.2v-12v DC Spur Geared Motor offers an efficiency of IE 1,
Usage: door-lock ,robots ,SMART HOME,Electric Bicycle Lock,Cosmetic Instrument.
No-load Speed:100-500RPM or Customized
Rotating speed is constant and can be made as you required.
Match motor type :FF-N20,FF-N10
Suitable to small diameter, low noise and big torque application
Motor default direction:CW&CCW available
Gearbox diameter :φ12mm Gear box,Gearbox material :rohs plastic gearbox
Gears material :Plastic gears
Can be match with wheel, One shaft one wheel or one motor, one wheel
Working temperature:-40~+60°c
Low Noise and High Torque: With a torque of 0.01-1kg.cm, this motor operates at a low noise level
Durable and Long-Lasting: The motor's totally enclosed design provides protection from external factors, while the permanent magnet construction ensures a long lifespan and reliable operation.
We can provide samples for your test.
Product quality is guaranteed, 100% of all goods must pass quality inspection before shipment
Support service:OEM &ODM

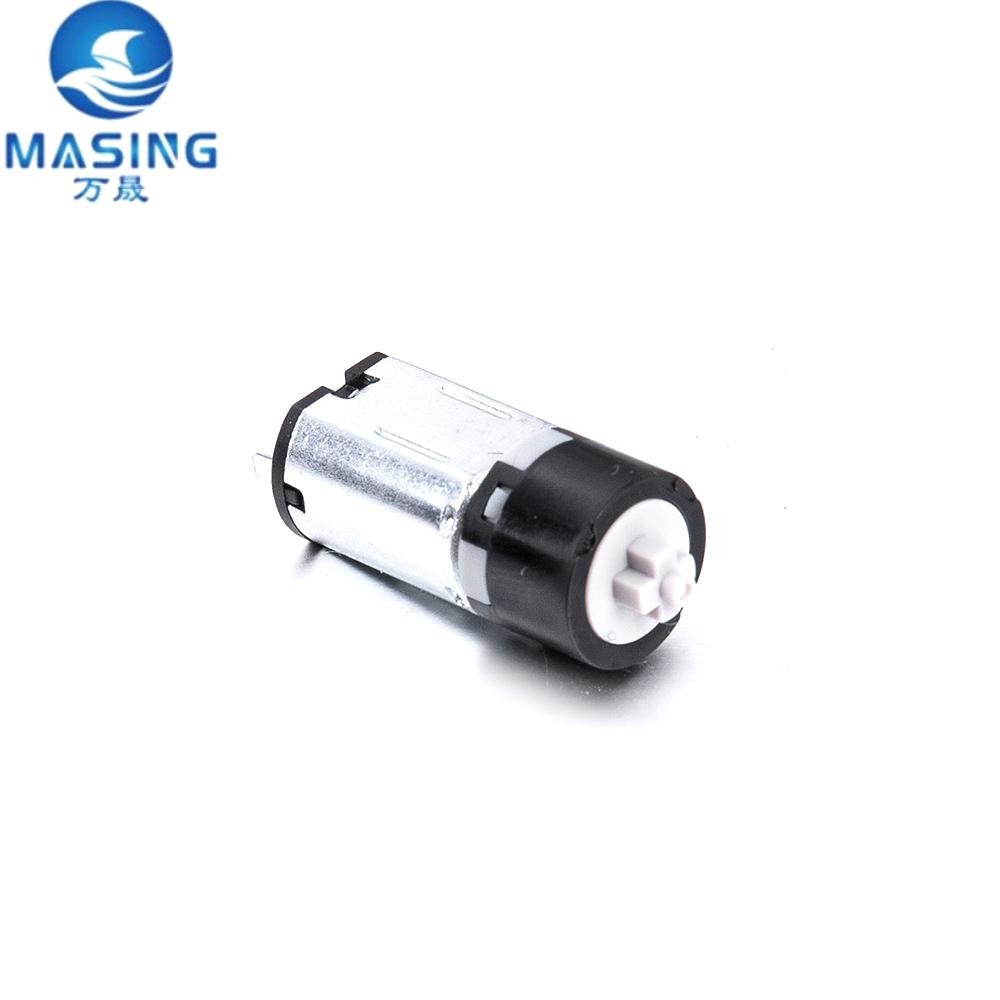

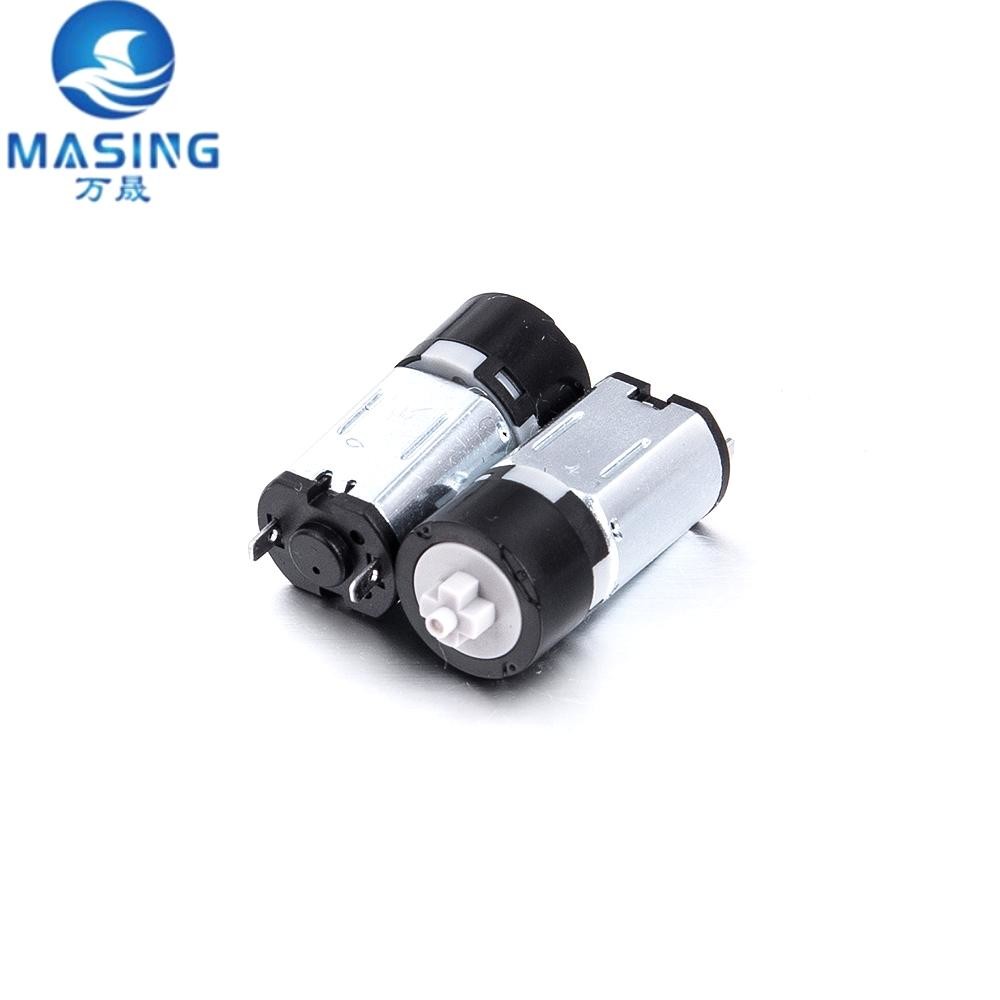

Product Photo:
Product Spec:
10mm DC Plastic Planetary Gear Motor Typical Applications:
door-lock ,robots ,SMART HOME,Electric Bicycle Lock,Cosmetic Instrument.
Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.
| Motor Technical Data | ||||||||||||||||||
| Motormodel No. | Rated voltage | No-load speed | No-load current | Rated speed | Rated torque | Rated current | Output power | Stall torque | Stall current | |||||||||
| VDC | r/min | mA | r/min | g.cm | mA | W | g.cm | A | ||||||||||
| TFF-N20VA-13110 | 2.4 | 14800 | 60 | 12000 | 2.5 | 200 | 0.31 | 13 | 1.20 | |||||||||
| TFF-N20VA-09220 | 5.0 | 14800 | 30 | 12000 | 2.5 | 120 | 0.31 | 13 | 0.52 | |||||||||
| TFF-N20VA-05430 | 12.0 | 16000 | 15 | 12500 | 3.0 | 60 | 0.35 | 13 | 0.25 | |||||||||
| Gear motor Technical Data | ||||||||||||||||||
| Reduction ratio | 120 | |||||||||||||||||
| Length mm | 8 | |||||||||||||||||
| No-load speed rpm | 123 | |||||||||||||||||
| Rated speed rpm | 100 | |||||||||||||||||
| Rated torque kg.cm | 0.18 | |||||||||||||||||
| Max.momentary tolerance torque kg.cm | 0.9 | |||||||||||||||||
Packaging and delivery:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$3/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,
5G communication,Smart home,door-lock ,robots ,Electric Bicycle Lock,Cosmetic Instrument.
Q1:Are you trading company or manufacturer?
A1:Yes,we are factory.We specialize in micro dc motor and dc gear motor for more than 10 years.
Q2: I can't find a suitable motor on your website, can you customize the motor for me?
A2:Yes, we can customize a suitable motor according to our customer's requirements.
A3:We have 100%finished product inspection before delivery and no defective productsreturned.
A5:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
A7:As a gearbox manufacturer with R & D capability, we support customers to provide us with gearbox shape, required reduction ratio and output speed We will develop customized products for you Or you can provide your own R & D products, and we will optimize the structure, production and assembly for you
|
|
