Title:
16mm Diameter 12v High Torque Micro Dc Geared Coreless Planetary Gear Motors For Upscale Toy or Robots
Description:
High Efficiency and Performance: 6v-30v DC Coreless Planetary Geared Motor offers an efficiency of 90-60%
Voltage :DC6.0V-24.0V
Speed:5rpm-3000RPM
Rotating speed is constant and can be made as you required.
Match Motor type :1723 Coreless dc motor ,Gearbox: 16mm metal planetary gear reducer;
Encoder : magnetic encoder available
Suitable to small diameter, low noise and big torque application
Motor default direction:CW/CCW reversible
Shaft Type:Customized ,D-cut ,Flat ,Round ,a hole ect
Working temperature:-40~+60°c
15 years experience in gear and motor design
Commutation: Carbon brush/Graphite brush/Metal brush;
Customizable Options: We offer various diameter options and a color that can be customized according to the user's request, allowing for flexibility in design and integration.
Durable and Long-Lasting: The motor's totally enclosed design provides protection from external factors, while the permanent magnet construction ensures a long lifespan and reliable operation.
OEM & ODM Service:Available
We can provide samples for your test.
Many type products to choose
100% inspection before shipment
Good price and service

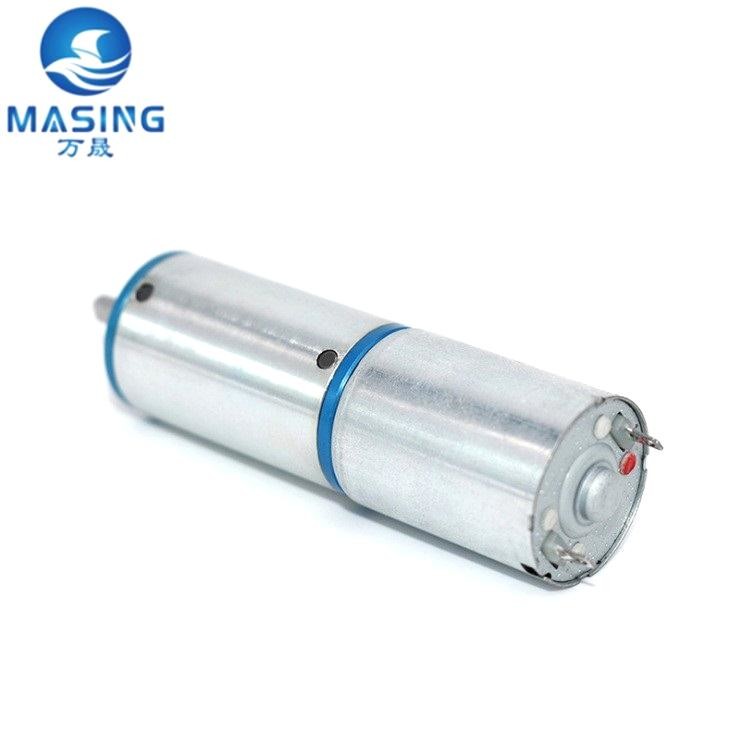

Product Photo:
Product Spec:
16mm DC Coreless Planetary Gear Motor Typical Applications:
Upscale Toy,ROBOTICS,Home Appliance,door-lock ,robots ,SMART HOME,Electric Bicycle Lock,Cosmetic Instrument.,
Logistics Industrial Robot And Hair Curler
Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.
Reducer Ratio | 3.5:1 | 4.8:1 | 12:1 | 17:1 | 23:1 | 43:1 | 58:1 | 79:1 | 107:1 | 150:1 | 204:1 | 276:1 | 375:1 | 509:1 | |||
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | |||
Rated Torque | Kg.cm | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 5 | 5 | 5 | 5 | 5 | ||
Max Momentary Tolerance Torque | Kg.cm | 4 | 4 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 10 | 10 | 10 | 10 | 10 | ||
| L(mm) | 15.4 | 20 | 24.6 | 29.2 | |||||||||||||
Backlash | 0.7 | 0.8 | 1 | 2 | |||||||||||||
Packaging and delivery:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$15/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Upscale Toy,ROBOTICS Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,
Security monitoring,5G communication,Smart home,door-lock ,robots ,Electric Bicycle Lock,Cosmetic Instrument.
Q1:What kind of gear reducer motor can you make ?
A1:We can make DC motors below 1.5v-30v, with power less than 150W and diameter less than 80mm
Q2: Can the gearbox be matched with other motors?
A2:Our standard gearbox can be matched with other motors The matched brush, brushless, hollow cup and stepping motor need to match the shape of our gearbox, or change the shape of our gearbox Matching with other motors also requires custom proofing, otherwise it will involve low efficiency, large loss and short life
A3:As a gearbox manufacturer with R & D capability, we support customers to provide us with gearbox shape, required reduction ratio and output speed We will develop customized products for you Or you can provide your own R & D products, and we will optimize the structure, production and assembly for you
|
|
