    AC Voltage Drive Linear Motor 2021 Vibration Motor For Adult Massage Supplies Gamepad Motor

    Ask Lasest Price
    Brand Name : Masing Motor
    Model Number : MS2021-2
    Certification : 16949,CE,ROHS,ISO
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1000000piece/per month
    Delivery Time : 3-5 work weeks
    • Product Details
    • Company Profile

    AC Voltage Drive Linear Motor 2021 Vibration Motor For Adult Massage Supplies Gamepad Motor

    Title:

    Linear Motor AC Voltage Drive Model 2021 Vibration Motor Voice Coil Actuator/ Voice Coil Motor For Adult Massage Supplies Gamepad Motor

    Description:

    • Rated Input Voltage:1.25Vrms AC, Sine wave

    • Resonance Frequency:f0 : 80±20Hz

    • Rated current:200 mArms max.
    • Acceleration:Min 0.85Grms @f0
    • Direction of motor:CW&CCW available

    • Terminal resistance:(6.8±1Ω)

    • Rising time:Max 70 ms(90% of the steady state)

    • Falling time:Max 75 ms(10% of the steady state)
    • Motor Size: φ20*21mm,just 20mm diamter ,21mm length electric vibrating motor

    • It has a relatively small size but offers stable power output.

    • The vibrating wheel attached can provide additional functions.

    • Weight of the product:(13±2) gram

    • Allowable temperature range:1)Working temperature:-25℃ ∼ +55℃ 2)Storage temperature:-30℃ ∼ +55℃
    • Acoustic noise:Rated voltage, rated load test, background noise not more than 30dB, motor noise 50dB Max
    • Widely used in :Adult Massage Supplies,PS5 Gamepad,Cell phones, Bluetooth, toys,Cosmetic Instrument,

    • Rise time: The time from the moment the power is applied until it reaches 90%of the steady state vibration level
    • Fall Time: The time from the moment the power is turned off until the vibration level reaches .10%..
    • We can provide samples for your test.

    • Every motor must pass quality inspection before shipping

    Key attributes:

    Rated Input Voltage
    1.25Vrms AC, Sine wave
    Continuous Current(A)
    Customized
    Resonance Frequency
    f0 : 80±20Hz
    Warranty
    Others
    Place of Origin
    Guangdong, China
    Brand Name
    Masing Motor
    Model Number
    MS2021-2
    Use
    Adult Massage Supplies,PS5 Gamepad,Cell phones, Bluetooth, toys, Cosmetic Instrument
    Motor Type
    Linear Motor Voice Coil Actuator
    Acceleration
    Min 0.85Grms @f0
    Terminal resistance
    (6.8±1Ω)
    Rising time
    Max 70 ms
    (90% of the steady state)
    Protect Feature
    Totally Enclosed
    Product Name
    Vibration DC Motor
    Falling time
    Max 75 ms
    (10% of the steady state)
    Keywords
    miniature vibration motor
    Motor Diameter
    φ20mm
    Weight
    (13±2) gram
    Noise
    ≤50DB max
    MOQ
    1000Pcs
    Efficiency
    IE1
    Color
    Customer's Request
    Motor Material
    Plastic or Customized

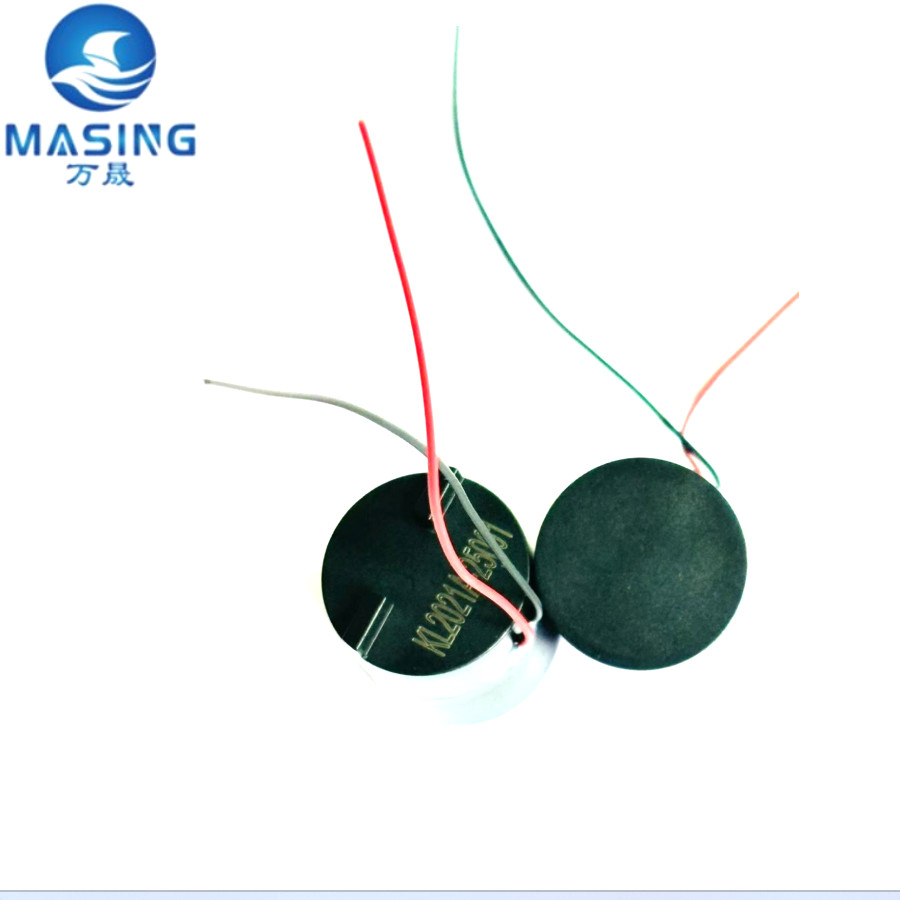

    Product Photo:

    AC Voltage Drive Linear Motor 2021 Vibration Motor For Adult Massage Supplies Gamepad MotorAC Voltage Drive Linear Motor 2021 Vibration Motor For Adult Massage Supplies Gamepad Motor

    Product Spec:

    2021 Linear Motor Voice Coil Actuator/ Voice Coil Motor Typical Applications

    Adult Massage Supplies,PS5 Gamepad,Cell phones, Bluetooth, toys, medical equipment, Home Appliance, Cosmetic Instrument,

    Remark:Voltage,rated torque,speed,curent.power and shaft sze can becustomized asrequirement.

    AC Voltage Drive Linear Motor 2021 Vibration Motor For Adult Massage Supplies Gamepad Motor

    Rated specifications
    No. l t e m s Specification
    3-1
    Rated Input Voltage
    1.25Vrms AC,Sine wave
    3-2
    Resonance Frequency
    f0:80±20Hz
    3-3 Rated current 200 mArms max.
    3-4
    Acceleration
    Min 0.85Grms @f0
    3-5
    Terminal resistance
    (6.8±12)
    3-6 Rising time
    Max 70 ms
    (90%of the steady state)
    3-7 Falling time
    Max 75 ms
    (10%of the steady state)
    3-8 Acoustic noise Rated voltage,rated load test,background noise not m
    ore than 30dB,motor noise 50dB Max
    3-9 Weight of the product (13±2)gram
    3-10 Allowable temperature range 1):-25℃~+55℃
    Working temperature
    2):-30℃~+55℃
    Storage temperature
    3-11 Standard test condition See section 5.
    3-12 Appearance No defect detrimental to performance

    Reliability
    After the following test items are completed,when the rated voltage is input at roomtemperature,the re
    quirements of the following table must be met
    No.
    It em s

    Test condition
    1
    High temperature
    storage test
    Expose to +80℃ for 96 hours and measure after 2Hr at RT.
    2 Low temperature
    storage test
    Expose to -40℃ for 96 hours and measure after 2Hr at RT.
    3
    Humidity test

    Expose to+60℃,80%RH for 96 hours and measure after 2Hr at RT.
    4
    Thermal
    shock test

    80℃/-40℃,each 30 min,Test duration is 24 cycles and re-measure aft
    er
    2Hr at RT.
    5 Free-drop test 150g dummy Jig,drop samples 1.2M to the iron plate above 10mm
    thickness in 6 sides.repeat twice,total 12 times
    6 Life test Voltage1.25Vrms AC,Sine wave
    Temperature:20±2℃
    Humidity:65±5%Rh
    Lock the motor in JIG
    Test mode
    1.0sec on ---1.0sec off
    Test time:800H

    Packaging and delivery:

    Packaging Details
    Strong Carton 100pcs/box, or as you wish.
    Port
    Shenzhen/Guangzhou/Shanghai
    Selling Units:
    Single item
    Single package size:
    37X27X24cm
    Single gross weight:
    13g

    Supply Ability:

    Supply Ability
    100000 Piece/Pieces per Month

    Lead time:

    Quantity (pieces) 1 - 100 101 - 1000 > 1000
    Lead time (days) 10 15 To be negotiated

    Samples:

    Maximum order quantity: 1piece
    Sample price:

    $5/piece or Negotiable

    Certifications:

    AC Voltage Drive Linear Motor 2021 Vibration Motor For Adult Massage Supplies Gamepad Motor

    Factory Show:

    AC Voltage Drive Linear Motor 2021 Vibration Motor For Adult Massage Supplies Gamepad Motor

    Product Classification:

    AC Voltage Drive Linear Motor 2021 Vibration Motor For Adult Massage Supplies Gamepad Motor

    Applications:

    Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,

    Security monitoring,5G communication,Smart home,Cell phones, Bluetooth, toys, medical equipment,

    mini fans, Home Appliance, Cosmetic Instrument, SMART HOME, Robot

    AC Voltage Drive Linear Motor 2021 Vibration Motor For Adult Massage Supplies Gamepad Motor

    FAQ

    Q1: What is the advantage about your company?

    A1. a.Advanced manufacturing equipment

    b.More than 15years motor design,manufacturing experience

    c.Flexible customization of OEM/ODM orders

    d.Advanced automated production equipment

    e.ISO9001,ISO14001,TS16949 system certificati

    Q2:Can I have samples for testing first?

    A2:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.

    Q3: What's the minimum order quantity?

    A3:Our minimum order quantity depends on different motor models, please email us to check. Also, we usually do not accept personal use of motor orders.

    Q4: What's your shipping method for motors?

    A4: For samples and packages less than 100kg, we usually suggest express shipping; For heavy packages, we usually suggest air shipping or sea shipping. But it all depends on our customers' needs.

    Q5:What certifications do you have?

    A5: We currently have CE ,ISO,16949 and ROSH certifications.
