Masing Motor (Shenzhen) Co., Ltd
1 Years
| Ask Lasest Price | |
| Brand Name : | Masing Motor |
| Model Number : | MSPG36BL3640 |
| Certification : | 16949,RohS,CE,ISO |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 1000000piece/per month |
| Delivery Time : | 3-5 work weeks |
Title:

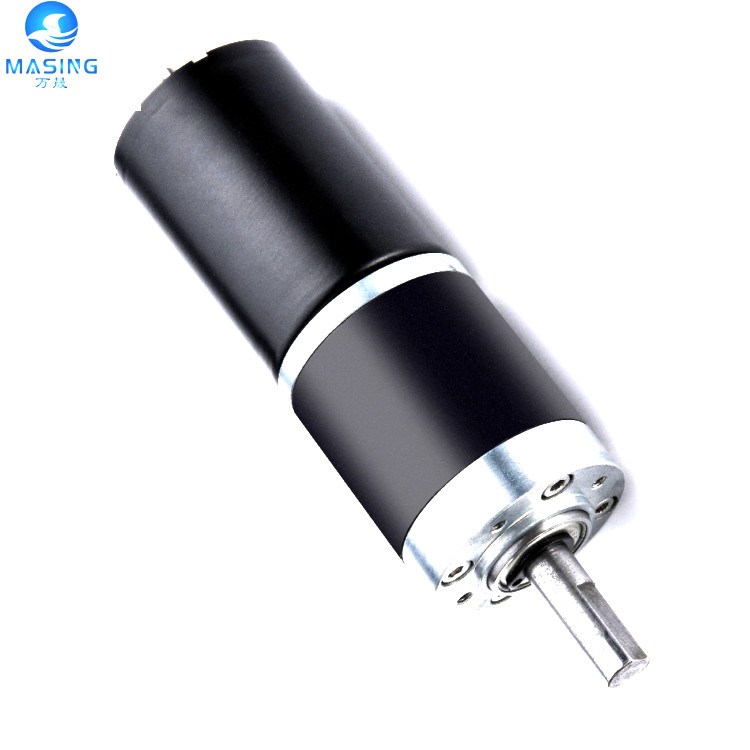

BL3640 Brushless Motor With 36mm Planetary Gear Box DC Bldc Planetary Gear Motor For Robot
Description:
High Efficiency: The motor boasts an efficiency of 90% to 66%, ensuring optimal energy usage and minimizing energy waste, as requested by users looking for eco-friendly options.
Rated Voltage:6v-24v DCMotor
Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.
Motor Type:Brushless motor or Brushed motor
Motor Model:BL3640,BL3650,BL3657
Motor size :Diameter 36mm .40mm Length
Output Speed :2rpm -1000rpm
Rated Torque:0.1NM-10NM
Motor voltage speed torque eccentric wheel size and material can be customized according to customerrequirements
Direction of motor :CW/CCW available
Motor Power:1W-100W High Power
Gearbox diameter :φ36mm
Gearbox type :Planetary gear box
Gears Material:Plastic ,Copper ,steel,Powder metallurgy or customized
Working temperature:-40~+60°c
Life time:500H-3000H
Certification:16949,CE,Rohs,ISO
Applications :Robotics Automation, Smart Home, Electric Curtain,office supplies, power tools, medical equipment,
We can provide samples for your test.
Every product must pass quality inspection before shipment
office supplies, power tools, medical equipment,
Robotics Automation, Smart Home, Electric Curtain, Medical Imaging Equipment,Manufacturing Plant
Product Photo:
Product Spec:
3640 Brushless Motor DC Planetary DC GEAR MOTOR Typical Applications
Robotics Automation, Smart Home, Electric Curtain,Robot Vacuum Cleaner,Cosmetic instrument, Smart Home, Medical Imaging Equipment,Manufacturing Plant Robots,,Car flip screen,Intelligent Trash Can ,Power Tools, Home Application, Personal Care,
Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.
NOTE:The left side of redline area can continous work
| Gearbox Data: | |||||||||||||||||
| Number of Stages | 1 | 2 | 3 | 4 | |||||||||||||
| Reduction Ratio(K) | 3.7/5.18 | 14/16/19/22/27 | 50/59/71/82/100/115 /139 | 189/218/262/304/369/427/516 /596/721 | |||||||||||||
| length of Gear box L(mm) | 27 | 33 | 39.2 | 45.4 | |||||||||||||
| Rated Torque(kg-cm) | 1 | 4 | 18 | 35 | |||||||||||||
| Transient Torque(kg-cm) | 6 | 10 | 38 | 60 | |||||||||||||
| Efficiency | 90% | 81% | 73% | 65% | |||||||||||||
| Remarks | Output torque=motor torque*reduction ratio*gear box efficlency Output speed=motor speed/reducion ratio | ||||||||||||||||
| Motor Data: | |||||||||||||||||
Motor Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||||||||||
Operating Range | Rated | Current | Speed | Curent | Speed | Torque | Power | Effidency | Current | Torque | |||||||
| A | rpm | A | rpm | g-cm | W | % | A | g-cm | |||||||||
| BL3640*** | 9~14V | 12V | 0.56 | 7930 | 2.35 | 6404 | 270 | 17.8 | 63.0 | 9.87 | 1404 | ||||||
| BL3657*** | 19~26V | 24V | 0.20 | 5600 | 1.12 | 4750 | 484.5 | 23.6 | 88.0 | 6.26 | 3196 | ||||||
Packaging and delivery:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 5000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$20/piece or Negotiable
Certifications:
Factory Show:
Product Classification:
Applications:
System,Electronic and electrical tools,automation industry, bank equipments,payment equipments,vending machines,power door
lock,electric door loc
Q3: Can you customize according to my specification?
A3:Sure,we have a profession R&D centre ,we can customize according to your specification
Q4: What's the MOQ?
A4:We try to meet every client's requests and don't want to disappoint our clients.
So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.
Q5:What's the payment term?
A5:For small amount,we accept 100% payment via paypal.
For large amount,we accept 30% telegraphic transfer(TT) as the deposit and the rest must be paid before shipping.
|
|
