| Brand Name : | Masing Motor |
| Model Number : | MSBL3650 |
| Certification : | 16949,RohS,CE,ISO |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 1000000piece/per month |
| Delivery Time : | 3-5 work weeks |
Title:
High Efficiency Low Noise 12v 5000rpm High Speed Brushless Dc Motor 24V BLDC3650 Motor
Description:
High Efficiency: The motor boasts an efficiency of IE 3, ensuring optimal energy usage and minimizing energy waste, as requested by users looking for eco-friendly options.
Motor Size: φ36mm*L50mm,diamter36mm ,Length 40mm DC brushless motor
Structure selection:Built-in driver or external driver
Rated Voltage:DC 6volt-24volt
Motor voltage speed torque eccentric wheel size and material can be customized according to customerrequirements.
Forward and reverse functions:CW/CCW available
Motor Type :Brushless Motor ,BLDC
Bearing type :Oi Bearing or Ball Bearing
BLDC Motor life:-3000H(Oi Bearing) and ~5000H(BallBearing)
Signal output function:FG Signal
Pulse width speed regulation funtion:PWM Control
Customizable: The motor is customizable to meet specific user needs, allowing for adjustments to be made to suit various applications, as requested by the user.
Protection :1.Locked RotorProtection 2.Overcurrent protection
Working temperature:-40~+60°c
Power:1W-30W(Internal Drive) and 1W-50w(Extnal Drive)
Connection Mode:B Model
Certification:16949,CE,Rohs,ISO
Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.
Applications :Smart home, robots, office supplies, power tools, medical equipment, precision instruments, automotive electronics,
Toys,Massager ,Robot,Robot Vacuum Cleaner,Car flip screen,Intelligent Trash Can ,Power Tools, Home Application, Personal Care,Car, Electric Bicycle, FAN,, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,
We can provide samples for your test.
Quality assurance: Each product must pass 100% quality inspection before shipping
Smart home, robots, office supplies, power tools, medical equipment, precision instruments, automotive electronics,Robot,Electric curtain,Robot Vacuum Cleaner,Cosmetic instrument, Smart Home, Medical Imaging Equipment,Toys,Massager

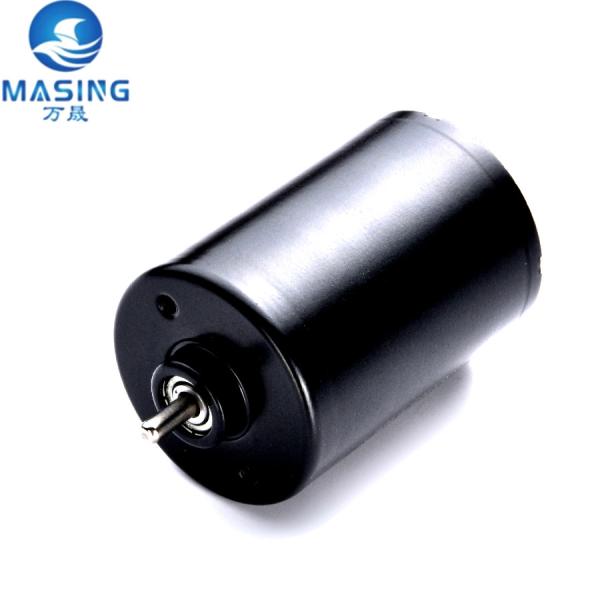

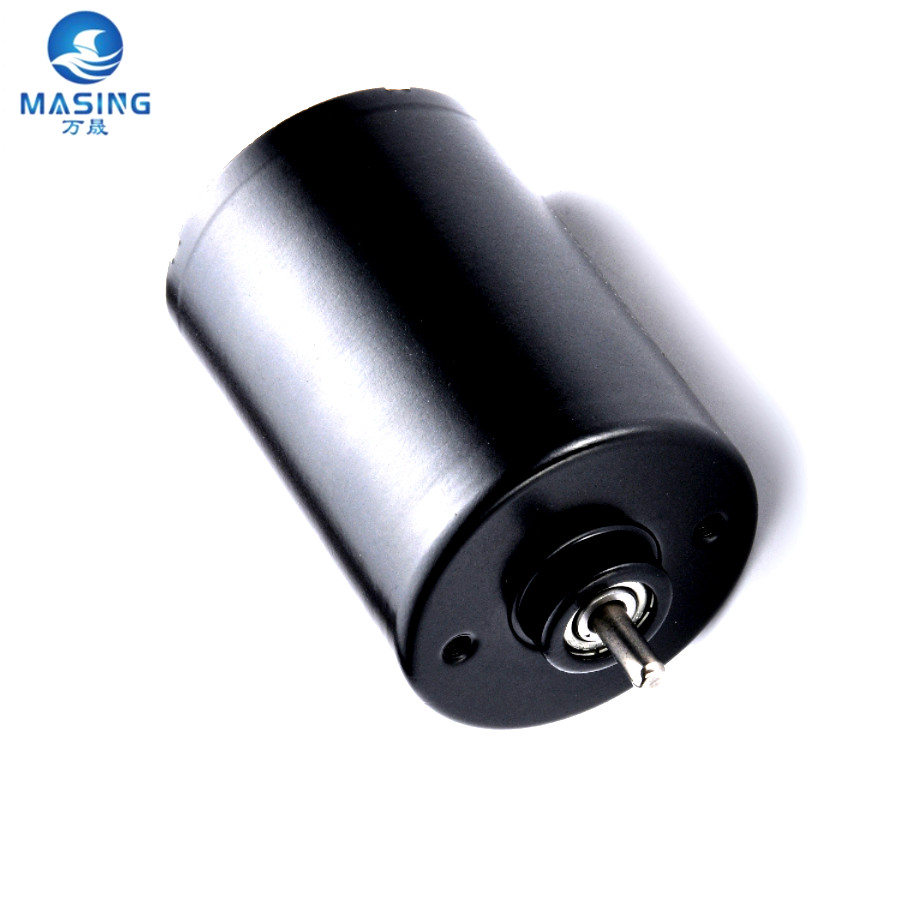

Product Photo:
Product Spec:
BLDC 3650 Brushless DC Motor Typical Applications
Smart home, robots, office supplies, power tools, medical equipment, precision instruments, automotive electronics,Robots,Toys,Massager ,Robot Vacuum Cleaner,Car flip screen,Intelligent Trash Can ,Power Tools, Home Application, Personal Care,Car, Electric Bicycle, FAN,, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,
Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.

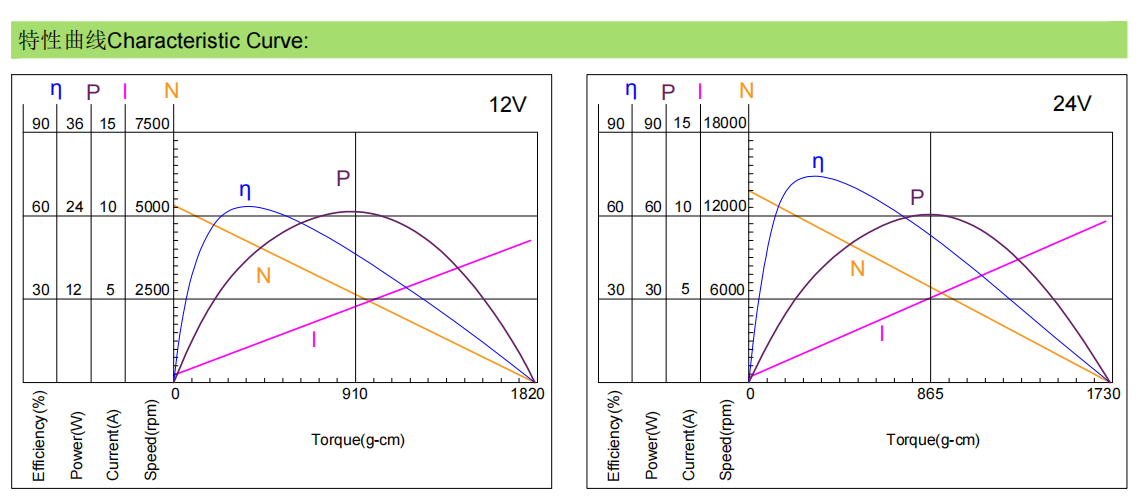

| Motor Data: | |||||||||||
Motor Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||||
Operating Range | Rated | Current | Speed | Current | Speed | Torque | Power | Efficiency | Current | Torque | |
| A | rpm | A | rpm | g-cm | W | % | A | g-cm | |||
| BL3650*** | 9~14V | 12V | 0.46 | 5300 | 1.98 | 4301 | 342 | 15.1 | 63.5 | 8.53 | 1813 |
| BL3650*** | 19~26V | 24V | 0.32 | 13800 | 1.76 | 11678 | 265 | 31.8 | 75.3 | 9.69 | 1725 |
Packaging and delivery:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 5000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$15/piece or Negotiable
Certifications:
Factory Show:
Product Classification:
Applications:
| Others application | ||||
| Business | Vending Machines | Printers | ATM | Copiers and Scanners |
| Camera and Optical | Video | Cameras | Projectors | Car |
| Lawn and Garden | Lawn Mowers | Snow Blowers | Trimmers | Leaf Blowers |
Q1: How to order?
A1:send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production→cargo ready → balance/delivery → further cooperation.
Q2:Do you offer some kinds of accessories like encoder, PCB, connector, soldering wired for the motor ?
A2:We specialize in motors, instead of accessories. But if your annual demand reaches a certain amount, we will apply to the engineer for offering the accessories.
Q3: How about Sample order?
A3: Sample is available for you. please contact us for details. Contact us.
Q4: How long is the deliver?
A4: Devliver time depends on the quantity you order. sually it takes 15-25 working days.
|
|
