| Brand Name : | Masing Motor |
| Model Number : | MSBL2430 |
| Certification : | RohS,CE,iSO,16949 |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 1000000piece/per month |
| Delivery Time : | 3-5 work weeks |
Title:
BL2430 Inner Rotor Brushless Motor 5G Base Station Motor 370 Brushless Motor Electric Curtain DC Brushless Motor
Description:
Voltage range:DC 6v-24V
Rated Speed:Adjustable speed motor 2000-10000RPM
The motor speed is proportional to the motor voltage
Rated torque :10gf.cm-150gf.cm
The toraue of the motor is nronortional to the speed of the motor

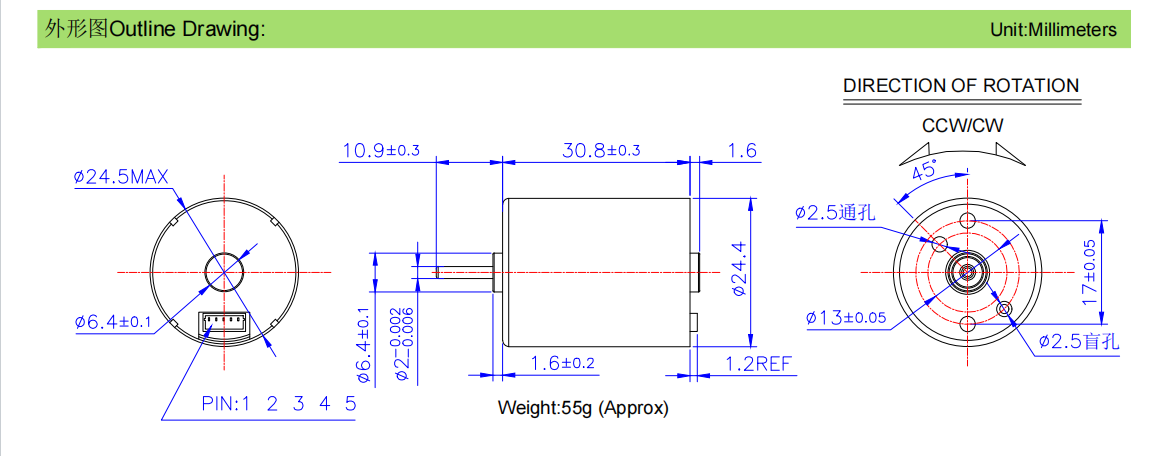

Motor Size: φ24.4mm*L30.8mm,diamter 24.4mm , Length 30.8mm DC brushless motor
Suitable to small diameter, low noise and big torque application
Direction of motor :CW&CCW available
Shaft diameter :φ2.0mm
Shaft material:Steel or others
Motor type :Brushless Motor
Can be match with wheel, One shaft one wheel or one motor, one wheel
Motor voltage speed torque eccentric wheel size and material can be customized according to customerrequirements.
Working temperature:-40~+60°c
Rotating speed is constant and can be made as you required.
Structure selection:Built-in driver or external driver
Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.
Widely used in :5G Base Station,Electric Curtain,Power Tools, Home Application, Personal Care,Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner
We can provide samples for your test.
Quality assurance: Each product must pass the quality inspection before shipping
5G Base Station,Electric Curtain,Robots,Cosmetic instrument, Smart Home, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner
Product Photo:
Product Spec:
BLDC 2430 Brushless DC Motor Typical Applications
5G Base Station,Electric Curtain,Robots,Cosmetic instrument, Smart Home, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner
Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.
| Motor Data: | |||||||||||
Motor Model | Votage | No Load | At Maximum Efficiency | Stall | |||||||
Operating Range | Rated | Current | Speed | Current | Speed | Torque | Power | Efficiency | Current | Torque | |
| A | rpm | A | rpm | g-cm | W | % | A | g-cm | |||
| BL2430*** | 9~14V | 12V | 0.17 | 8000 | 0.67 | 6380 | 83.1 | 5.4 | 67.7 | 2.65 | 411 |
| BL2430*** | 19~26V | 24V | 0.05 | 4600 | 0.18 | 3550 | 67.2 | 2.4 | 60.0 | 0.58 | 295 |
Packaging and delivery:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 5000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$15/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,
5G communication,Smart home
Q1: What's the price?
A1: We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.
Q2: What's the MOQ?
A2: We try to meet every client's requests and don't want to disappoint our clients.So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.
Q3: What's the delivery time?
A3:At the first we have an schedule,the earlier you place order,the fater we finish the production.
In the slack season,we can make sure the delivery time is by one month.
In the busy season,we need more than one month if your quantity is large.
The most important,we can provide free overtime prodution if your order is really urgent.
Q4: Can you send some samples before the order?
|
|
