12V 5V Brushless DC Motor High Speed BLDC Motor Low Noise High Power

Ask Lasest Price
Brand Name :	Masing Motor
Model Number :	MSBL2820
Certification :	ROHS CE ISO 16949
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	1000000piece/per month
Delivery Time :	3-5 work weeks

Add to Cart

Product Details
Company Profile

12V 5V Brushless DC Motor High Speed BLDC Motor Low Noise High Power

Title:

OEM Factory Customized 5v 12v DC Brushless Motor High Power High Speed Low Noise Dc Motor

Description:

Voltage range:DC 5Volt-12Volt or customized
Rated Speed:1000-10000RPM
Rotating speed is constant and can be made as you required.
Motor Size: φ28mm*L20mm,diameter 28mm,Length 20mm brushless motor
Suitable to small diameter, low noise and big torque application
Direction of motor :CW&CCW Available
Shaft material:Steel or Carbon steel shaft or customized
Shaft diameter :φ2.3mm or customized
Shaft type:Flat ,Round ,D-cut ,with a Hole ,Threaded shaft ,Threaded hole ect
Structure :Built-in drive, external drive
Bearing type :Oil bearing or ball bearing
Life Expectancy:3000H(Oil Bearing) or 5000H(ball bearing)
Motor type :BLDC motor/Brushless motor
Working temperature:-40~+60°c
Connection Mode:A
Clockwise Rotation/Counter Clockwise Rotation
Signal Function Available
PWM Countrol(Standard)
Locked Rotor Protection

Rated Power :1W-10W(Internal Drive)

Widely used in :Smart home, robots, office supplies, power tools, medical equipment,precision instruments, automotive electronics,Toys,FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment
We can provide samples for your test.

Quality assurance: Each product must pass 100% quality inspection before shipping

Key Attributes:

No-load Speed(RPM)

5000RPM

Continuous Current(A)

130mA

Efficiency

51.7%

Warranty

Others

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MSBL2820

Use

,SMART HOME, Medical Imaging Equipment,Toys,Robots,

office supplies, power tools, medical equipment,

precision instruments, automotive electronics,Electric curtain

FAN, Home Appliance, Cosmetic instrument

Motor Type

Brushless

Rated Voltage

5Volt-12volt

Structure

Built-in drive or external drive

Commutation

Brushless

At Maximum Efficiency speed

3768rpm

At Maximum Efficiency Torque

27.4g-cm

At Maximum Efficiency Power

1.1W

Keywords

BLDC2820 brushless motor 5V

Shaft Diameter

φ2.3mm

Weight

48g

Noise

≤55DB

MOQ

1000Pcs

Life Expectancy

3000H(Oil Bearing),5000H(Ball Bearing),

Color

Customer's Request

Motor Size

φ28mm*L20mm

Product Photo:

12V 5V Brushless DC Motor High Speed BLDC Motor Low Noise High Power

Product Spec:

BLDC 2820 Brushless Motor Typical Applications

office supplies, power tools, medical equipment,precision instruments, automotive electronics,Electric curtain

Toys,Robots, Robot vacuum cleaner,Electric Bicycle, FAN, Home Appliance, Cosmetic instrument,SMART HOME, Medical Imaging Equipment

Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.

12V 5V Brushless DC Motor High Speed BLDC Motor Low Noise High Power

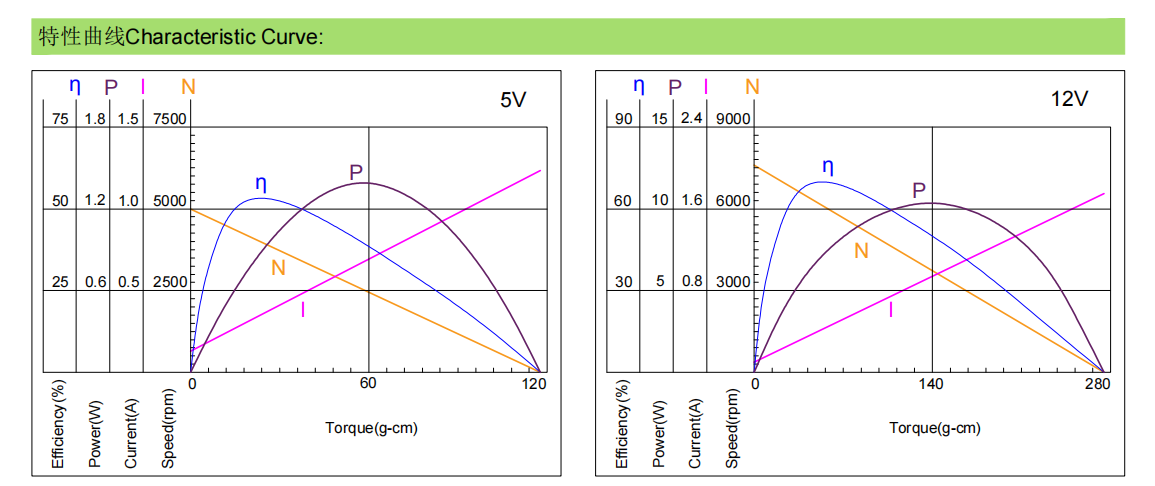

Motor Data:
Motor Mode	Votage		No Load		At Maximum Efficiency					Stall
	Operating Range	Rated	Current	Speed	Current	Speed	Torque	Power	Efficiency	Current	Torque
	Operating Range	Rated	A	rpm	A	rpm	g-cm	W	%	A	g-cm
BL2820***	2~6V	5V	0.13	5000	0.41	3768	27.4	1.1	51.7	1.27	111
BL2820***	9~14V	12V	0.10	7650	0.42	6176	53.1	3.4	66.9	1.75	275

Packaging and delivery:

Packaging Details

Strong Carton 250pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

48g (Approx)

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$15/piece or Negotiable

Certifications:

Factory Show:

Product Classification:

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home

FAQ

Q1: What is the advantage about your company?
A1: a.Advanced manufacturing equipment b.More than 15years motor design,manufacturing experience

c.Flexible customization of OEM/ODM orders d.Advanced automated production equipment

e.ISO9001,ISO14001,TS16949 system certification

Q2: Why should I choose your products?

A2:Our products are high quality and low price.

Q3: The logo and the color can be customized?
A3: Yes, we welcome you to sample custom.

Q4: What is your guarantee for the products?
A4: We can offer the technical support and spare parts for the repair if any quality problems, and will follow the problems until you are satisfied.

Q5:Do you offer a guarantee for the products?
A5: If you have any issue with our product, simply send us a message Contact us. Your problem will be solved within 7* 24 hours.And if there is quality problem for product,we will replenish for you.

Q6:Can you provide OEM or ODM service?
A6: Yes, OEM and ODM are both welcomed..
