Masing Motor (Shenzhen) Co., Ltd
1 Years
| Ask Lasest Price | |
| Brand Name : | Masing Motor |
| Model Number : | MSBL3926 |
| Certification : | RohS,CE,ISO,16949 |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 1000000piece/per month |
| Delivery Time : | 3-5 work weeks |
Title:
12v 6000rpm CW&CCW Brushless Dc Outrunner Motor 3 Phase High Torque24v Dc Brushless Motor For Massager Gun
Description:
Voltage range:DC 6v-30V
Rated Speed:1000RPM-10000RPM or Customized
Rotating speed is constant and can be made as you required.
Rated torque :10gf.cm-700gf.cm
The torque of the motor is nronortional to the speed of the motor
Motor Size: φ39mm*L26mm,diameter 39mm , Length 26mm DC brushless motor
Suitable to small diameter, low noise and big torque application
Direction of motor :CW&CCW available
Shaft diameter :φ6mm,D-cut or Customized
Shaft material:Carbon steel shaft, stainless steel shaft
Shaft type :D-cut ,Round ,Flat ,M6 ,with a hole or others
Motor type :Brushless Motor or BLDC Motor
Can be match with wheel, One shaft one wheel or one motor, one wheel
Motor voltage speed torque eccentric wheel size and material can be customized according to customerrequirements.
Working temperature:-40~+60°c
Structure selection:Built-in driver or external driver
Widely used in :Robots, office supplies, power tools, medical equipment,precision instruments, automotive electronics,
5G Base Station,Electric Curtain,Power Tools, Home Application, Personal Care,Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner
Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.
We can provide samples for your test.
Quality assurance: Each product must pass the quality inspection before shipping
Smart home, robots, office suppliers, precision instruments, automotive electronics, 5G Base Station,Electric Curtain,Robots,Cosmetic instrument, Smart Home, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner

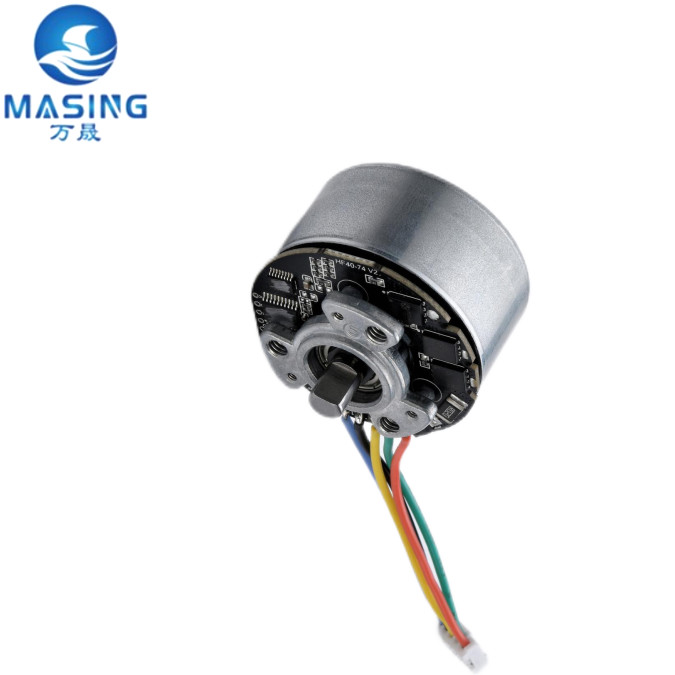

Product Photo:
Product Spec:
BLDC 3926 Brushless DC Motor Typical Applications
Smart home, robots, office suppliers, precision instruments, automotive electronics,5G Base Station,Electric Curtain,Power Tools, Home Application, Personal Care,Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner,sweeping robot,electric wheelchair,paper shredder ,lawn mower,range hood,dishwasher
Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.
| Motor Data: | |||||||||||
Motor Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||||
Operating Range | Rated | Current | Speed | Current | Speed | Torque | Power | Efficiency | Current | Torque | |
| A | rpm | A | rpm | g-cm | W | % | A | g-cm | |||
| BL4026*** | 6~9V | 7.4V | 0.51 | 3676 | 2.04 | 2941 | 350 | 10.6 | 70.0 | 8.17 | 1750 |
| BL4026*** | 9~14V | 12V | 0.82 | 6000 | 3.24 | 4770 | 565 | 17.2 | 78.2 | 13.2 | 2838 |
Packaging and delivery:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 5000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$15/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,
5G communication,Smart home,sweeping robot,electric wheelchair,paper shredder ,lawn mower,range hood,dishwasher
Q1: How to choose a motor to match my machine?
A1: Please offer us the key parameters of the motor such as physical size (diameter, length, etc), torque, voltage, power consumption, etc. Feel free to reach out to us, we are very glad to help you if you are confused in selection.
Q2: Could you provide customized service?
A2: Yes, we can. All parameters can be customized according to your actual demands, for detailed information please contact us or leave a message.
Q3: Can I order samples first?
A3:We stock many of our standard models. If you would like to test samples first, we are glad to send you some. Of course we do not stock specialized motors. If you have special needs, please let us know.
Q4: How long is your delivery time?
|
|
