BL4645 High Efficiency Brushless DC Motor 5000rpm DC20V Low Noise For Smart Home

Masing Motor (Shenzhen) Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap BL4645 High Efficiency Brushless DC Motor 5000rpm DC20V Low Noise For Smart Home from wholesalers

    Buy cheap BL4645 High Efficiency Brushless DC Motor 5000rpm DC20V Low Noise For Smart Home from wholesalers
    • Buy cheap BL4645 High Efficiency Brushless DC Motor 5000rpm DC20V Low Noise For Smart Home from wholesalers
    • Buy cheap BL4645 High Efficiency Brushless DC Motor 5000rpm DC20V Low Noise For Smart Home from wholesalers
    • Buy cheap BL4645 High Efficiency Brushless DC Motor 5000rpm DC20V Low Noise For Smart Home from wholesalers
    • Buy cheap BL4645 High Efficiency Brushless DC Motor 5000rpm DC20V Low Noise For Smart Home from wholesalers

    BL4645 High Efficiency Brushless DC Motor 5000rpm DC20V Low Noise For Smart Home

    Ask Lasest Price
    Brand Name : Masing Motor
    Model Number : MSBL3626
    Certification : RohS,CE,ISO,16949
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1000000piece/per month
    Delivery Time : 3-5 work weeks
    • Product Details
    • Company Profile

    BL4645 High Efficiency Brushless DC Motor 5000rpm DC20V Low Noise For Smart Home

    Title:

    DC20v 5000rpm BL4645 Low Noise Long Life High Efficiency Brushless Dc Motor For Smart Home

    Description:

    • Voltage range:DC 8v-28V

    • Rated Speed:1000RPM-10000RPM or Customized

    • Rotating speed is constant and can be made as you required.

    • Rated torque :10gf.cm-500gf.cm

    • The torque of the motor is nronortional to the speed of the motor

    • Motor Size: φ46mm*L45mm,diameter 46 mm , Length 45mm DC brushless motor

    • Suitable to small diameter, low noise and big torque application

    • Direction of motor :CW&CCW available

    • Shaft diameter :φ5mm round or Customized

    • Shaft material:Carbon steel shaft, stainless steel shaft

    • Motor type :Brushless Motor or BLDC Motor

    • Can be match with wheel, One shaft one wheel or one motor, one wheel

    • Motor voltage speed torque eccentric wheel size and material can be customized according to customerrequirements.

    • Working temperature:-40~+60°c

    • Structure selection:Built-in driver or external driver

    • Widely used in :Robots, office supplies, power tools, medical equipment,precision instruments, automotive electronics,

      5G Base Station,Electric Curtain,Power Tools, Home Application, Personal Care,Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner

    • Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.

    • We can provide samples for your test.

    • Quality assurance: Each product must pass the quality inspection before shipping

    Key Attributes:

    Speed(RPM)
    5100RPM
    Continuous Current(A)
    10mA-500mA
    Efficiency
    74.3%
    Warranty
    Others
    Place of Origin
    Guangdong, China
    Brand Name
    Masing Motor
    Model Number
    MSBL4645
    Use

    Smart home, robots, office suppliers, precision instruments, automotive electronics, 5G Base Station,Electric Curtain,Robots,Cosmetic instrument, Smart Home, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner

    Motor Type
    Brushless Motor
    Rated Torque
    10gf.cm-500gf.cm or Customized
    Construction
    Permanent Magnet
    Commutation
    Brushless
    Protect Feature
    Totally Enclosed
    Product Name
    dc brushless fan motor 12v
    Direction of motor
    CW&CCW available
    Shaft diameter
    φ5mm round or Customized
    Motor Diameter
    φ46mm*L45mm
    Weight
    190g (Approx)
    Noise
    ≤55DB
    MOQ
    1000Pcs
    Rated Voltage
    8v-28v
    Color
    Customer's Request
    Motor type
    46mm brushless dc motor

    Product Photo:

    BL4645 High Efficiency Brushless DC Motor 5000rpm DC20V Low Noise For Smart HomeBL4645 High Efficiency Brushless DC Motor 5000rpm DC20V Low Noise For Smart Home

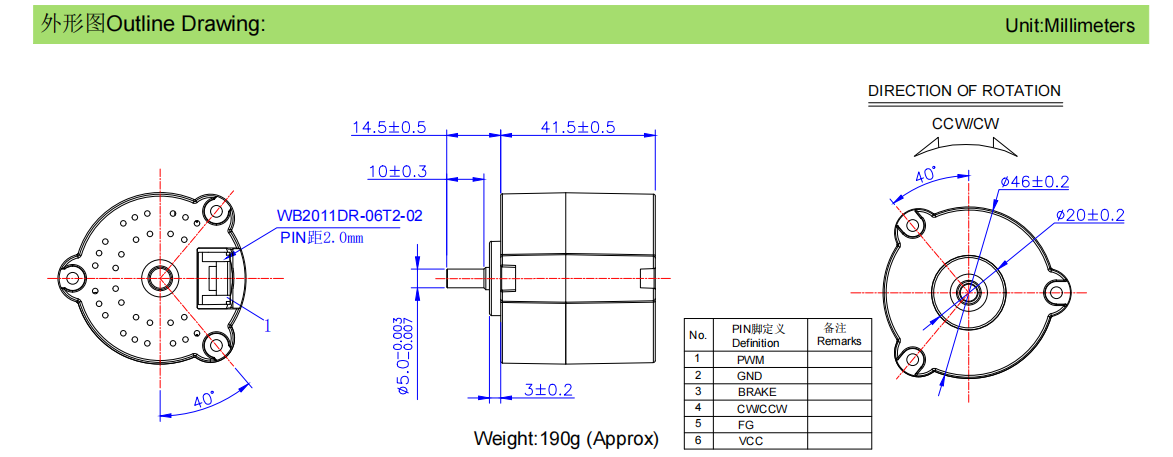

    Product Spec:

    BLDC 4645 Brushless DC Motor Typical Applications

    Smart home, robots, office suppliers, precision instruments, automotive electronics,5G Base Station,Electric Curtain,Power Tools, Home Application, Personal Care,Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner,sweeping robot,electric wheelchair,paper shredder ,lawn mower,range hood,dishwasher

    Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.

    BL4645 High Efficiency Brushless DC Motor 5000rpm DC20V Low Noise For Smart Home

    BL4645 High Efficiency Brushless DC Motor 5000rpm DC20V Low Noise For Smart Home

    Motor Data:

    Motor Model
    Voltage No Load At Maximum Efficiency Stall

    Operating
    Range

    Rated

    Current

    Speed

    Current

    Speed

    Torque

    Power

    Eficiency

    Current

    Torque
    A rpm A rpm g-cm W % A g-cm
    BL4645*** 8~28V 20V 0.30 5100 1.24 4130 435 18.4 74.3 5.21 2260

    Packaging and delivery:

    Packaging Details
    Strong Carton 200pcs/box, or as you wish.
    Port
    Shenzhen/Guangzhou/Shanghai
    Selling Units:
    Single item
    Single package size:
    37X27X24cm
    Single gross weight:
    190g (Approx)

    Supply Ability:

    Supply Ability
    100000 Piece/Pieces per Month

    Lead time:

    Quantity (pieces) 1 - 100 101 - 1000 > 5000
    Lead time (days) 10 15 To be negotiated

    Samples:

    Maximum order quantity: 1piece
    Sample price:

    $15/piece

    Certifications:

    BL4645 High Efficiency Brushless DC Motor 5000rpm DC20V Low Noise For Smart Home

    Factory Show:

    BL4645 High Efficiency Brushless DC Motor 5000rpm DC20V Low Noise For Smart Home

    Product Classification:

    BL4645 High Efficiency Brushless DC Motor 5000rpm DC20V Low Noise For Smart Home

    Applications:

    Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

    5G communication,Smart home,sweeping robot,electric wheelchair,paper shredder ,lawn mower,range hood,dishwasher

    BL4645 High Efficiency Brushless DC Motor 5000rpm DC20V Low Noise For Smart Home

    FAQ

    Q1: Are you a Manufacturer or a Trading Company?
    A1: We are a professional manufacturer with over 5 years of experience, and have a complete supply chain from parts processing to finished products.

    Q2: How is your Quality Control?
    A2: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.

    Q3: How about Sample order?
    A3:Sample is available for you. please contact us for details. Once we charge you sample fee,please feel easy, it would be refund when you place formal order.

    Q4: How long is the producing and shipping?

    A4: 1. Delivery timedepends on the quantity you order. usually it takes 7-15 working days.
    2. Regular type products can be shipped within 3 workingdays, and other customized samples can be shipped within 7-10 working days
    Q5: When will you reply after got my inquiries?
    A5: Ourcustomer service is online 24 hours, looking forward to your inquiry.
