Brushless Electric Motor 12V 24V Mini BLDC Motor High Speed For Automation Equipment

Ask Lasest Price
Brand Name :	Masing Motor
Model Number :	MSBL-2418
Certification :	ROHS CE ISO 16949
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	1000000piece/per month
Delivery Time :	3-5 work weeks

Add to Cart

Product Details
Company Profile

Brushless Electric Motor 12V 24V Mini BLDC Motor High Speed For Automation Equipment

Title:

DC Brushless Motor 12v 24v Micro Electric Engine 2418 With Hall Drive Board High Speed Mini BLDC Motor For Automation Equipment

Description:

Widely used in :Robot,Toys,FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment
Voltage range:6v-24V or customized
Speed:1000-10000RPM
Rotating speed is constant and can be made as you required.
Size: 24.4*15mm,diamter 24.4mm 18mm Length mini brushless motor
Suitable to small diameter, low noise and big torque application
Motor default direction:CW&CCW
Shaft material:Steel or Carbon steel shaft or customized
Shaft diameter :φ2.0mm
Shaft type:Round ,D-cut ,Flat ,with Hole ,Threaded shaft ,Threaded hole ect
Can be match with wheel, One shaft one wheel or one motor, one wheel
Working temperature:-40~+60°c
We can provide samples for your test.
Connection Mode:A
Clockwise Rotation/Counter Clockwise Rotation
Signal Function Available
PWM Countrol(Standard)
Locked Rotor Protection

Power :3W(Internal Drive)

Life Expectancy:3000H(Oil Bearing)

Key Attributes:

Speed(RPM)

1000-10000 rpm or customized

Continuous Current(A)

20-200mA

Efficiency

70%-90%

Warranty

Others

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

BLDC2418 Brushless DC Motor

Use

FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,Toys,Robots

Motor Type

Brushless Motor

Phases

3 phases 12 poles

Structure

Internal Drive

Commutation

Brushless

Protect Feature

Totally Enclosed

Signal

Signal Function Available

PWM

PWM Countrol(Standard)

Keywords

12v DC Brushless Motor

Shaft Diameter

φ2.0mm

Weight

15g

Noise

≤55DB

MOQ

1000Pcs

Life Expectancy

3000H(Oil Bearing)

Color

Customer's Request

Motor Size

Dia 24.4mm*18mm

Product Photo:

Brushless Electric Motor 12V 24V Mini BLDC Motor High Speed For Automation Equipment

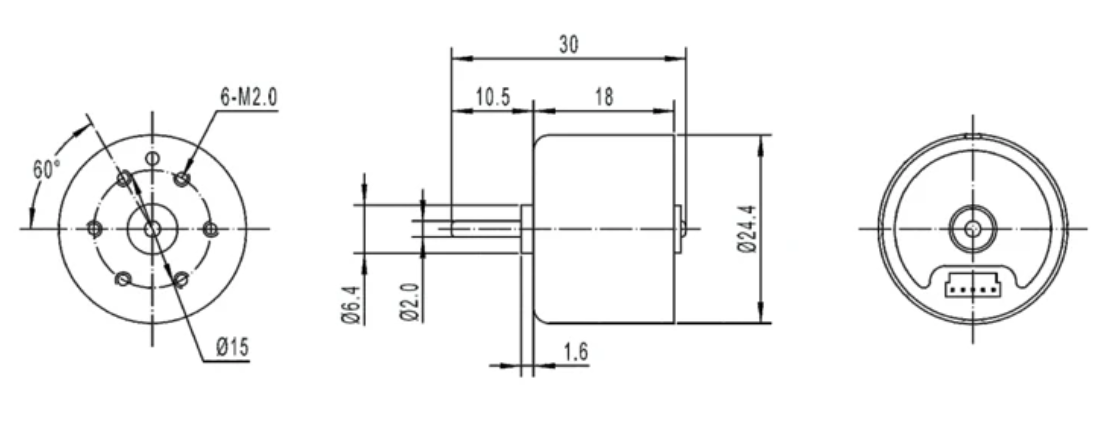

Product Spec:

BLDC 2415 Brushless Motor Typical Applications

● Toys,Robots, Robot vacuum cleaner,Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment

Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.

Motor Technical Data
Motor model	Rated voltage	No-load		Rated				Stall
	Rated voltage	Speed	Current	Speed	Torque	Current	Power	Torque	Current
	VDC	r/min	mA	r/min	g.cm	mA	W	g.cm	A
BLDC-2418-1262	12.0	6200	60	5100	20	180	1.05	110	0.7
BLDC-2418-2487	24.0	8700	50	7500	20	130	1.54	145	0.7

Brushless Electric Motor 12V 24V Mini BLDC Motor High Speed For Automation Equipment

Packaging and delivery:

Packaging Details

Strong Carton 250pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

8.0kg

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$8/piece

Certifications:

Factory Show:

Product Classification:

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home

FAQ

Q1: How to proceed an order for products?
A1: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Third customer confirms the samples and places deposit for formal order.
Fourth We arrange the production.

Q2: How about Sample order?
A2: Sample is available for you. Please contact us for details. Contact us

Q3: Which shipping way is avaliable?
A3: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.

Q4: How long is the deliver?
A4: Devliver time depends on the quantity you order. sually it takes 15-25 working days.

Q5:Do you offer a guarantee for the products?
A5: If you have any issue with our product, simply send us a message Contact us. Your problem will be solved within 7* 24 hours.And if there is quality problem for product,we will replenish for you.

Q6: How to confirm the payment?
A6: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
