Masing Motor (Shenzhen) Co., Ltd
1 Years
| Ask Lasest Price | |
| Brand Name : | Masing Motor |
| Model Number : | MSBL4020 |
| Certification : | 16949,RohS,CE,ISO |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 1000000piece/per month |
| Delivery Time : | 3-5 work weeks |
Title:
Custom 12V Low Speed Low Noise 3 Phase Brushless Dc Motor Outer Rotor With Encoder For PTZ Video Motor,Robot,Drone Camera Stabilizer, PTZ Electric Machine
Description:
Widely used in :PTZ Video ,Home Application, Personal Care,Cosmetic instrument, SMART HOME, Medical Imaging Equipment,
Drone Camera Stabilizer, PTZ Electric Machine ,Robots
Voltage Range:DC10v-24v,Rated voltage :DC12v
Voltage range:6v-24V
Direction of rotation:CW&CCW available
Speed:Adjustable speed motor 1000-10000RPM
The motor speed is proportional to the motor voltage
Motor Size: φ40*20mm,diamter 40mm ,20mm Length Low rpm brushless motor
Suitable to small diameter, low noise and big torque application
Working temperature:-10℃～+60℃
Shaft type :Hollow Shaft or Customized Shaft
Insulation Level:Class A
Life Test:5000 hrs (Min),Run Continuously at rated load
Structure selection:Built-in driver or external driver
Motor voltage speed torque eccentric wheel size and material can be customized according to customerrequirements.
Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltage may cause the machine to burn.
We can provide samples for your test.
Gimbal camera stabilizer industrial robot arm robotic arm
Product Photo:

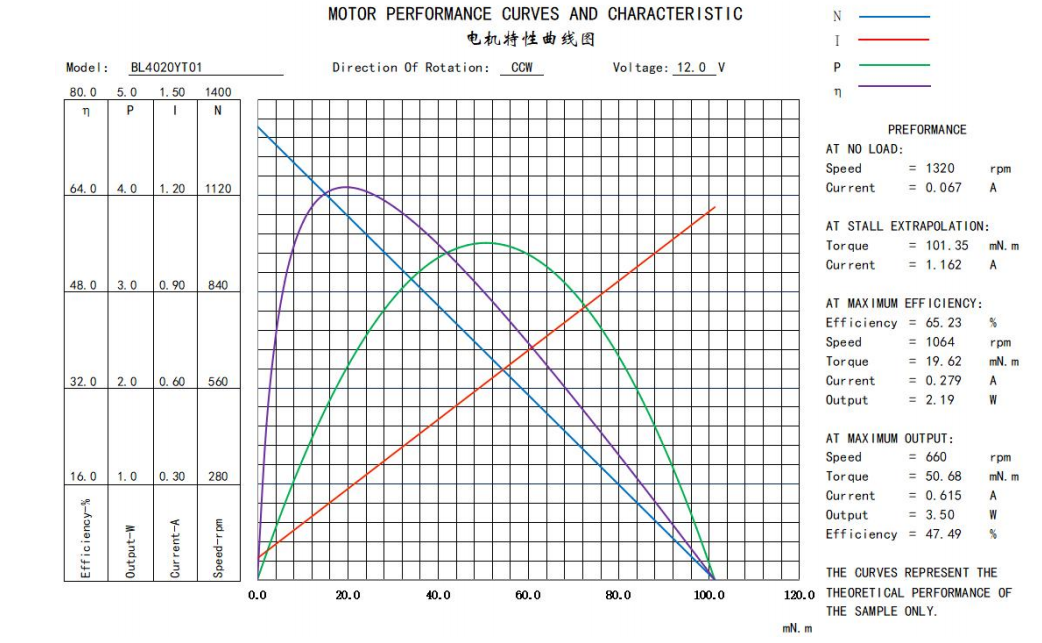

Product Spec:
BLDC 4020 Micro Brushless DC Motor Typical Applications
Panoramic camera ,Laser Lidar,UAV PTZ,Handheld PTZPTZ Video ,Home Application,
Personal Care,Cosmetic instrument, SMART HOME, Medical Imaging Equipment,
Drone Camera Stabilizer, PTZ Electric Machine ,Robots,robotic arm
Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.
Packaging and delivery:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 5000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$15/piece

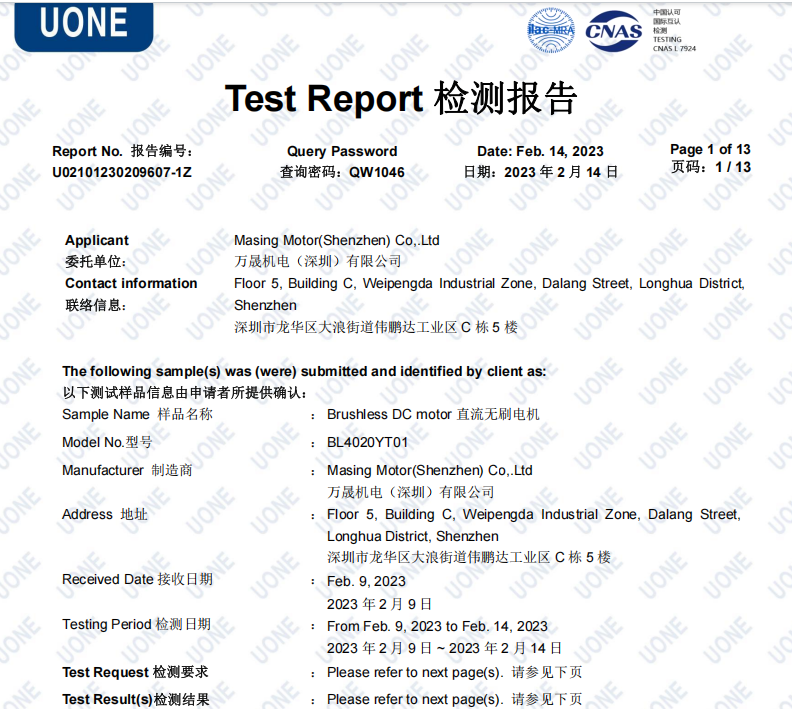

Certifications:
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,
5G communication,Smart home,robotic arm,PTZ Video ,Home Application, Personal Care,Cosmetic instrument, SMART HOME,
Medical Imaging Equipment,Drone Camera Stabilizer, PTZ Electric Machine ,Robots
Q1: What're your main products?
A1:We currently produce Brushed Dc Motors, Brushed Dc gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
A6:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
|
|
