Title:
1625 Motor 16mm micro Coreless Dc Motor High Efficiency Soltless Mini Coreless Motor For Medical Devices and Tattoo Machine
Description:
Motor model :MS1625 DC Coreless Motor
Voltage range:1.5V-12V
Speed:5000-40000RPM Customized
Rotating speed is constant and can be made as you required.
Motor default direction:CW&CCW available
Motor Size: φ16*25mm,just 16mm,diamter 25mm length micro coreless dc motor
Certification:ISO 9001/IATF16949/ROHS/CE/REACH
Shaft size :φ1.5mm ,Length :customized
Brush type:Metal brush or Carton Brush
Shaft material :Stainless steel or carbon steel
Motor life :500Hours -2000Hours
Magnetic material:Ordinary magnetic and strong magnetic
Suitable to small diameter, low noise and big toque application
Widely used in :Dental Hand Tools, Humanoid Robot, Small Medical Pumps, Lab Automation Electric toothbrush, massager, toy,Model trains ,Robots ,toy ,Vibration Instrument,Medical Devices and Tattoo Machine
Lightweight, and features high speed and low inertia. Its design with no core reduces weight and energy loss.
It shows quick response and stable performance. Widely used in various fields like electronics and robotics,
It offers efficient power output.
We can provide samples for your test.
Every product must pass 100% quality inspection before shipment

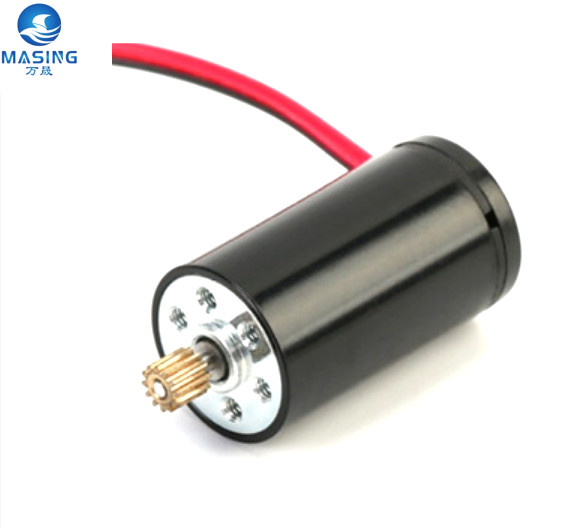

Product Photo:

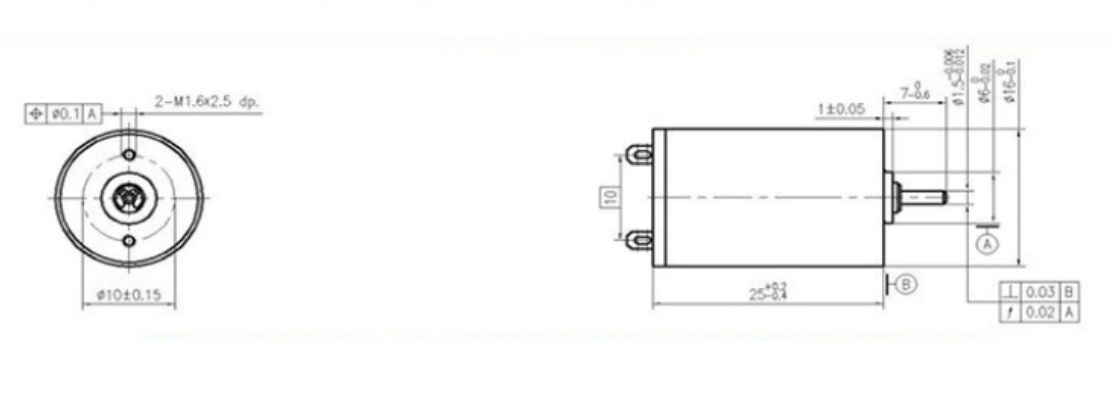

Product Spec:
1625 Micro Coreless DC Motor Typical Applications
Dental Hand Tools, Humanoid Robot, Small Medical Pumps, Lab AutomationToys,Massager,Beauty apparatus, Cosmetic Instrument, SMART HOME, Robot,Home Appliance, Cosmetic Instrument, SMART HOME, Robot
Remark:Voltage,rated torque,speed,curent.power and shaft sze can becustomized asrequirement.
| 016mm,precious metal brushes,sleeve bearing,with terminals/016mm | ||||||||
| 1625 Series | model | 2116A | 2112.A | 2212.A | 2209.A | 2207.A | 2206.A | |
| Motor data(25℃) | ||||||||
| 1Assigned power w | 1 | 0.7 | 0.9 | 0.8 | 0.6 | 0.7 | ||
| 2 Nominal voltage Vol | 3.6 | 4.5 | 6 | 9 | 12 | 18 | ||
| 3 Terminal resistance/ ±10% Ohm | 1.9 | 4.3 | 8.0 | 17.2 | 39.4 | 60.6 | ||
| 4No-Load speed/ ±10% rpm | 8,750 | 7,900 | 7,730 | 8,290 | 8.210 | 8,840 | ||
| 5 No-Load curren/ s125% mA | 38.1 | 21.6 | 12.8 | 8.4 | 5.7 | 5.5 | ||
| 6 Speed constan/ rpmM | 2,431 | 1,756 | 1,288 | 921 | 684 | 491 | ||
| 7 Torqueconstant/ mNm/A | 3.9 | 5.3 | 7.3 | 10.2 | 13.7 | 19.1 | ||
| 8 Starting curren/ mA | 1,905 | 1,056 | 750 | 523 | 305 | 297 | ||
| 9 Stall torque/ mNm | 7.3 | 5.6 | 5.5 | 5.3 | 4.2 | 5.7 | ||
| 10 Mechanical time constan/ ms | 11.9 | 10.1 | 15.8 | 12.1 | 13.4 | 13.8 | ||
| 11 Rotor inertia/ gcm | 0.7 | 0.5 | 0.8 | 0.7 | 0.6 | 0.5 | ||
| 12 Max.efficiency/ | 74 | 73 | 76 | 76 | 75 | 75 | ||
| 13 Inductance/ mH | 0.08 | 0.12 | 0.52 | 0.57 | 1.05 | 1.08 | ||
| 14Weight | 20 | 20 | 18 | 18 | 18 | 18 | ||
| Limits for continuous operation | ||||||||
| 15 Max.continuous current mA | 342 | 192 | 226 | 108 | 65 | 48 | ||
| 16 Max.continuous torque/ mNm | 1.3 | 1.0 | 1.6 | 1.1 | 0.9 | 0.9 | ||
| 17 Nominal speed/ rpm | 7,181 | 6,463 | 5,406 | 6,577 | 6.447 | 7.410 | ||
| 18 Max.continuous power/ w | 1.0 | 0.7 | 0.9 | 0.8 | 0.6 | 0.7 | ||
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$15/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,
Security monitoring,5G communication,Smart home,
Dental Hand Tools, Humanoid Robot, Small Medical Pumps, Lab Automation
Q1:Are you trading company or manufacturer ?
A1.Yes,We are manufacturer with more than 10 years’ experiences for motors.
Q2;Do you have certificates for your motor?
A2:Yes,we have 16949,CE,EU,Rohs,ISO,etc.If you have other certificates required,we can apply it foryou,but this should be charged
A4:We have 100%finished product inspection before delivery and no defective productsreturned.
Q5: Do you have an individual design service for motors?
A5: Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.
|
|
