Masing Motor (Shenzhen) Co., Ltd
1 Years
| Ask Lasest Price | |
| Brand Name : | Masing Motor |
| Model Number : | MS24BY48 |
| Certification : | ISO,CE,Rohs ,16949 |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 1000000piece/per month |
| Delivery Time : | 3-5 work weeks |
Title:
12v Dc Stepper Motor Customization 5V 24Byj48 4 Phase 5 Wire Bipolar Mini Stepper Gear Motor
Description:
Widely used in Stylus Printer, POS Terminal, Electronic Scale, Toy, Industrial Auto Control.Cosmetic instrument, SMART HOME,Robots
Voltage range:5V-12V
No-load Pull-in Frequency:≥500Hz
No-load Pull-out Frequency:≥1000Hz
Motor Model:24BY48 DC Stepper Motor
Suitable to small diameter, low noise and big toque application
Motor default direction:CW&CCW
Can be match with wheel, One shaft one wheel or one motor, one wheel
Working temperature:-10°C~45°C
Pull-in Torque:≥90mN.m(12VDC,400)
Detent Torque:≥50mN.m
Insulation Resistance:≥50MΩ 500VDC
Noise:≤40dB
We can provide samples for your test.
Rotating speed is constant and can be made as you required.
Product Photo:

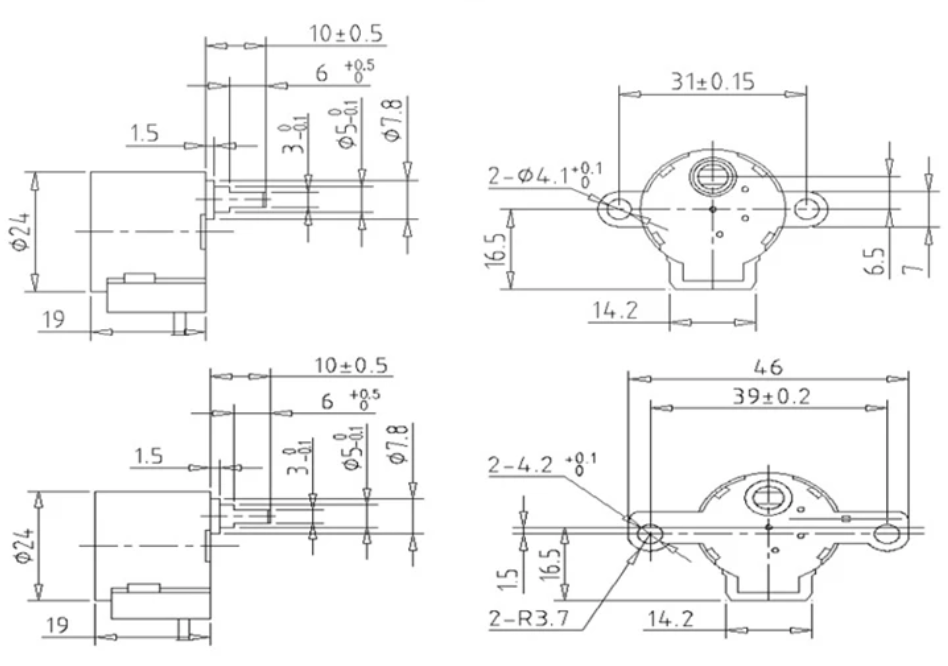

Product Spec:
24BY48 DC Stepper Motor Typical Applications
●Stylus Printer, POS Terminal, Electronic Scale, Toy, Industrial Auto Control.Cosmetic instrument, SMART HOME,Robots,Household Appliance, Office Equipment:Printer,Projector,Counting Machine,Robots,Wireless camera monitor PTZ
Smart toilet seat,Diverter valve,Air conditioning swing blade sweep motor
Remark:Voltage,rated torque,speed,curent.power and shaft sze can becustomized asrequirement.
| Iodel | Drive | Resistance | Operating | Puii-in | Detent | IarFreeload | IaxFreeload | Tenperaue | Noise | (1-2相) | insulation | |
| Voitage | 0/Phase | Frequency | Torque | torque | Puii-in | Puii-out | Rise | (dB) | Step Angie | Ciass | ||
| (DCV) | (at 25°C) | (PPS) | (mN.n) | (mN.m) | Frequency(pps) | Frequency(pps) | (K) | (1-2phase) | ||||
| 24BYJ48 | 5 | 20 | 100 | ≥68.8 | ≥49 | ≥800 | ≥900 | ≤45 | ≤40 | 5.625/16 5.625/25 5.625/32 | E | |
| 12 | 130 | 100 | ≥68.8 | ≥49 | ≥800 | ≥900 | ≤40 | ≤40 | ||||
| 12 | 200 | 100 | ≥58.8 | ≥39.4 | ≥800 | ≥900 | ≤35 | ≤40 | 5.625/64 5.625/90 11.25/64 | |||
| 24 | 300 | 100 | ≥49 | ≥39.4 | ≥800 | ≥900 | ≤40 | ≤40 | ||||
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$4/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,
Security monitoring,5G communication,Smart home
Q1: How can i get the price?
A1: We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
according to annual quantity. If you send us detailed requirements and annual quantity, you can get quick quotation.
|
|
