12V 24V 36mm BLDC Motor High Power 3650 Brushless Motor For Curtain And Pump

Ask Lasest Price
Brand Name :	Masing Motor
Model Number :	MSBL3650
Certification :	RohS,CE,ISO
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	1000000piece/per month
Delivery Time :	3-5 work weeks

Add to Cart

Product Details
Company Profile

12V 24V 36mm BLDC Motor High Power 3650 Brushless Motor For Curtain And Pump

Title:

Brushless DC Motor 12V24V 36mm BLDC Motor High Power 3650 Brushless Motor For Curtain And Pump

Description:

Forward and reverse functions:CW/CCW(Clockwise Rotation/Counter Clockwise Rotafion)
Signal output function:FGSignal
Pulse width speed regulation funtion:PWM Control
Protection :1.Locked RotorProtection 2.Overcurrent protection
Power:30w(Internal Drive) and 50w(Extnal Drive)
Motor life:-3000H(Oi Bearing) and ~5000H(BallBearing)
Connection Mode:B Model
Combination:Compatiblegear,encoder,Brakes
Applications :Toys,Massager ,Robot,Robot Vacuum Cleaner,Car flip screen,Intelligent Trash Can ,Power Tools, Home Application, Personal Care,Car, Electric Bicycle, FAN,, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,
Motor voltage speed torque eccentric wheel size and material can be customized according to customerrequirements.
Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.
Size: 36*57mm,diamter36 mm Length 57mm brushless motor
Suitable to small diameter, low noise and big torque application
Customizable: The motor is customizable to meet specific user needs, allowing for adjustments to be made to suit various applications, as requested by the user.
High Efficiency: The motor boasts an efficiency of IE 3, ensuring optimal energy usage and minimizing energy waste, as requested by users looking for eco-friendly options.
Working temperature:-40~+60°c
We can provide samples for your test.
Rotating speed is constant and can be made as you required.
Structure selection:Built-in driver or external driver

Key Attributes:

Speed(RPM)

2000-10000rpm

Continuous Current(A)

Customized

Efficiency

IE3

Warranty

Others

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MSBL-3650

Use

Robot Vacuum Cleaner,Cosmetic instrument, Smart Home, Medical Imaging Equipment,Toys,Massager

Shaft diameter

5mm or others

Torque

Customized 135-185gf.cm

Construction

Permanent Magnet

Commutation

24V BLDC Motor

Protect Feature

Totally Enclosed

Rotation

CW/CCW

Feature

High Efficiency

Keywords

12v Brushless Motor 3650

Diameter

36mm

Weight

190g

Noise

≤55DB

MOQ

1000Pcs

Voltage

6v-24v

Color

Customer's Request

Signal Output Function

FG Signal

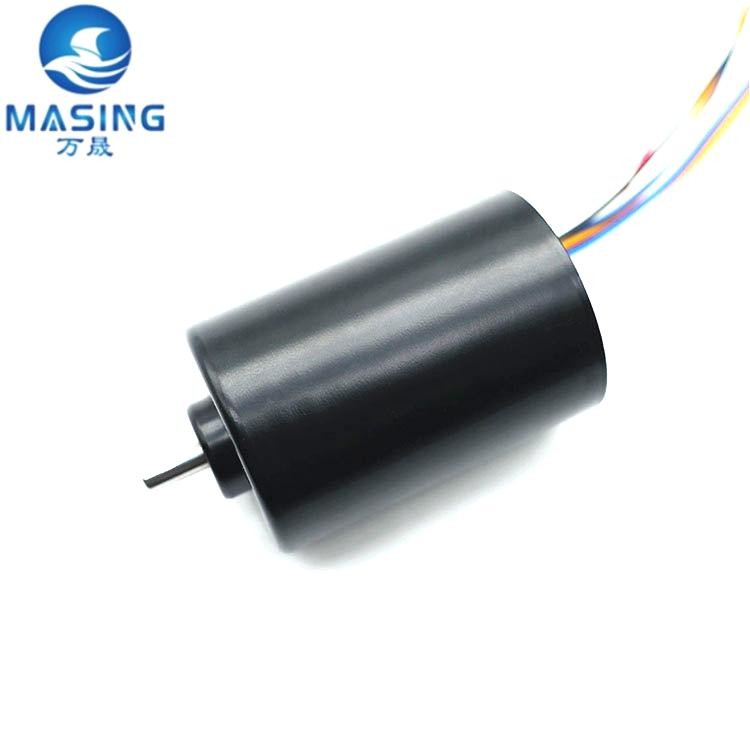

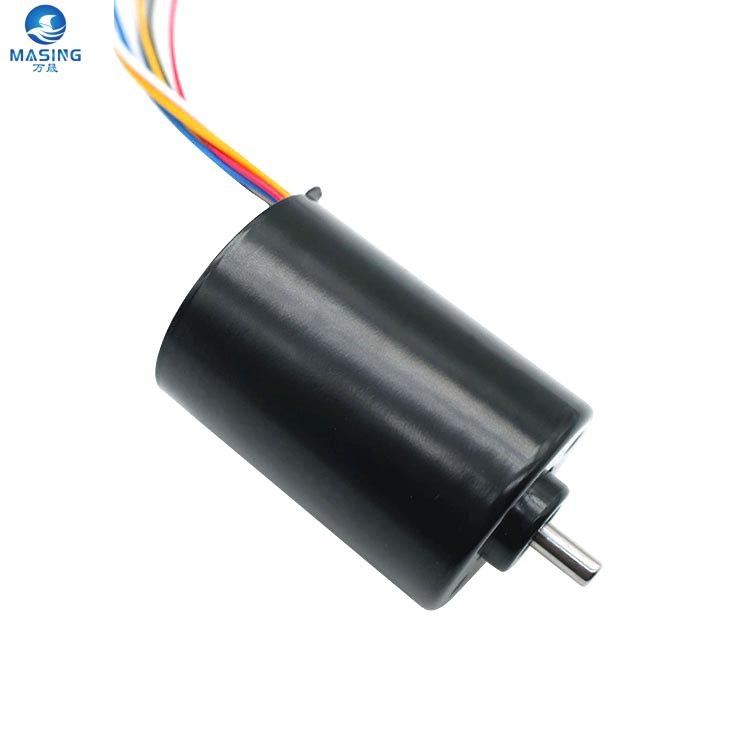

Product Photo:

12V 24V 36mm BLDC Motor High Power 3650 Brushless Motor For Curtain And Pump

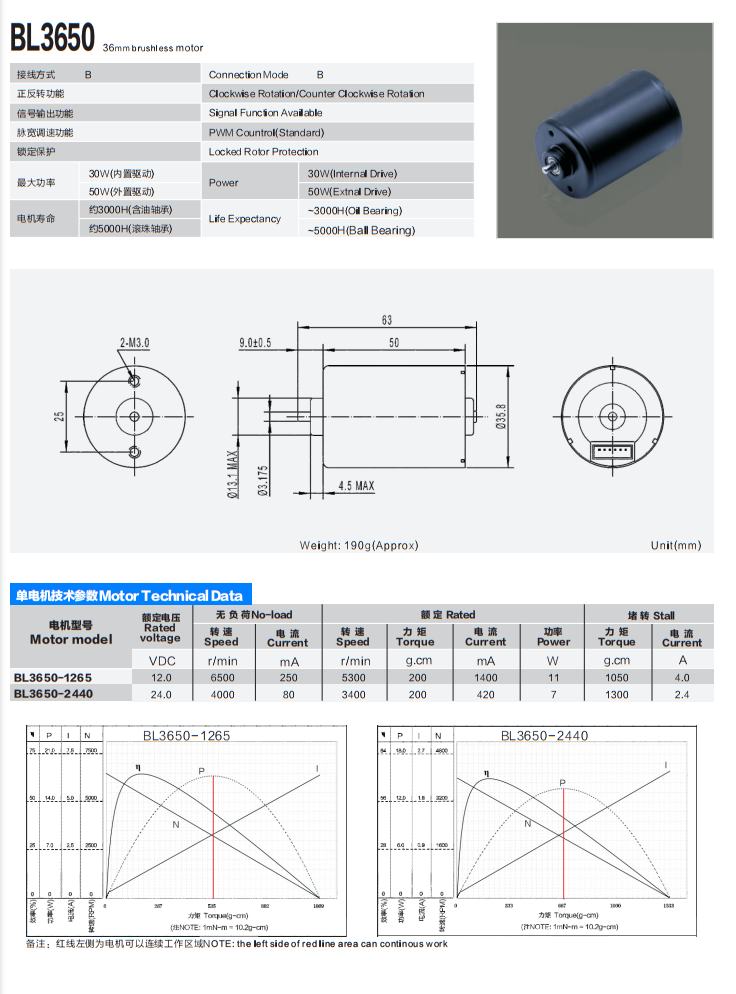

Product Spec:

BLDC 3650 Brushless DC Motor Typical Applications

● Toys,Massager ,Robot Vacuum Cleaner,Car flip screen,Intelligent Trash Can ,Power Tools, Home Application, Personal Care,Car, Electric Bicycle, FAN,, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,

Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.

NOTE:The left side of redline area can continous work

12V 24V 36mm BLDC Motor High Power 3650 Brushless Motor For Curtain And Pump

Packaging and delivery:

Packaging Details

Strong Carton 100pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

190g

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$15/piece

Certifications:

Factory Show:

Product Classification:

Applications:

Medical equipment	sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines	Intelligent robot,Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment	Electric toothbrush,Electric tool,Electric toy car,Electric curtain.
Smart Home	Intelligent window opener ,vacuum cleaner, Smart coffee machine,hair drier,Fascia gun,fan,air cleaner,Hair removal device,door lock,Intelligent door lock.
Food and Beverage	Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics	Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot.

FAQ

Q1: How can we get samples ?

A1:Normally ship samples by express(DHL/UPS/FEDEX/TNT)after we get your address in1day.

Q2: Can we test samples ?
A2: Yes,we have R&D and Testing Center,customized sample and freight are charged.

Q3: How to confirm the payment?
A3: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.

Q4: How long is the deliver?
A4: Devliver time depends on the quantity you order. sually it takes 15-25 working days.

Q5: Do you have discount ?
A5:We are factory and bave the most competitive price ,if your quantity is large ,we cannegotiate the price

Q6: Do you have certificates for your motor?
A6:Yes,we have CE,Rohs,EU,ISO,etc.If you have other certificates required,we can apply it foryou,but this should be charged.
