Title:
12v 24v 20mm Plastic Micro Gearbox Brushed Gear Motor For Logistics Industrial Robot And Hair Curler
Description:
High Efficiency and Performance: 1.2v-12v DC Spur Geared Motor offers an efficiency of 70%, ensuring optimal performance in various applications, including ,Logistics Industrial Robot And Hair Curler,SMART HOME,Electric Bicycle Lock,Cosmetic Instrument.
Speed:5rpm-1000RPM
Rotating speed is constant and can be made as you required.
Match Motor type : FF-130 /FF-180 dc brush motor ,Gearbox: 20 mm metal spur gear reducer;
Suitable to small diameter, low noise and big torque application
Motor default direction:CW&CCW
Can be match with wheel, One shaft one wheel or one motor, one wheel
Working temperature:-40~+60°c
We can provide samples for your test.
Many type products to choose
100% inspection before shipment
Good price and service
15 years experience in gear and motor design
Encoder : magnetic encoder available
Commutation: Carbon brush/Graphite brush/Metal brush;
Customizable Options: We offer various diameter options and a color that can be customized according to the user's request, allowing for flexibility in design and integration.
Durable and Long-Lasting: The motor's totally enclosed design provides protection from external factors, while the permanent magnet construction ensures a long lifespan and reliable operation.

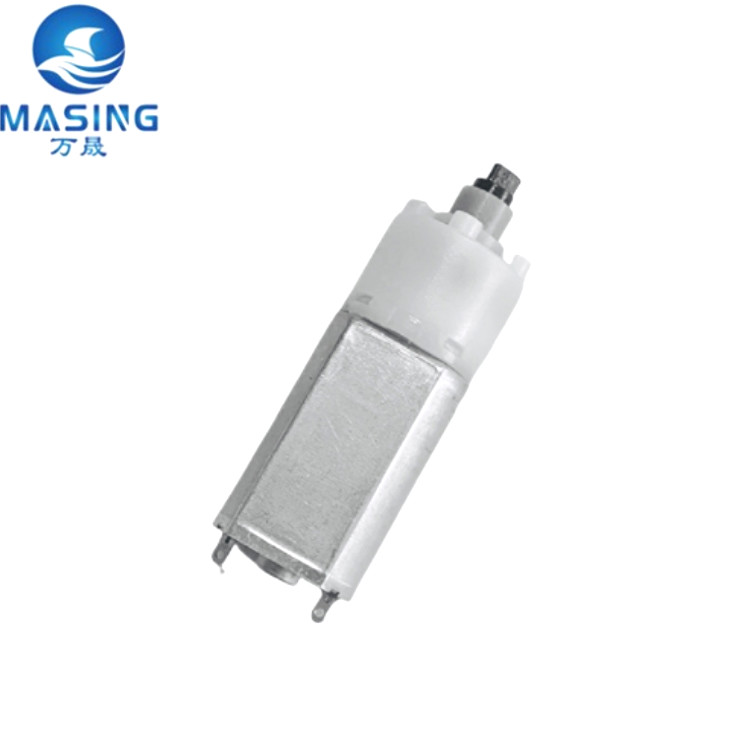

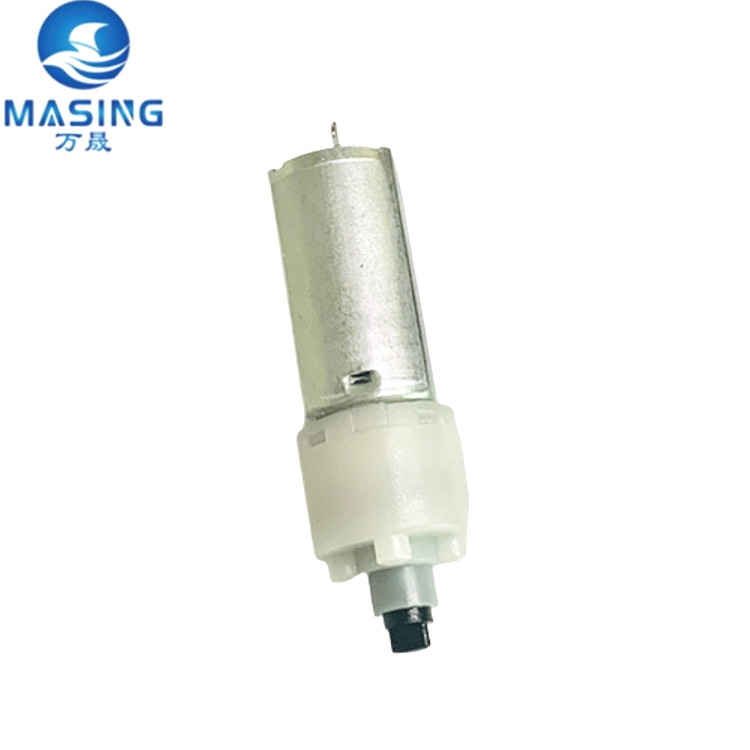

Product Photo:
Product Spec:
20mm DC Planetary Gear Motor Typical Applications:
Home Appliance,door-lock ,robots ,SMART HOME,Electric Bicycle Lock,Cosmetic Instrument.,Logistics Industrial Robot And Hair Curler
Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.
| Model | VOLTAGE | No-Load | On-Load | Stall | ratio | Gearbox Length(L) | Motor | Motor Length(L | ||||||||
| Speed | Current | Speed | Current | torque | torque | current | ||||||||||
| V | r/min | A | r/min | A | mN.m | Kg.cm | mN.m | Kg.cm | A | mm | mm | |||||
| MS-20P130-10 | 12 | 750 | 0.060 | 525 | 0.136 | 7.4 | 0.08 | 14.8 | 0.15 | 0.3 | 10 | 17.3 | 130 | 25.1 | ||
| MS-20P130-12.5 | 12 | 600 | 0.060 | 420 | 0.136 | 9.3 | 0.09 | 18.6 | 0.19 | 0.3 | 12.5 | 17.3 | 130 | 25.1 | ||
| MS-20P130-25 | 12 | 300 | 0.060 | 210 | 0.136 | 18.6 | 0.19 | 37.2 | 0.38 | 0.3 | 25 | 17.3 | 130 | 25.1 | ||
| MS-20P130-31 | 12 | 242 | 0.060 | 169 | 0.136 | 23.1 | 0.24 | 46.2 | 0.47 | 0.3 | 31 | 17.3 | 130 | 25.1 | ||
| MS-20P130-50 | 12 | 150 | 0.067 | 105 | 0.151 | 30.2 | 0.31 | 60.4 | 0.62 | 0.3 | 50 | 17.3 | 130 | 25.1 | ||
| MS-20P130-57 | 12 | 132 | 0.067 | 92 | 0.151 | 30.2 | 0.31 | 60.4 | 0.62 | 0.3 | 57 | 17.3 | 130 | 25.1 | ||
| MS-20P130-62 | 12 | 121 | 0.067 | 85 | 0.151 | 46.1 | 0.47 | 92.2 | 0.94 | 0.3 | 62 | 17.3 | 130 | 25.1 | ||
| MS-20P130-78 | 12 | 96 | 0.067 | 67 | 0.151 | 50.2 | 0.51 | 100.4 | 1.02 | 0.3 | 78 | 17.3 | 130 | 25.1 | ||
| MS-20P130-103 | 12 | 73 | 0.067 | 51 | 0.151 | 76.6 | 0.78 | 153.2 | 1.56 | 0.3 | 103 | 19 | 130 | 25.1 | ||
| MS-20P130-107 | 12 | 70 | 0.067 | 49 | 0.151 | 79.6 | 0.81 | 159.2 | 1.62 | 0.3 | 107 | 19 | 130 | 25.1 | ||
| MS-20P130-125 | 12 | 60 | 0.067 | 42 | 0.151 | 90.5 | 0.92 | 226.2 | 2.31 | 0.3 | 125 | 19 | 130 | 25.1 | ||
| MS-20P130-144 | 12 | 52 | 0.067 | 36 | 0.151 | 90.5 | 0.92 | 226.3 | 2.31 | 0.3 | 144 | 19 | 130 | 25.1 | ||
| MS-20P130-156 | 12 | 48 | 0.075 | 34 | 0.170 | 92.5 | 0.94 | 277.5 | 2.83 | 0.3 | 156 | 19 | 130 | 25.1 | ||
| MS-20P130-195 | 12 | 38 | 0.075 | 27 | 0.170 | 99.2 | 1.01 | 297.6 | 3.03 | 0.3 | 195 | 19 | 130 | 25.1 | ||
| MS-20P130-250 | 12 | 30 | 0.075 | 21 | 0.170 | 125.5 | 1.28 | 376.5 | 3.84 | 0.3 | 250 | 20.5 | 130 | 25.1 | ||
| MS-20P130-268 | 12 | 28 | 0.075 | 20 | 0.170 | 145.8 | 1.49 | 437.4 | 4.46 | 0.3 | 268 | 20.5 | 130 | 25.1 | ||
| MS-20P130-313 | 12 | 24 | 0.075 | 17 | 0.170 | 150.3 | 1.53 | 450.9 | 40 | (.3 | 313 | 20.5 | 150 | 25.1 | ||
| MS-20P130-391 | 12 | 19 | 0.086 | 13 | 0.194 | 163.5 | 1.67 | 572.3 | 5.84 | 0.3 | 391 | 20.5 | 130 | 25.1 | ||
| MS-20P130-488 | 12 | 15 | 0.086 | 11 | 0.194 | 185.8 | 1.89 | 650.3 | 6.63 | 0.3 | 488 | 20.5 | 130 | 25.1 | ||
Packaging and delivery:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$5/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,
5G communication,Smart home,door-lock ,robots ,Electric Bicycle Lock,Cosmetic Instrument.
Q1:Are you factory ?
A1:Yes,we are factory..Main product including micro geared motor,brushless DC motor,DC motor and DC planetary gear box ect.
Q2: What is the quality of the planetary reducer?
A2:At present, our gear motors have been sold to Japan, Germany, the United States, the United Kingdom, Indonesia, Singapore and other countries Most customers will give me feedback, saying that they operate well, have low noise and large torque, which is exactly the product they are looking for I think this should be the best word of mouth for our products
A3:Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order
|
|
